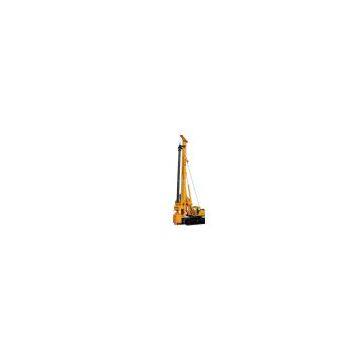

Rotary Drilling Rig XR360

Rotary Drilling Rig

Rotary drilling rig is suitable for building into a hole in the foundation engineering construction machinery operations. Mainly for sand, clay, silty soil and other soil construction in the building, railway, bridge piles, diaphragm wall, foundation reinforcement and other foundation construction has been widely used. Our rotary drilling rig dedicated application of mature technology to produce the chassis, strong box-type boom, with superior stability; selection of imported EFI turbocharged engine, powerful, low noise, low emissions; the use of stable, reliable, high performance of the international brand hydraulic systems and hydraulic components, into the hole of good quality, safe, reliable, cost-effective.


Model
 XR360
Engine Model

 CUMMINS QSM11-C400

Rated Power
 kW
 298

Power head
 Maximum output torque
 kN.m
 360

Speed
 r / min
 7 ~ 20

Maximum hole diameter
 mm
 φ2500

Maximum drilling depth
 m
 Standard 80 (friction 5)

m
 Option 96 (friction 6)

m
 Option 62 (machine lock 4)

Pressurized cylinder
 Maximum pressure increases
 kN
 240

Maximum lifting force
 kN
 220

Stroke
 m
 6

Main Winch
 Maximum lifting force
 kN
 320

Pulling speed
 m / min
 72

Auxiliary hoist
 Maximum lifting force
 kN
 100

Pulling speed
 m / min
 65

Mast inclination lateral / forward / backward
 ± 4 ° / 5 ° / 15 °

Chassis
 Maximum travel speed
 km / h
 1.5

Gradeability
 %
 35

Minimum ground clearance
 mm
 445

Shoe width
 mm
 800

Maximum total width of track
 mm
 3500 ~ 4800

Hydraulic System
 Working pressure Mpa
 32

Quality of work machine
 t
 92

Dimensions
 Working condition
 mm
 10180 × 4800 × 24530

Transportation Status
 mm
 17380 × 3500 × 3807
