Home > Products > Trenchless Horizontal Directional Drilling > Trenchless Horizontal Directional Drilling

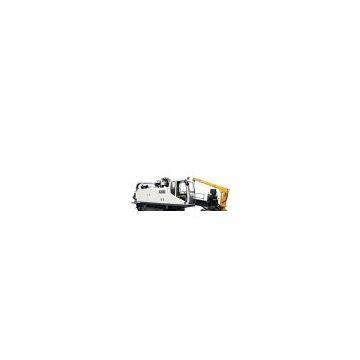

Trenchless Horizontal Directional Drilling
US$ 3500000 - 3500000
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
Product Details
| Brand Name | The world (well-known trademarks) | Place of Origin | China | |
| Model Number | CX680 |
Product Description
Horizontal directional drilling is not digging the ground surface conditions, the laying of a variety of underground utilities (pipelines, cables, etc.) of a construction machinery, it is widely used in water supply, electricity, telecommunications, natural gas, coal gas and oil pipelines and other municipal laying construction for sand, clay, gravel, etc. conditions, most non-hard rock areas can be construction. Horizontal directional drilling technology is the oil industry directional drilling technology and the traditional pipeline construction methods combined with the construction of a new technology, it has the speed of construction, the construction of high precision, low cost, without damaging the environment and so on. Our advanced horizontal directional drilling performance, high efficiency, ease of operation, key components of international support, is ideal for construction equipment.
Model XZ680
Project
Unit
Parameter
Engine
Factory
Chongqing Cummins
Model
NTA855-C335
Rated Power
kW / rpm
250/2100
Push-pull
Type
Four + four motor-driven rack and pinion gear
Biggest pullback / feed force
kN
680/680
Power head speed
m / min
0 ~ 23
Rotation
Type
Dual-motor drive gear
Maximum torque power head
N.m
27000
Power head speed
r / min
0 ~ 100
Diameter
mm
φ102
Length (single)
m
6
Rigs
Type
Sliding box rigs, away platen
Adjusting the angle
°
10 ~ 18
Crane
Type
Full rotary telescopic crane arm
Maximum lift quality
t
2
Travel drive
Type
Steel tracked self-propelled
Walking speed
km / h
2.5
Mud
Flow
L / min
600
Cab
Single
Dimensions
mm
11000 × 2800 × 3300
Weight
t
22
