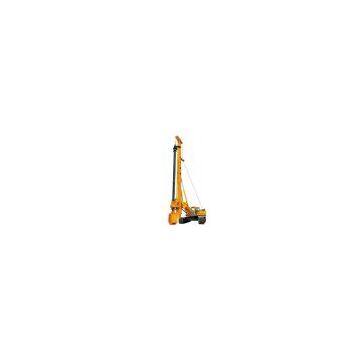

Rotary Drilling Rig 680

Rotary Drilling Rig

Rotary drilling rig is suitable for building into a hole in the foundation engineering construction machinery operations. Mainly for sand, clay, silty soil and other soil construction in the building, railway, bridge piles, diaphragm wall, foundation reinforcement and other foundation construction has been widely used. Our rotary drilling rig dedicated application of mature technology to produce the chassis, strong box-type boom, with superior stability; selection of imported EFI turbocharged engine, powerful, low noise, low emissions; the use of stable, reliable, high performance of the international brand hydraulic systems and hydraulic components, into the hole of good quality, safe, reliable, cost-effective.

Model
 XRS680
Engine Model

 WP10.290

Rated Power
 kW
 213

Power head
 Maximum output torque
 kN.m
 200

Speed
 r / min
 7 ~ 26

Maximum hole diameter
 mm
 Φ2000

Maximum drilling depth
 m
 Standard 67.5 (friction 5) Option 53 (machine lock 4)

Pressurized cylinder
 Maximum pressure
 kN
 200

Maximum lifting force
 kN
 200

Stroke
 m
 5

Main Winch
 Maximum lifting force
 kN
 190

Pulling speed
 m / min
 65

Auxiliary hoist
 Maximum lifting force
 kN
 80

Pulling speed
 m / min
 60

Mast tilt angle roll / forward / backward
 ± 4 ° / 5 ° / 15 °

Chassis
 Maximum speed
 km / h
 1.5

Gradeability
 %
 35

Minimum ground clearance
 mm
 468

Shoe width
 mm
 800

Maximum track width
 mm
 3500 ~ 4400

Hydraulic System
 Working pressure Mpa
 32

Quality of work machine
 t
 70

Dimensions
 Working condition
 mm
 10260 × 4400 × 22120

Transportation Status
 mm
 16355 × 3500 × 3457
