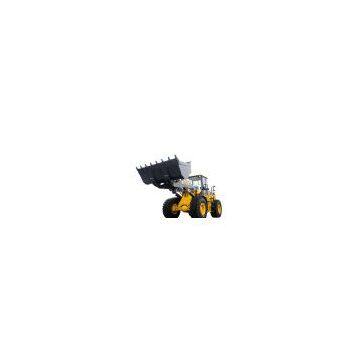

Loader is a widely used in highway, railway, construction, utilities, ports, mines and other construction projects, earthwork construction machinery, mainly for the shovel of soil, sand, lime, coal and other bulk materials, but also of the ore, slightly hard soil such as a shovel digging operations. We loader now has F, K and G three series, more than a dozen types of products. Distortion products are coal type, rock type, plateau and can be adapted to a variety of steel type and other conditions, both the clamp, slide the fork, snow plow, grass etc. grasping for users to choose different deformation equipment used. 1999 China's first successful development of the leading domestic and international level of the third generation of synchronous loaders, end loaders end to our dependence on imported completely, set off a technological revolution in Chinese industry. In recent years, internally and externally in the production loader, has made covering parts, transmissions and other components of a major breakthrough in quality, product sales continued to rise. We are very service-oriented brand creation in the country throughout the service, spare parts outlets, professional services and depth of services to the forefront of the industry.

Item Unit Parameter
Rated load kg 5000
Bucket capacity m3 3.0
Dump height mm 3090
Unloading distance mm 1130
Lifting height mm 5254
Bucket Width mm 3000
Max breakout force kN 170
Maximum traction force kN 175
Hinge angle ° ± 38
Overall dimension L × W × H mm 8185 × 3000 × 3465
Weight t 17.2
Boom lifting time s 6
And three time s 11
Wheelbase mm 3300
Wheelbase mm 2250
Gradeability ° 30
Minimum turning radius (tire center) mm 5925
Minimum turning radius (outside bucket) mm 6910

Engine
Model WD10G220E23
Type 6-cylinder inline, water-cooled, 4-stroke, direct injection engine
Cylinders - Cylinder × stroke 6X130
Maximum torque of 900N. m
Rated power / speed 162kW/2000r/min
The lowest fuel consumption rate 198g/kw. h
Optional power SC9D220 · 2G2
Transmission
The form of single-stage torque converter four-element phase
Torque variation coefficient 4.32
The form of planetary gear speed, multi-plate clutch, power shift, forced lubrication.
Ⅰ stall speed (front / rear) Ⅱ file (before) 0 ~ 11 / 0 ~ 13km / h
0 ~ 36 km / h
Drive axle four-wheel drive, front axle fixed, rear axle to the swing bridge can swing ± 12 °
Tire Size 23.5-25-16PR
Front air pressure 0.30-0.32MPa
Rear air pressure 0.27-0.29MPa
Hydraulic System
System working pressure 17.5MPa
Boom Cylinder - Bore × stroke Ø160X840
Dump Cylinder - Bore × stroke Ø180X585
Steering system
Safety valve set pressure 16MPa
Steering Cylinder - Bore × stroke Ø90X375
Brake System
Brake caliper disc brakes gas cap oil
Parking brake and emergency brake control shaft, within the up shoe
Capacity data
Fuel tank 295L
Cooling System 45L
Diesel engine crankcase 19L
Torque converter transmission system 45L
Drive axle 27L
Hydraulic System 200L

With advances in technology, product structure, the parameter will continue to improve, without notice. Slightly with the kind of information does not match the sample in order to prevail in kind
