Construction / Mechanical / Rotary Drilling Rig
US$ 5800000 - 5800000
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | The world (well-known trademarks) | Place of Origin | China | |
| Model Number | 230c |
Product Description

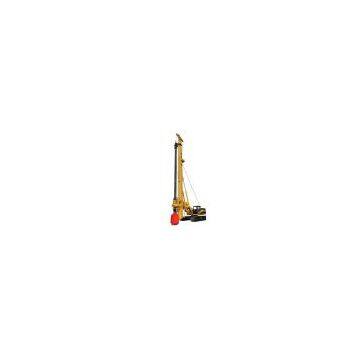

Rotary Drilling Rig
Rotary drilling rig is suitable for building into a hole in the foundation engineering construction machinery operations. Mainly for sand, clay, silty soil and other soil construction in the building, railway, bridge piles, diaphragm wall, foundation reinforcement and other foundation construction has been widely used. Application of our proven technology of rotary drilling rig manufacturing special chassis, strong box-type boom, with superior stability; selection of imported EFI turbocharged engine, powerful, low noise, low emissions; the use of stable, reliable, high performance of the international brand hydraulic systems and hydraulic components, into the hole of good quality, safe, reliable, cost-effective.
Model
XR230C
Engine Model
CAT C9
Rated Power
kN
261
Power head
Maximum output torque
kN.m
230
Speed
r / min
23
Maximum hole diameter
mm
Φ2000/Φ2200 (especially with a small diamond drill + dismantle masts)
Maximum drilling depth
Drilling diameter Φ2000
m
Standard 67 (wear resistance 5) Option 80 (wear resistance 5)
Drilling diameter Φ2200
Especially with the 60 (-friction 5)
Pressurized cylinder
Maximum pressure
kN
200
Maximum lifting force
kN
200
Stroke
m
5.0
Main Winch
Maximum lifting force
kN
230
Pulling speed
m / min
65
Auxiliary hoist
Maximum lifting force
kN
80
Pulling speed
m / min
65
Mast tilt angle roll / forward / backward
± 5 ° / 5 ° / 15 °
Chassis
Maximum speed
km / h
2.1
Gradeability
%
35
Minimum ground clearance
mm
395
Shoe width
mm
800
Maximum track width
mm
3000 ~ 4300
Hydraulic System
Working pressure Mpa
35
Quality of work machine
t
72
Dimensions
Working condition
mm
8735 × 4300 × 21927
Transportation Status
mm
16155 × 3000 × 3445
Rotary drilling rig is suitable for building into a hole in the foundation engineering construction machinery operations. Mainly for sand, clay, silty soil and other soil construction in the building, railway, bridge piles, diaphragm wall, foundation reinforcement and other foundation construction has been widely used. Application of our proven technology of rotary drilling rig manufacturing special chassis, strong box-type boom, with superior stability; selection of imported EFI turbocharged engine, powerful, low noise, low emissions; the use of stable, reliable, high performance of the international brand hydraulic systems and hydraulic components, into the hole of good quality, safe, reliable, cost-effective.
Model
XR230C
Engine Model
CAT C9
Rated Power
kN
261
Power head
Maximum output torque
kN.m
230
Speed
r / min
23
Maximum hole diameter
mm
Φ2000/Φ2200 (especially with a small diamond drill + dismantle masts)
Maximum drilling depth
Drilling diameter Φ2000
m
Standard 67 (wear resistance 5) Option 80 (wear resistance 5)
Drilling diameter Φ2200
Especially with the 60 (-friction 5)
Pressurized cylinder
Maximum pressure
kN
200
Maximum lifting force
kN
200
Stroke
m
5.0
Main Winch
Maximum lifting force
kN
230
Pulling speed
m / min
65
Auxiliary hoist
Maximum lifting force
kN
80
Pulling speed
m / min
65
Mast tilt angle roll / forward / backward
± 5 ° / 5 ° / 15 °
Chassis
Maximum speed
km / h
2.1
Gradeability
%
35
Minimum ground clearance
mm
395
Shoe width
mm
800
Maximum track width
mm
3000 ~ 4300
Hydraulic System
Working pressure Mpa
35
Quality of work machine
t
72
Dimensions
Working condition
mm
8735 × 4300 × 21927
Transportation Status
mm
16155 × 3000 × 3445
