iECHO cnc composites cutting machine
- 130 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | iECHO | |
| Model Number | BKL | Condition | New | |
| After-sales Service Provided | Overseas service center available |
Product Description

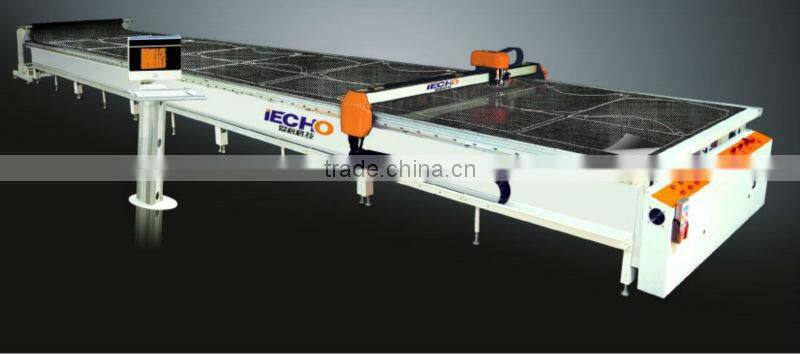

iECHO cnc composites cutting machine
The maximum effective cutting width is 5-meter,the maximum effective cutting length can reach 50-meter,it is largest cutting system in China
Parameters :
Max. Speed | 1.8m/s |
Max. Acceleration | 0.5g |
Max. Cutting Pressure | 0.7MPa |
Tool Types | 5 Choices |
Accuracy | <±0.2mm |
Max. Cutting Thickness | 8mm |
Data Format | DXF, HPGL |
Interface | Internet, USB |
Driver | Servo Motor |
Cutter approaching | Initiative |
Medium Adsorption | Vacuum |
Voltage | 220V/380V,50HZ, 15KW |
Environment | Temperature: 0-50 Humidity: 20%-80%RH |

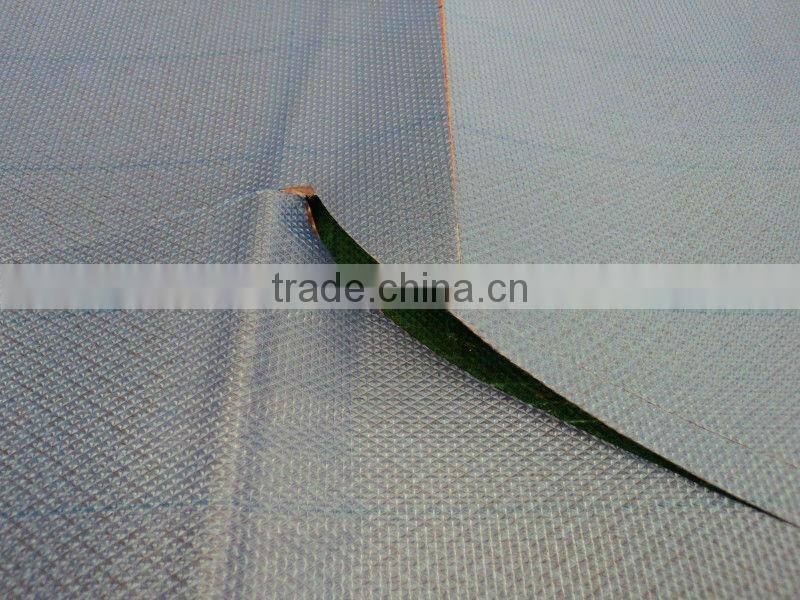

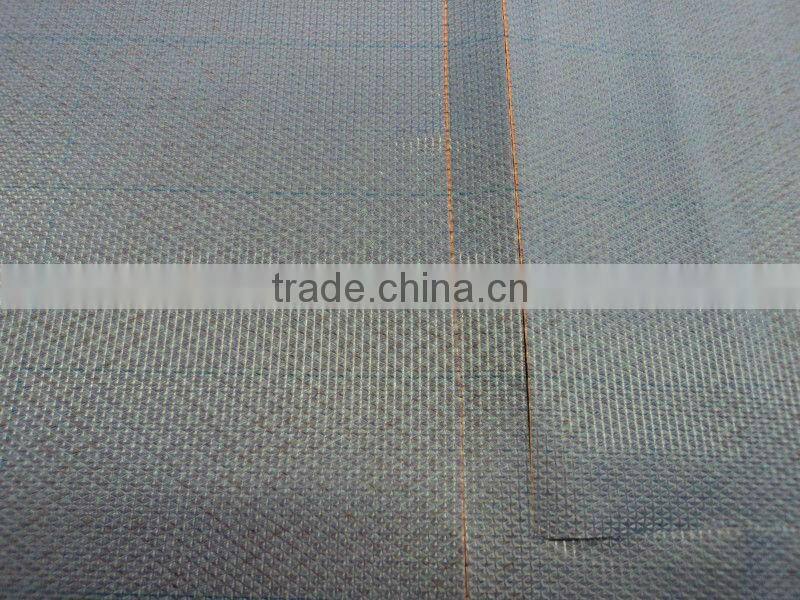

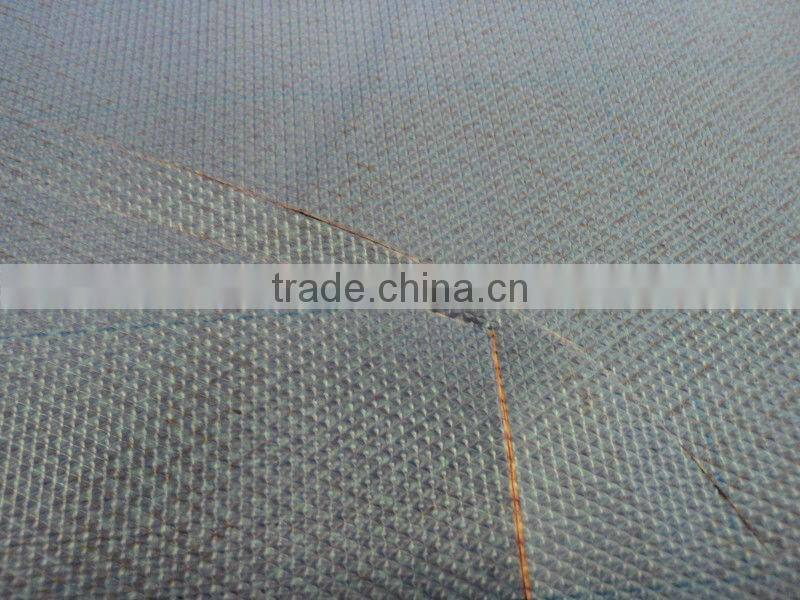

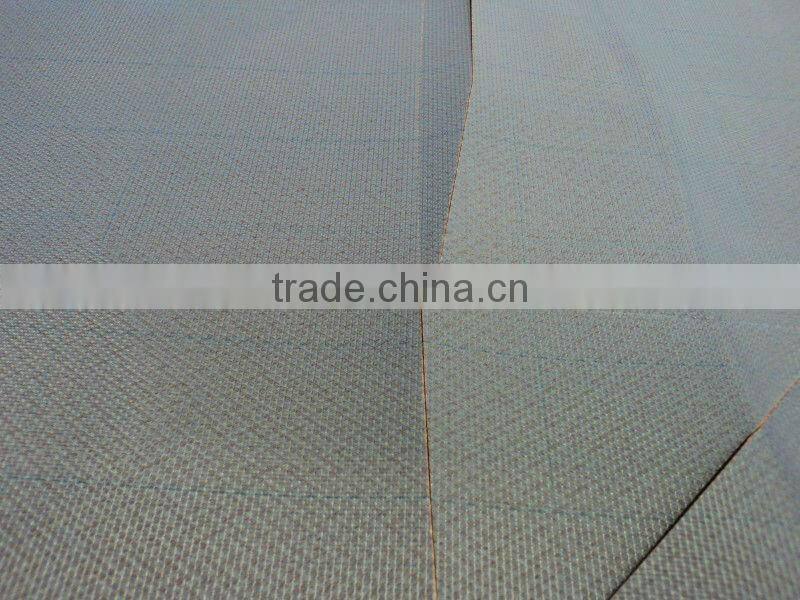

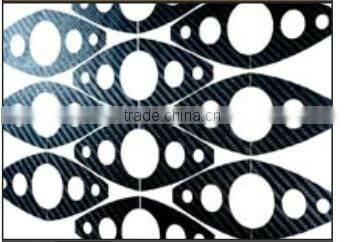

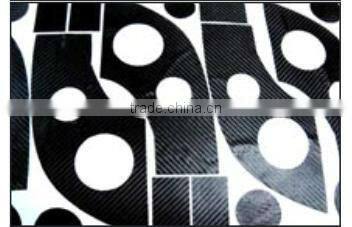

Carbon fiber, glass fiber
Cutting Width
1.1m-5m (Max 5m) | |
Cutting Length | 1.6m-50m (Max 50m) |
Max Cutting Speed | 1800mm/s |
Acceleration | 1g |
Cutting Tools | Five, Optional |
Cutting Accuracy | 0.2mm |
Max Cutting Thickness | 8mm |
Data Format | DXF,HPGL |
Interface | Internet,USB |
Driver | Servo Motor |
Media | Vacuum System |
Power | 220V/50HZ 380V/50HZ |
Operating Environment | Temperature 0°C-40°C Humidity 20%-80%RH |
Product Feature:
(1) Incomparable cutting speed, high repeatability and cutting precision.
(2) Powerful nesting system can save material greatly to enhance the production efficiency.
(3) Five cutting Tools (Pen, Rotary knife, Tangent knife, Punching knife and Notch knife), can fulfill to cut different materials by adjusting the knives quickly.
(4) Flexible adsorption functions by adsorbing different areas to improve the vacuum adsorbing ability.
(5) Powerful flexible cutting heads can cut different materials to ensure the cutting precision, and meet the customers’special requirements.
(6) This equipment is easy to operate, more humanized and intelligent.
(7) Powerful SmartCutAutoPlot can compete with most CADs.
(8) SmartCutAutoPlot has the function of automatically recognize the pattern, cutting path optimization, specified the cutting tools, and set the cutting length, and over-cut, to support the cutting machine to achieve the best cutting result.
