Home > Products > drilling machine > the Hot Sale and Low Cost Low Price Radial Drilling Machine RD3207/RD3207P of China of SMAC
the Hot Sale and Low Cost Low Price Radial Drilling Machine RD3207/RD3207P of China of SMAC
- shanghai.china
- T/T L/C D/P D/A
You May Like
-
the Hot Sale and Low Cost China High Speed Radial Drilling Machine ZQ3050*16 of China of SMAC
-
the Best Sale and Low Cost Chinese Frequency Conversion Radial Drilling Machine ZB3080*25 of China of SMAC
-
the Hot Sale and Low Cost Radial Drilling Machine RD8020 of China of SMAC
-
the Best Sale and Low Cost China Frequency Conversion Radial Drilling Machine ZB3080*20 of China of SMAC
-
the Hot Sale and Low Cost New Multi Spindles Machine RD4016 of SMAC of China
-
the Best Sale and Low Cost New Frequency Conversion Radial Drilling Machine ZB3060*16 of China of SMAC
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | SMAC | |
| Model Number | RD3207/RD3207P | Voltage | 380V | |
| Power(W) | 0,75kw | Dimension(L*W*H) | 1230*620*1340mm | |
| Weight | 475/380kg | Certification | CE;ISO |
Product Description

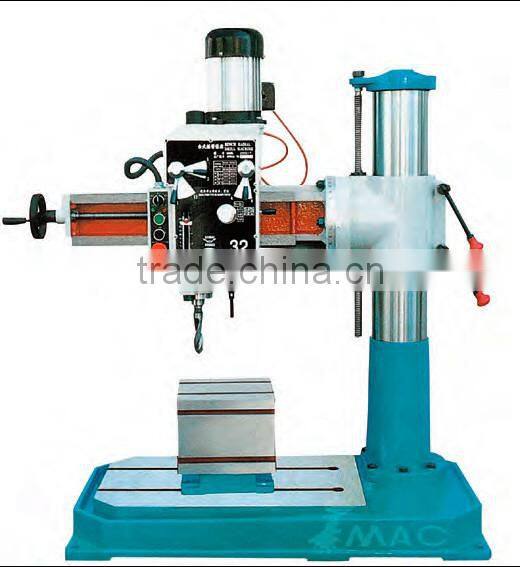

low price radial drilling machine RD3207/RD3207P
Standard Accessories
Box shape worktable
Taper sleeve
Tool releasing Wrench
Drift
Eyelet bolts
Optional Accessories
Quick instead chuck
Tapping chuck
Grease gun
Foot stand (RD3207)
low price radial drilling machine RD3207/RD3207P
| Model | RD3213 | RD3210 RD4010 | RD3209 | RD3208 RD4008 | RD3207 RD3207P |
| Max. Drilling capacity (mm) | 32 | 32/40 | 32 | 32/40 | 32 |
| Distance Spindle axis to column generating line (mm) | 200-1300 | 300-1000 | 260-900 | 320-820 | 300-700 |
| Diameter of column (mm) | 240 | 220 | 200 | 150 | |
| Spindle taper (mm) | MT4 | MT4 | MT4 | MT4 | MT3 |
| Spindle travel (mm) | 250 | 280 | 210 | 210 | 150 |
| Spindel speeds range (mm) | 71-1800 | 32-2500 | 75-1250 | 75-1220 | 100-1600 |
| Spindle speeds series | 8 | 16 | 6 | 6 | 8 |
| Range of Spindle feeds (mm/r) | 0.13-0.54 | 0.10-1.25 | 0.05-0.16 | 0.1-0.25 | 0.08, 0.14, 0.23 |
| Spindle feed | 4 | 8 | 3 | 3 | 360 |
| Max. Distance nose to working surface of base (mm) | 264-1064 | 220-1000 | 250-1100 | 320-900 | 275-680 |
| Dimension of worktable (mm) | 600x450x450 | 400x400x350 | 400x400x350 | 250x250x250 | |
| Dimension of base (mm) | 1710x800x160 | 1500x700x160 | 1370x700x160 | 1050x550x120 1200x325x155 | |
| Overall Size (cm) | 204x75x236 | 176x80x205 | 150x70x210 | 140x72x188 | 123x55x120 123x62x123 |
| Power of main motor (W) | 2.2 | 2.2 | 1.5 | 1.5 | 0.75 |
| G.W/N.W | 2100/1600 | 2100/1600 | 1380/1250 | 1425/1200 | 475-380 |
| Packing dimension (cm) | 187x97x220 | 187x97x220 | 160x75x220 | 155x77x210 | 123x62x134 |
low price radial drilling machine RD3207/RD3207P
