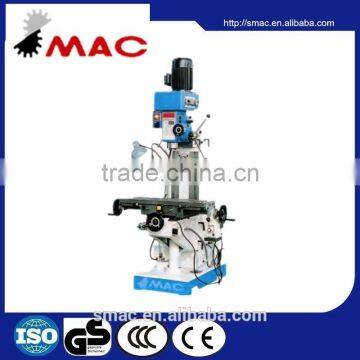

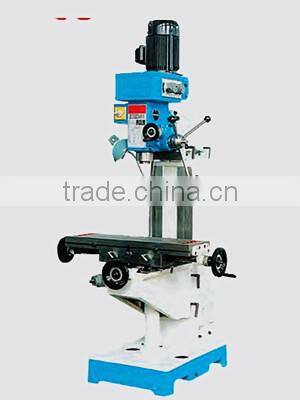

Drilling & Milling Machine/drilling Machine/milling Machine/driller
- shanghai port
- T/T D/P D/A
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | SMAC | |
| Model Number | DML7550 | Voltage | 220/380V | |
| Power(W) | 1.5/2.2KW | Dimension(L*W*H) | 1100x1100x2080/1185x950x1995mm | |
| Weight | 610~900KG | Certification | ISO,CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
drilling cum milling machine
Milling, drilling, tapping, boring, reaming
Head swivels or tilts
Micro feed precision
Heavy-duty tapered roller bearing spindle
Positive spindle lock
Adjustable gibs on table
Geared drive lower noise
Accurate position, strong rigidity, strong cutting power
1.STANDARD ACCESSORIES
face mill cutter with handle,drill chunk,taper shaft of drill chunk,4pcs internal six-side spanner,slanting block,sleeve or dull spanner
2.OPTIONAL ACCESSORIES
vice,mill chunk,digital indicator,work-table automatic feeder device,cooling system,CE standard scheme,support
table
drilling cum milling machine
Specification | DML7550 | DML7550C | DML7550W | DML7550CW/DMLX7550CW | DML7550Z |
Max. drilling dia. | 50 | 50 | 50 | 50 | 50 |
Max. horizontal milling dia. | 100 | 100 | 100 | 100 | - |
Max. vertical milling dia. | 25 | 25 | 25 | 25 | 25 |
Max. boring dia. | 120 | 120 | 120 | 120 | - |
Max. tapping dia. | M16 | CM16 | M16 | M16 | Φ12 drilling cast |
Distance. spindle to table surface | 90-490 | 90-490 | 90-490 | 90-490 | 20-500 |
Spindle speeds range | 230-1825 | 115-1750 | V230-1825/60-1350H | V230-1750/60-1350H | 65-1500 |
Spindle travel | 120 | 120 | 120 | 120 | 120 |
Table size | 800 x 240 | 800 x 240 | 800 x 240 | 800 x 240 | 800 x 240 |
Table travel | 400 x 230 | 400 x 230 | 400 x 230 | 400 x 230 | 400 x 230 |
Overall dimensions | 1100 x 1100 x 2080 | 1100 x 1100 x 2080 | 1100 x 1100 x 2080 | 1100 x 1100 x 2080 | 85 x 950 x 1995 |
Motor | 0.85/1.5 | 0.85/1.5 | V0.85/1.5,2.2H | V0.85/1.5,2.2H | 1.5 |
N.W/G.W. | 610/770 | 700/850 | 850/1000 | 900/1050 | 750/900 |
drilling cum milling machine


Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
