the Hot Sale and Low Cost Radial Drill Machine RD3209 of China of SMAC
- shanghai.china
- T/T L/C D/P D/A
You May Like
-
the Hot Sale and Low Cost New Multi Spindles Machine RDQ5020 of SMAC of China
-
the Hot Sale and Low Cost Radial Drilling Machine for Sale RD8031 of China of SMAC
-
the Hot Sale and Low Cost Upright Drilling Machine UDM25 of China of SMAC
-
the Hot Sale and Low Price Low Price Drilling Machine UDM63 of China of SMAC
-
the Hot Sale and Low Price Good New Upright Drilling Machine UDM32 of China of SMAC
-
the Hot Sale and Low Price Good Quality Upright Drilling Machine UDM40 of China of SMAC
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | SMAC | |
| Model Number | RD3209 | Voltage | 380V | |
| Power(W) | 1,5kw | Dimension(L*W*H) | 1600*750*2200mm | |
| Weight | 1380/1250kg | Certification | CE;ISO |
Product Description

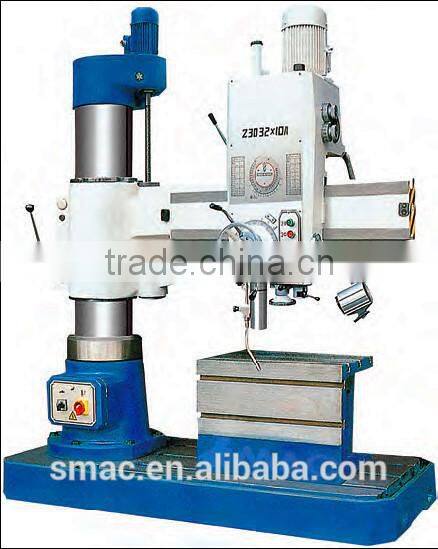

radial drill machine RD3209
Standard Accessories
Box shape worktable
Taper sleeve
Tool releasing Wrench
Drift
Eyelet bolts
Optional Accessories
Quick instead chuck
Tapping chuck
Grease gun
Foot stand (RD3207)
radial drill machine RD3209
| Model | RD3213 | RD3210 RD4010 | RD3209 | RD3208 RD4008 | RD3207 RD3207P |
| Max. Drilling capacity (mm) | 32 | 32/40 | 32 | 32/40 | 32 |
| Distance Spindle axis to column generating line (mm) | 200-1300 | 300-1000 | 260-900 | 320-820 | 300-700 |
| Diameter of column (mm) | 240 | 220 | 200 | 150 | |
| Spindle taper (mm) | MT4 | MT4 | MT4 | MT4 | MT3 |
| Spindle travel (mm) | 250 | 280 | 210 | 210 | 150 |
| Spindel speeds range (mm) | 71-1800 | 32-2500 | 75-1250 | 75-1220 | 100-1600 |
| Spindle speeds series | 8 | 16 | 6 | 6 | 8 |
| Range of Spindle feeds (mm/r) | 0.13-0.54 | 0.10-1.25 | 0.05-0.16 | 0.1-0.25 | 0.08, 0.14, 0.23 |
| Spindle feed | 4 | 8 | 3 | 3 | 360 |
| Max. Distance nose to working surface of base (mm) | 264-1064 | 220-1000 | 250-1100 | 320-900 | 275-680 |
| Dimension of worktable (mm) | 600x450x450 | 400x400x350 | 400x400x350 | 250x250x250 | |
| Dimension of base (mm) | 1710x800x160 | 1500x700x160 | 1370x700x160 | 1050x550x120 1200x325x155 | |
| Overall Size (cm) | 204x75x236 | 176x80x205 | 150x70x210 | 140x72x188 | 123x55x120 123x62x123 |
| Power of main motor (W) | 2.2 | 2.2 | 1.5 | 1.5 | 0.75 |
| G.W/N.W | 2100/1600 | 2100/1600 | 1380/1250 | 1425/1200 | 475-380 |
| Packing dimension (cm) | 187x97x220 | 187x97x220 | 160x75x220 | 155x77x210 | 123x62x134 |
radial drill machine RD3209
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to SJR Machinery Limited
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Our products are exported to more than 50 countries, more than 700 customers
