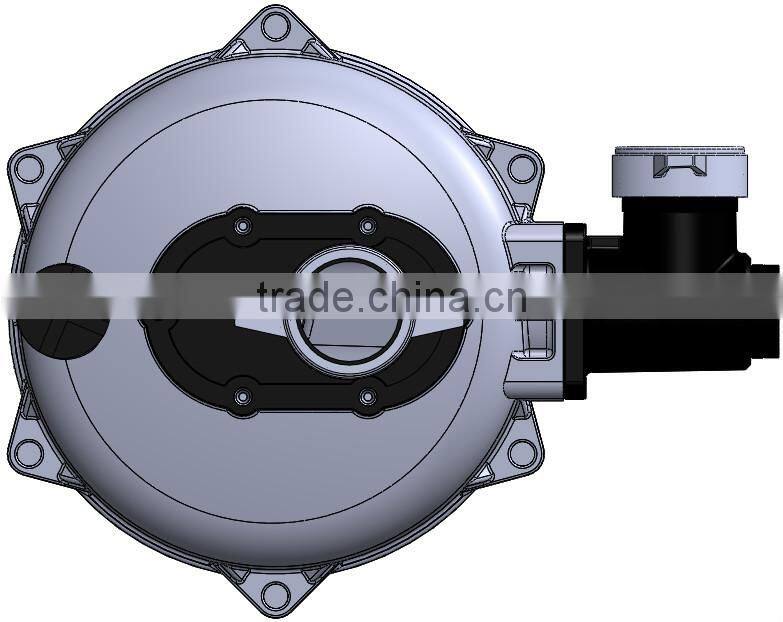

JUANYONG 2"(2HP50) High Pressure Water Pump of Pressure Water Pump Water Pumps
- Chongqing
You May Like
-
JUANYONG 3"self Priming Water Pump Diesel Engine Water Pump High Pressure Water Pump
-
High Pressure Water Pump High Lift Water Pump Fire Water Pump Price
-
KINGWAY 1Inch Self Priming Pump, Self Priming Water Pump, Self Priming Sewage Pump
-
Chongqing 1.5Inch Self Priming Pump, Self Priming Water Pump, Self Priming Sewage Pump
-
Chemical Pump(2 Inches) With Aluminum for Industry of Liquid Transfer,Chemical Dosing Pump For Sale
-
JUANYONG 1"&1.5" Gasoline Water Pumps in China
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | 2HP50 | Theory | Centrifugal Pump | |
| Structure | Multistage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | High Pressure | |
| Application | Fire |
Product Description

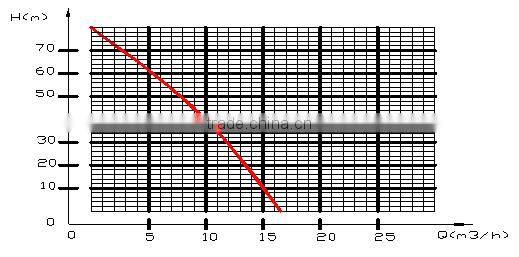

Performance curve
Parameter
ITEM | 2HP50 |
Outlet Size(mm) | 50 |
Inlet Size(mm) | 50 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 16 |
Lift H.max(m) | 80 |
Suction(m) | 7 |
Engine Model | 168F |

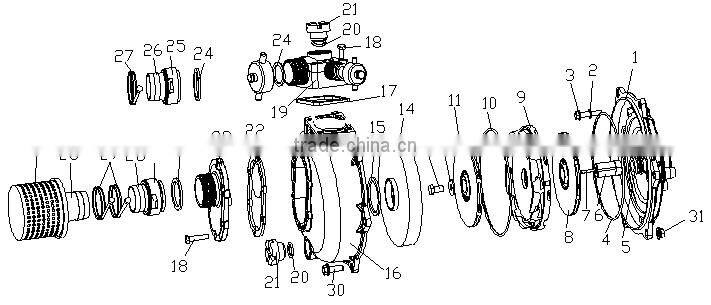

ErialNumber
| Name | Number |
1 | Water pump cover | 1 |
2 | Aluminum flat washer φ8×φ16×1.5 | 4 |
3 | Bolt M8×65 GB5787 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Connecting shaft | 1 |
7 | Key | 1 |
8 | Impeller-1 | 1 |
9 | Eddy shell-1 | 1 |
10 | Eddy shell sealing ring-1 | 1 |
11 | Impeller-2 | 1 |
12 | Iron flat washer φ10×φ30×2 | 1 |
13 | Bolt M10×20 GB5783 | 1 |
14 | Eddy shell-2 | 1 |
15 | Eddy shell sealing ring-2 | 1 |
16 | Water pump body | 11 |
17 | Outlet gasket | 1 |
18 | Bolt M8×25 | 6 |
19 | The water outlet joint | 1 |
20 | Rubber plug gasket | 2 |
21 | Threaded plug pump | 2 |
22 | Inlet sealing gasket | 1 |
23 | Inlet joint | 1 |
24 | Pipe joint sealing gasket | 2 |
25 | Pipe joint connecting nut | 2 |
26 | Pipe joint | 2 |
27 | Clamp | 3 |
28 | The filtering orifices | 1 |
29 | Filter cover | 1 |
30 | Bolt M10×30 GB5787 | 6 |
31 | Nut M10 GB6177 | 6 |
