JUANYONG 6"self Priming Water Pump With Farm Irrigation Sewage Pumps Manufacturer Made in China
- Chongqing
You May Like
-
JUANYONG 2"self Priming Water Pump With Aluminum Water Pump
-
JUANYONG 4"self Priming Water Pump for Centrifugal Pumps Water Pumps
-
JUANYONG1.5"self Priming Water Pump With Agriculture Water Pump Water Pumps
-
JUANYONG 1"self Priming Water Pump With Agricultural Irrigation Pumps
-
JUANYONG 2"drag Water Pump of Low Pressure Pressure and Hydraulic Power 6hp Water Pump
-
JUANYONG 2"high Pressure Pump for Decor Outdoor Garden Water Fountain Bowl Electric Water Pump
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WP150 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Other, irrigation |
Product Description
Product Description

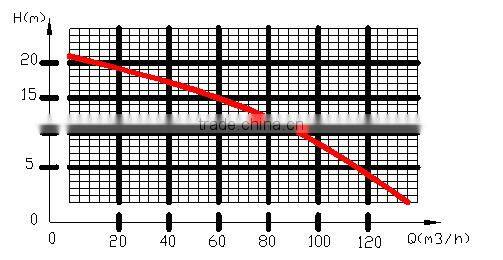

Performance curve
Parameter
ITEM | WP150 |
Outlet Size(mm) | 150 |
Inlet Size(mm) | 150 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 132 |
Lift H.max(m) | 20 |
Suction(m) | 7 |
Engine Model | 190F |

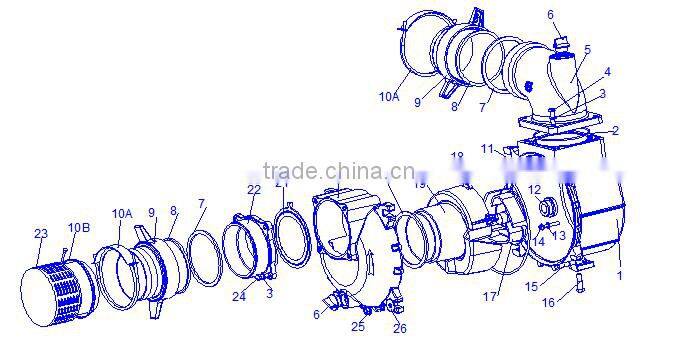

Serial number | Name
| Number |
1 | Water pump cover | 1 |
2 | Outlet sealing ring | 1 |
3 | Iron flat washer | 8 |
4 | bolt M10×40 | 4 |
5 | The water outlet joint | 1 |
6 | Threaded plug pump | 2 |
7 | Pipe joint sealing gasket | 3 |
8 | Pipe joint | 2 |
9 | Pipe joint connecting nut | 2 |
10(A B) | Clamp | 3 |
11 | Spring pin 10×30 | 1 |
12 | Mechanical seal / ceramic | 1 |
13 | Aluminum flat washer φ8×φ16×1.5 | 4 |
14 | bolt M8×55 | 4 |
15 | articulated M12×65 | 4 |
16 | bolt M12×45 | 4 |
17 | Impeller | 1 |
18 | Pump sealing ring | 1 |
19 | Eddy shell | 1 |
20 | Water pump body | 1 |
21 | Inlet sealing gasket | 1 |
22 | Inlet joint | 1 |
23 | Screen combination | 1 |
24 | bolt M10×30 | 4 |
25 | Nut M12) | 4 |
26 | Big washer | 4 |
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
