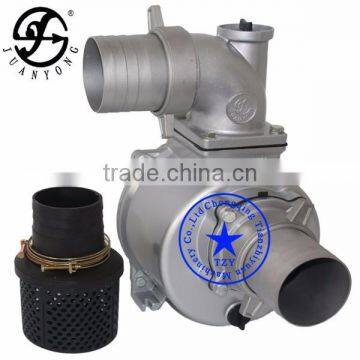

JUANYONG 4"self Priming Water Pump for Centrifugal Pumps Water Pumps
- Chongqing
You May Like
-
JUANYONG1.5"self Priming Water Pump With Agriculture Water Pump Water Pumps
-
JUANYONG 1"self Priming Water Pump With Agricultural Irrigation Pumps
-
JUANYONG 2"drag Water Pump of Low Pressure Pressure and Hydraulic Power 6hp Water Pump
-
JUANYONG 2"high Pressure Pump for Decor Outdoor Garden Water Fountain Bowl Electric Water Pump
-
JUANYONG2&3&4&6 Gasoline Water Pump for Desert Control 1.5-60t/h
-
"Juanyong"Brand 3 Inch High Pressure Water Pump for Car Wash
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WP100 | Theory | Centrifugal Pump | |
| Usage | Water | Power | Hydraulic | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Fire |
Product Description
Performance curve
Parameter
ITEM | WP100 |
Outlet Size(mm) | 100 |
Inlet Size(mm) | 100 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 90 |
Lift H.max(m) | 25 |
Suction(m) | 7 |
Engine Model | 190F |

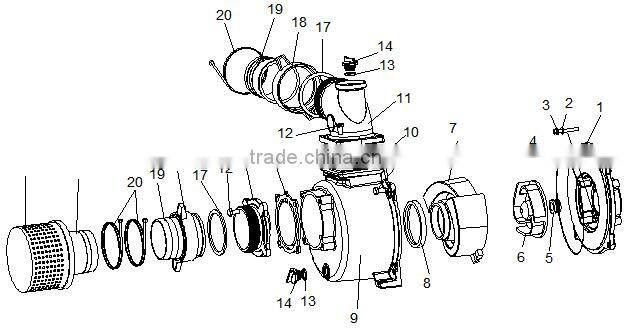

Serial number | Name
| Number |
1 | Water pump cover | 1 |
2 | Aluminum flat washer φ8×φ16×1.5 | 5 |
3 | Bolt M8×45 GB5787 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Outlet gasket | 1 |
11 | The water outlet joint | 1 |
12 | Bolt M10×30 | 12 |
13 | Rubber plug gasket | 2 |
14 | Threaded plug pump | 2 |
15 | Inlet sealing gasket | 1 |
16 | Inlet joint | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Pipe joint connecting nut | 2 |
19 | Pipe joint | 2 |
20 | Clamp | 3 |
21 | The filtering orifices | 1 |
22 | Filter cover | 1 |
RFQ
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
