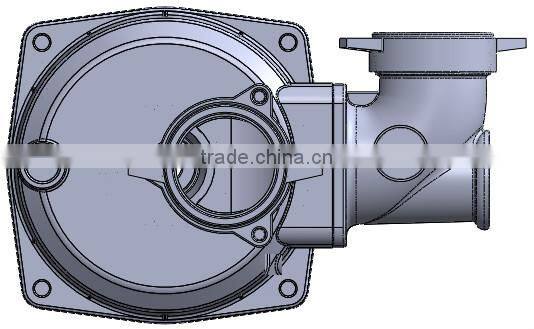

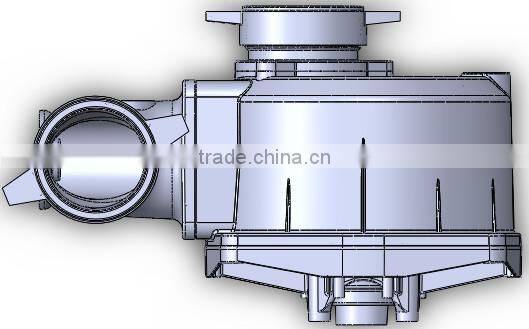

JUANYONG 3"self Priming Water Pump With Centrifugal Pump Manufacturers Water Pumps
- Chongqing
You May Like
-
JUANYONG 6"self Priming Water Pump With Farm Irrigation Sewage Pumps Manufacturer Made in China
-
JUANYONG 2"self Priming Water Pump With Aluminum Water Pump
-
JUANYONG 4"self Priming Water Pump for Centrifugal Pumps Water Pumps
-
JUANYONG1.5"self Priming Water Pump With Agriculture Water Pump Water Pumps
-
JUANYONG 1"self Priming Water Pump With Agricultural Irrigation Pumps
-
JUANYONG 2"drag Water Pump of Low Pressure Pressure and Hydraulic Power 6hp Water Pump
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WP80 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Nonstandard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Other, irrigation |
Product Description
Product Description

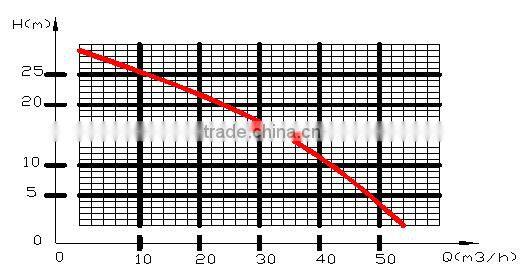

Performance curve
Parameter
ITEM | WP80 |
Outlet Size(mm) | 80 |
Inlet Size(mm) | 80 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 50 |
Lift H.max(m) | 28 |
Suction(m) | 7 |
Engine Model | 168F |

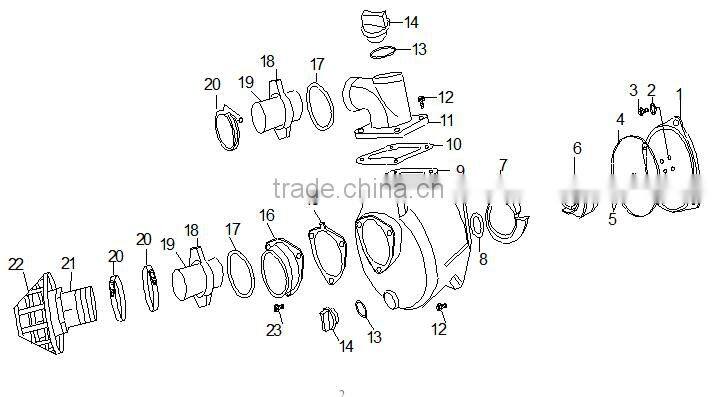

Serial number | Name
| Number |
1 | Water pump cover | 1 |
2 | Aluminum flat washer φ8×φ16×1.5 | 4 |
3 | Bolt M8×65 GB5787 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Outlet gasket | 1 |
11 | The water outlet joint | 1 |
12 | Bolt M10 | 11 |
13 | Rubber plug gasket | 2 |
14 | Threaded plug pump | 2 |
15 | Inlet sealing gasket | 1 |
16 | Inlet joint | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Pipe joint connecting nut | 2 |
19 | Pipe joint | 2 |
20 | Clamp | 3 |
21 | The filtering orifices | 1 |
22 | Filter cover | 1 |
Delivery time:10-15days after initial payment.
Sampe by express, like UPS,TNT,FEDEX,EMS by air.
For large goods will delivery by sea.
Payment :T/T30% payment in advance,70% pay it when we prepared all goods after.
West Uion/PayPal and the special issues can be discussed.
