Home > Products > Dewatering Solutions > High Pressure Ceramic Slurry Filter Press

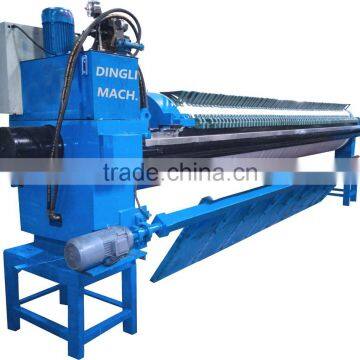

High Pressure Ceramic Slurry Filter Press
US$ 20,000 - 35,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
You May Like
-
Bolts Jointed Blades Replaceable Zero Gravity Double Shaft Paddle Mixer
-
China Hot Sale 2 ton Putty Mixer 2000kg Batch Capacity Mixing Machine
-
Horizontal Putty Mixer
-
China Automatic Dry Mixed Mortar Plant
-
Simple Dry Mixed Mortar Making Line Equippment
-
Baldes Replaceable Zero Gravity Durable Double Shaft Paddle Mixer
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Production Capacity | High Efficiency | Place of Origin | Henan, China | |
| Model Number | XYD1100/185 | Voltage | 380V | |
| Power(W) | 4 KW | Weight | 9500 kgs | |
| Dimension(L*W*H) | 9680x1500x1925 | Certification | CE ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Round –plate filter press can realize much higher filtration pressure than standard shaped plate filter press, thus residue cake moisture can be reduced to minimum content. It is mainly used for stone machining wastewater, ceramics, kaolin, construction materials, etc..
Technical Data
| Model | filter area (m2) | plate diameter (mm) | Cake thickness mm | Filter Chamber Volume (L) | Plate Numbers | Filtration pressure(Mpa) | Motor Power(Kw) | Weight (kgs) | Dimension L*W*H(mm) |
| XYD1100/125 | 125 | 1100 | 30 | 1875 | 81 | <=2.0 | 4.0 | 7700 | 7,280*1,500*1,925 |
| XYD1100/140 | 140 | 1100 | 30 | 2100 | 91 | <=2.0 | 4.0 | 8200 | 7,880*1,500*1,925 |
| XYD1100/155 | 155 | 1100 | 30 | 2325 | 101 | <=2.0 | 4.0 | 8700 | 8,480*1,500*1,925 |
| XYD1100/185 | 185 | 1100 | 30 | 2520 | 121 | <=2.0 | 4.0 | 9500 | 9,680*1,500*1,925 |
