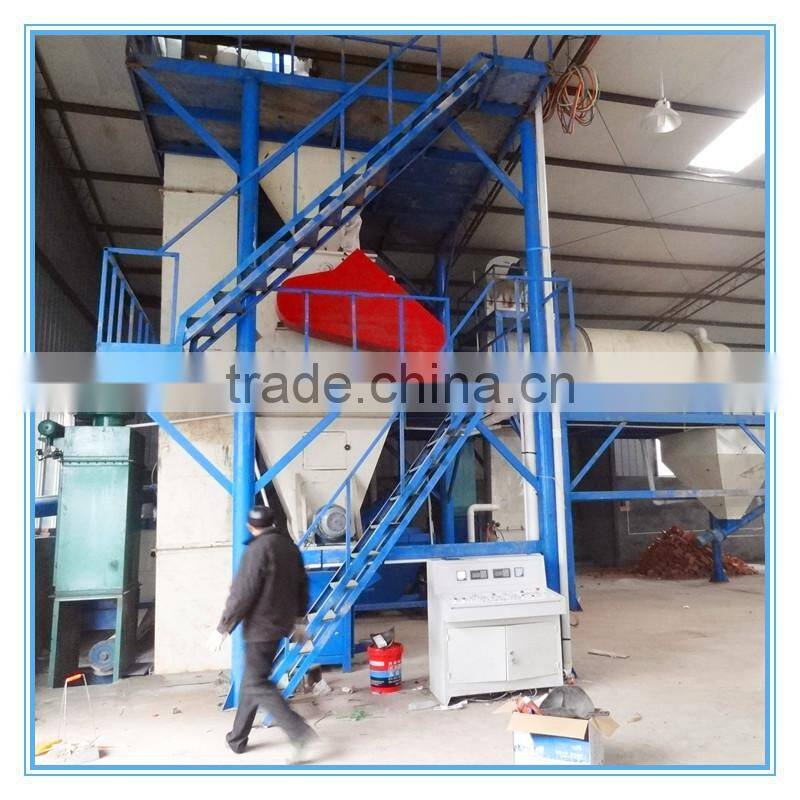

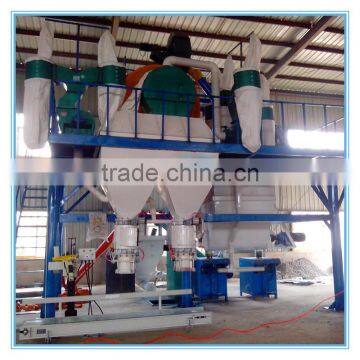

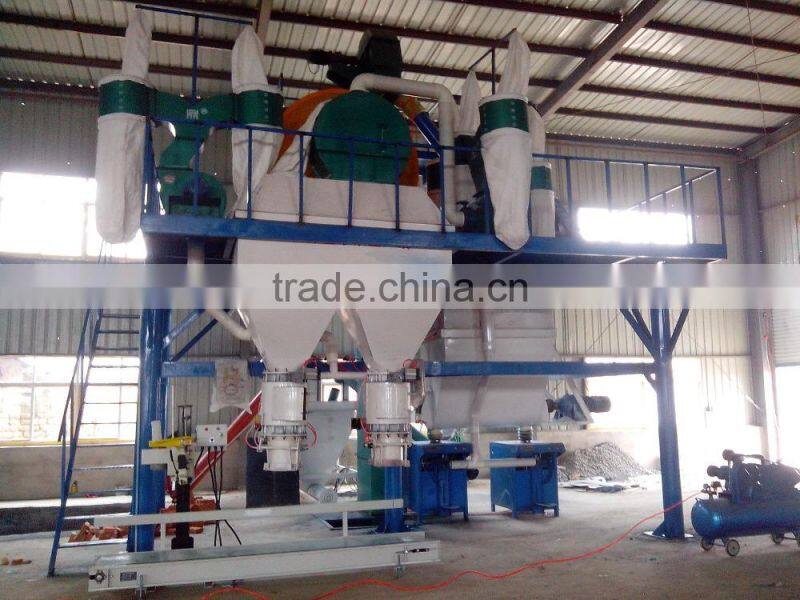

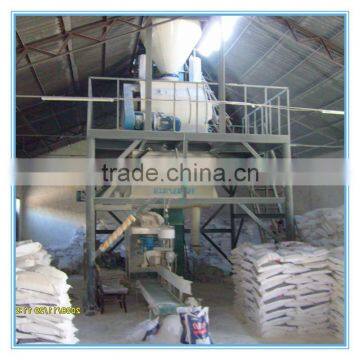

100k, 200k, 300k Ton Per Year Automatic Dry Mixed Mortar Prlant

100000-300000 TPY Automatic Dry Mixed Mortar Plant

Fully automatic dry mortar production line main equipment:

1, Raw material tank:

In automatic dry mortar production line it is used to store the cement, fly ash, etc., adopt pneumatic conveying pump truck, do not need to set the lifting device. Warehouse top equipped with dust collector, which can effectively protect the working environment. Arch breaker pneumatic cone parts, which can effectively prevent arch cement, fly ash, the guarantee measure spiral ingredients smoothly.

2, Sand drying device:

It is used to dry wet sand, the system of which includes hot air stove, dryers, screening machine, dust filter, conveyor, hoist, etc.

3, Batching device:

It is composed of hopper weighing scale, screw conveyor, feeding and discharging device, control system, etc. It is designed according to different raw materials formula will automatic metering, reduce labor intensity and environmental pollution, ensure the quality of full automatic production line of dry mortar products.

4, Mixer:

Fully automatic production line of dry mortar machinery has the requirement to the mixer of uniform mixing, no dead angle, high efficiency, equipment wear, discharging speed. Our company has no gravity mixing machine is very suitable for fully automatic production line of dry mortar industry.

5, Powder packaging machine:

There are two types of packaging machines, that is, open mouth packaging machine and valve mouth packing machine. Fully automatic production line of dry mortar usually adopts valve bag packaging machine, valve bag packaging without seam, so only one operator can manage, but this packing machine is not suitable for packing of lightweight granular materials. Open mouth packing machine can pack all types of materials, but it needs an auxiliary operator for sewing after bagging.

6, Dust filter

Dust filter used in the recovery of automatic production line of dry mortar in dust, conducive to environmental protection. Generally choose pulse bag filter, the filter reliable operation, high dust removal efficiency, maintenance is convenient.

7, conveying and lifting device:

They are used in the automatic production line for dry mortar in conveying means has: horizontal and vertical transmission, horizontal conveyor can use screw conveyor, bucket elevator commonly used vertical transmission.

8, the control system

It adopts computer control, PLC, intuitive operation, precise control, automatic error correction.

Fully automatic production line of dry mortar for the whole automatic production line of dry mortar, dry mortar, insulation mortar, ready-mixed mortar admixture, jointing agent, interface agent, putty powder, chemical powder, such as stirring, mixing, metering, packaging. My company production equipment, high quality and low price, and provide comprehensive after-sales service
