Home > Products > Dry Mixed Mortar Machines > Simple Dry Mixed Mortar Production Line Plant

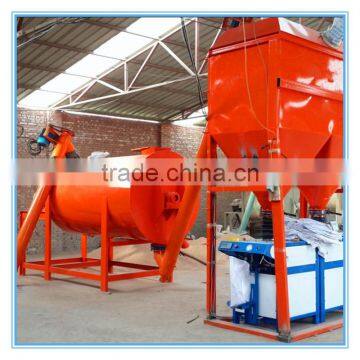

Simple Dry Mixed Mortar Production Line Plant
USD $1,600 - $2,500
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Application | putty, dry mixed powder, adhesive | |
| Production Capacity | 1000kg/batch | Place of Origin | Henan, China | |
| Brand Name | DINGLI | Model Number | JHW-1000 | |
| Voltage | 380v,415v,480v | Power(W) | 7.5-11kw | |
| Dimension(L*W*H) | 2.8x1.1x2.1m | Weight | 1.2 ton | |
| Features | Electric discharging | Certification | ISO, CE | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Simple Dry Mixed Mortar Plant
Description of horizontal putty mixer:
Putty powder mixer able to meet the performance requirements of dry mortar, dry material, adhesive powder production needs, such as: putty powder, powder coating, masonry mortar, plaster mortar, insulation mortar, decorative mortar needed by the system and so on all kinds of dry powder mortar; And covers an area of small, less investment, quick effect, simple operation, and many other advantages.
Features of horizontal putty mixer:
1. It adopts screw conveyor discharge, discharges fast;
2. The material is flexible, and open valve pocket bag can be used;
3. The basic accurate precision of electric control system can make the finished product packing, save the cost of users to buy automatic quantitative packaging machine;
4. Small investment, quick effect, apply to an individual or a small processing plants.
Detailed introductin of horizontal putty mixer:
1, this machine is horizontal cylinder, three layers inside and outside whose spiral belt has a unique structure, smooth operation, reliable quality, low noise, long service life, easy installation and maintenance, and has a variety of agitator structure, USES a wide range of multifunctional mixing equipment;
2, fast mixing, high mixing uniformity, especially the viscosity, spiral belt can install scraper, more adapt thickens, paste mixed;
3, under the request of different material mixed (special materials must be clean every time after mixing), with different spiral band structure, heating, drying of model;
4, can be customized according to customer's requirements.
5, horizontal door the body can also be equipped with activity, so that for user to clean.
6 a reliable after-sales service, let customers buy the rest assured, with enjoyable.
Techinical specification of horizontal putty mixer:
Model | 250 | 500 | 1000 | 2000 |
Machine size mm | 2100×69×140 | 2800×980×2100 | 2800×1100×2100 | 3600×1200×2300 |
Motor power kw | 3KW | 7.5~11KW | 7.5~11KW | 11~15KW |
Batch capacity kg(L) | 250kg | 500kg | 1000kg | 2000kg |
Mixing time (min) | 3-6 | 3-6 | 3-6 | 3-6 |
Material size(mm) | 0.01-2 | 0.01-2 | 0.01-2 | 0.01-2 |
Eveness degree(CV) | >95% | >95% | >95% | >95% |
