Simple Type Dry Mixed MortarPacking Machine

Impeller Packing Machine for Simple Type Dry Mixed Mortar Packing Machine

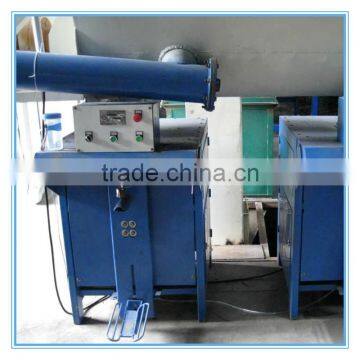

Brief introduction of Impeller packing machine:

The impeller packing machine is composed of four major parts including automatic weighing device, transmission device, sewing device, and computer controller. Display set weight, total number of packages, the working state. The device adopts three speed fast, medium and slow feeding and special feeding structure, advanced digital frequency conversion control technology, the advanced sample processing, anti-jamming technology, and realizes automatic error compensation and correction, ensure higher precision weighing. This product is the biggest characteristic of the processing of computer software, to solve the similar products in the past can not solve the problem, namely, pneumatic landing card to open the bag, the phenomenon of the powder, shows the content of higher science and technology and precision of it, is can't be matched by similar products.

Features of Impeller packing machine:

1, the machine adopts computer measuring device, weighing accurate, stable performance, simple operation;

2, the fuselage all sealed and equipped with dust removal, reasonable structure, durable, truly environmentally friendly production;

3, small volume, light weight, convenient adjustment and maintenance;

4, mechanical and electrical integration, save electricity, the machine can automatically realize the compaction of the packaging bags, loosen, shut down and out of the gate is bags, and other functions;

5, wide range of USES. This machine is used to dry mortar packing not only, also can be used for other flow performance good powdery and granular materials packaging.

The DGF-50 series packing machines mainly have single-mouth, double-mouth, three-mouth, four-mouth, six-mouth types.

Technical specification of Impeller packing machine:

1, bags weighing error: 50 + / - 0.5 kg

2, bag of weight percent of pass: 95%

3, every mouth production 10-15 t/h

4, every mouth power: 5.5 kW, single bag weight: 20 to 50 kg adjustable
