JULY Wholesale Manufactuer Custom Pneumatic Piston Cylinder

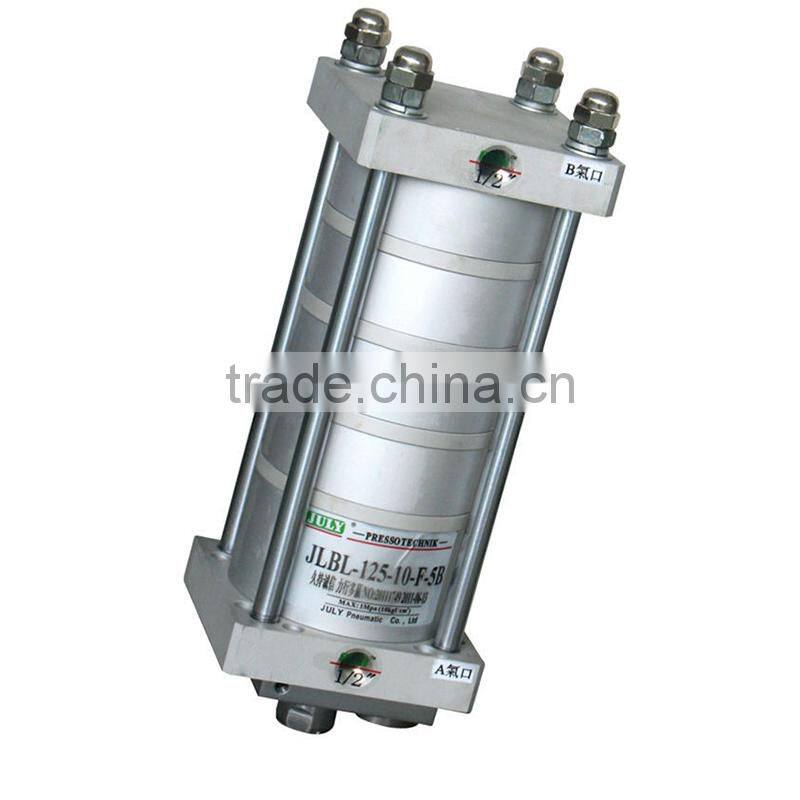

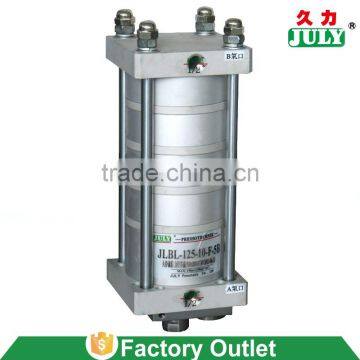

Item	JLBL Multiple-pistons pneumatic Cylinder
Action type	Double action
Action pressure	Clean compressed air of 3-7kg/cm²
Operation temperature	-5℃ - 60℃
Operating speed	500-1000mm/s
Anti-pressure of pneumatic cylinder	12kg/cm²
Stroke tolerance	+1.00mm 0.00mm
Power stroke tolerance	+0.20mm 0.00mm
Frequency	More than 15times/min(related to the specific stroke)

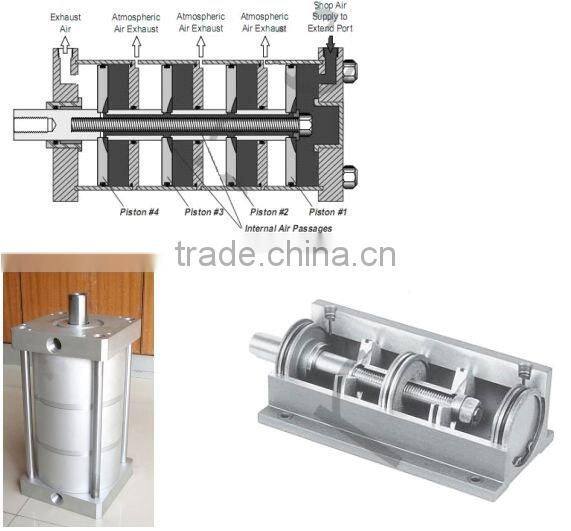

The cylinder model for multiple power cylinder, fully use the compressed air source, large output, multilayer piston combination, to increase output, suitable for short stroke and high output and oil free operation occasions

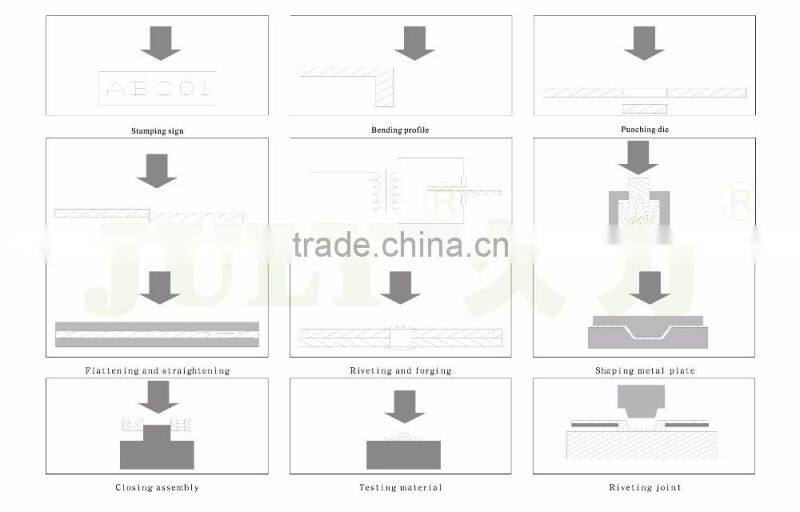

1. Bending

2. Punching and connection

3. Riveting

4. Blanking

5. Stretch for forming

6. Stamping numbers and  letters

7. Cutting

8. Assembling and alignment

9. Clamping and extrusion

		Packaging
	1	We adopt the advanced material Expansible Polystyrene(EPS) as inner packaging , which is more securer and eco-friendly than ordinary packing. Master cartons or wooden case packing in the outside.

We can also supply all kinds of packing ,according to customers' requirements: Shipping Marks, Bubble bags, etc.

Julyr industrial

Shipping

Julyr industrial

If there is any problem or question, please don’t hesitate to contact us.

(contact info , please click here. ←_← )

How to finalize the parameters of your pressure cylinders?

1.According to the requirement of your processing workpiece ,the total stroke is ____mm;

2.While punching the workpiece ,the stroke for high pressure is ____mm;

3.If the machine needs to be heated while processing products, the highest temperature up to ____℃;

4.The output pressure is ____kgf when it processes the workpiece;

5.The gas source is ____Mpa while it’s running;

6.Based on the processing requirements ,it has to work ___time(s) per minute, or work once every  ___minute(s);

7.Due to difference of workpiece forming, the cylinder the method of installation is also different. Which is yours? bottom-up installation; Top-down installation; Horizontal installation;

8.What kind of control system will be available in your workshop?

Gas control; DC,24V;  AC,110V;  AC-,20V; AC.380V;

9.The returning pulling force is ____kg. (it normally refers to the weight of die and template connected by the pressure cylinder ).

Our Advantages

1. Various style for each products and completely series pneumatic products for you to choose from.
2. Large stock for fast shipping.
3. High quality with competitive price
4. Sample order & small quantity order is ok
5. Customize according to your special demand.
6. Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website( Go our website,please click here. ←_← ), or just contact with us directly. Thank you!

Julyr industrial

Cooperation Terms

• Sample terms: Sample fee is charged and will be refunded when order is placed.
• Sample time: 3-5 working days
• Payment terms: 30% deposit and balance 7 days before delivery.
• Delivery Time: 3-5 weeks after sample confirmation.

Q: What products do you supply?

A:  We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.

Q: Can you guarantee quality for orders?

A: Sure. We can 100% guarantee quality for all of your orders, as what  we want  is a long-term business relationship with you, rather than one off business.

Q: Can I have my brand and put my logo on the products?

A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.

Q: What’s your delivery time?

A: That depends. It usually takes 15-30 days for different products and quantity.
