High Quality July Model : JLS-GBD40 32 Mpa High Pressure Safety Valve Test

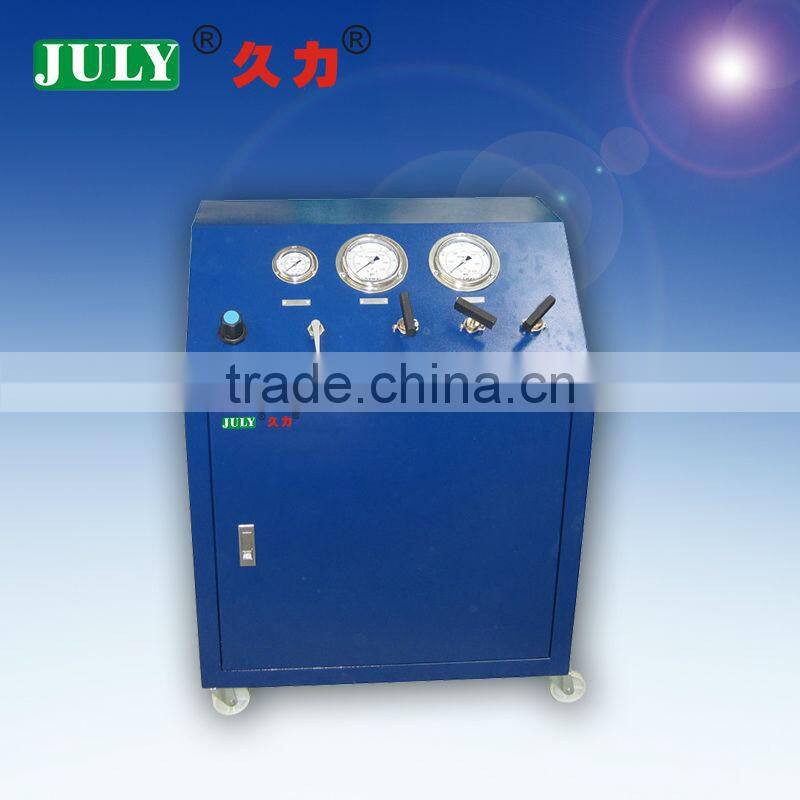

                        JLS-GBD40  High pressure gas booster system for testing bench ,safety valve test bench  ,air driven gas booster system

Manual Gas Booster System is a complete gas booster units ready for connection which are provided for generating operating pressures up to 32MPa. It is suitable for powering medium as gas .

• As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
• To operate this system, the air driven gas boosters  have to be equipped with the air control unit for driven air pressure adjusted.
• The desired operating pressure can be attained by adjusting the driven air pressure through regulator valve.When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value.
• Ideal for power source of tipping system on rail tipper
• Constant outlet pressure can be got through JLS-GBD40  Manual gas booster system

Key features:

        Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof

        Pneumatically powered of oil free compression and clean air .No contamination possible

        Simple controlling and regulating processes because of the compressed-air drive.

        Robust and reliable operation in hardest operating enviroment.For example,

System configuration:

JLS-GBD40 gas booster system mainly includes one piece of GBD40 air driven gas booster,pressure gauges,air

filter,gas inlet filter, control valves,air regulating valve, pipelines,cabinet,high pressure buffer vessel(1L,50Mpa),high

pressure regulator(inlet pressure: 10000Psi, outlet pressure: 6000Psi), high pressure relief valve(6000Psi), pressure release valve etc.

• Technical parameters Max. outlet pressure 320 bar Air drive port Connect with PU hose Air drive pressure 3-8bar Inlet pressure 15-300 bar  Flow rate 90 litre/min constant output pressure 0-300bar(adjustable) Working medium Nitrogen, argon etc non-corrosive gas Drive medium Compressed air Inlet port NPT1/4’’ Outlet port NPT1/4’’ Air consumption 0.6-1.2M3/min Noise <75db
