Home > Products > 13.Hydraulic cylinder > Hot sale JULY high quality aluminum portable oil cylinder hydraulic

Hot sale JULY high quality aluminum portable oil cylinder hydraulic

FOB Price

USD $350 - $1,600 / Set

1 Set(Min.Order)

Supply Ability 200 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Piston Cylinder
Power	Pneumatic	Body Material	Aluminum
Maximum Stroke	9~13MM	Shaft Diameter	25~63MM
Place of Origin	Guangdong, China	Model Number	JLCHS
Brand Name	JULY

Product Description

WHY CHOOSE US?

1. We owned more than 20 years of experience in Hydro-pneumatic industry.

2. Two our own factories in China.

3. We are the specified education and experimental base of GuangDong University of Science & Technology.

hot sale JULY oil cylinder hydraulic high quality

Application : watercraft's equipment ,wood-working, sponge machiney, engineering elevating machinery ,metallurgical machiney, etc.

Product Description

Items	JLchs Hydraulic Swing Clamp Cylinder
Bore of cylinder(mm)	25	32	40	50	63
Bore of piston(mm)	18	20	22	28	35
Swing stroke(mm)	9	11	11	13	13
Clamping stroke(mm)std/incr	13	15/30	15/30	17/34	17/34
Pressure area pull/push(cm²)	2.37/4.91	4.9/8.04	8.63/12.57	13.47/19.63	21.54/31.17
Theoretical clamping(30kg/cm²)	71	147	259	404	647
Fluid	filtered oil
Max pressure(kg/cm²)	100 kg/cm²
Range of press	10-70 kg/cm²

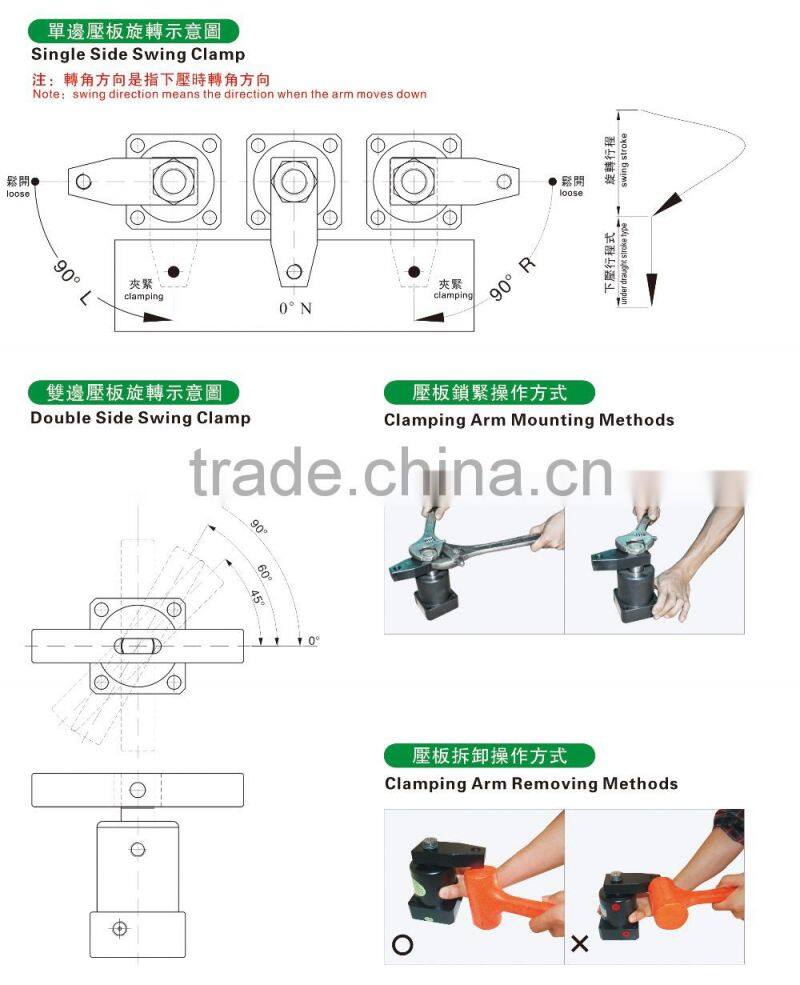

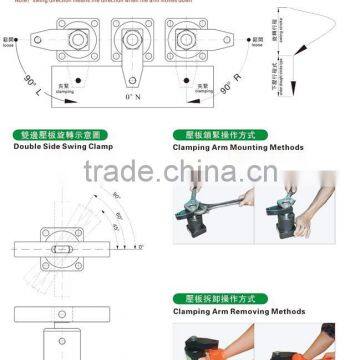

Rotating direction	turn right L or turn left R
Rotating angle	standard angle 90° order angle 0 ,45( ±2°)60( ±2°)
Acting type	double acting
supplier	Julyr Industrial

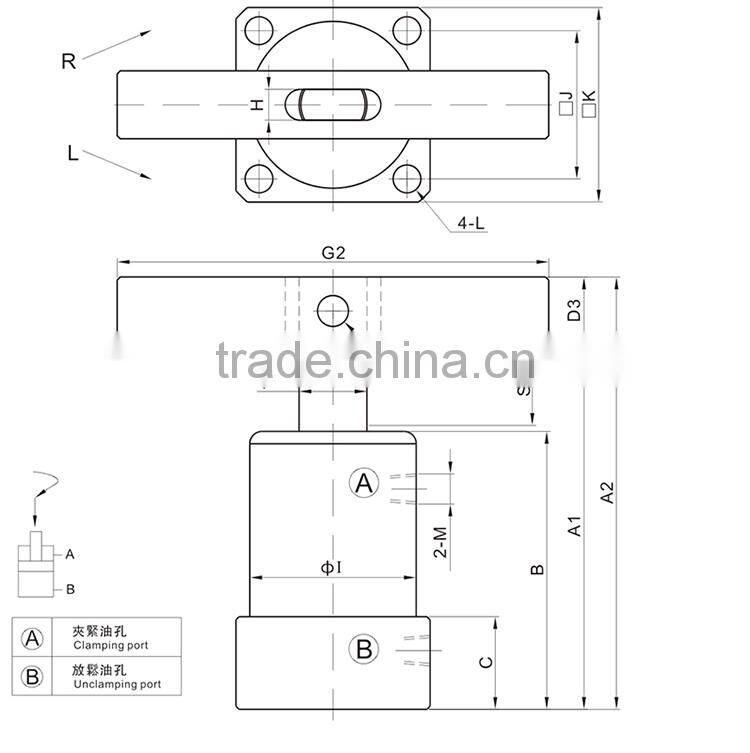

Drawing

Dimension table

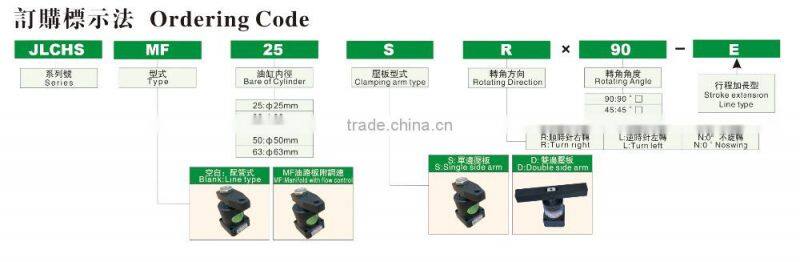

Ordering code

Packaging & Shipping

Packaging

We adopt the advanced material Expansible Polystyrene(EPS) as

inner packaging , which is more securer and eco-friendly than

ordinary packing. Master cartons or wooden case packing in the

outside.

We can also supply all kinds of packing ,according to customers' requirements: Shipping Marks, Bubble bags, etc.

Julyr industrial

Shipping

Julyr industrial

By sea	Cheapest but longest option 18~30 days by sea delivery, best for large quantity order.
By air	More expensive than sea delivery, But cheaper than express 5~7 days by air to airport.
By express	door to door service,the fastest and most expensive one, 3~6 days by express.

If there is any problem or question, please don’t hesitate to contact us.

(contact info , please click here. ←_← )

Company Information

Dongguan July® Hydro-pneumatic Equipment Co., Ltd, its predecessor called Changhua Hydro-pneumatic

machinery factory, was founded in Taiwan in 1985, and then moved to Dongguan in 2008. With the increasing development of business, in 2014 our second factory Jiangxi Eagl® science and technology Co., Ltd was set up.

Having worked in numerous industries for years, our various experiences benefit us by knowing how to provide customers with the most efficient solutions.

July® have an efficient and professional R&D team of more than 20 people, and now have got 2 our own

factories in China.

Quality is our culture.

We have been obtaining lots of patents since 2008. We have also won the honorary title of national high-tech and innovative enterprise in China. Julyr® and Eagl® are our two brands. We are the appointed teaching and experimental base of Dongguan University of Technology. Any special requirement can be customized.

Our products and equipment apply to many fields, especially machinery, automobile, electronic, shoemaking, mining, bags and suitcases industries. Our products are widely recognized and trusted by users and can meet the changing continuously economic and social needs.

Our manufacture base are all abtained the sales, development, production and service of the ISO 9001:2000

International Quality System Certificate. we often working with a number of regulatory certification agencies, including

DNV, ABS, Lloyds, BV, GL, and CCS, etc.

There is a set of complete system to recording all material, production and inspection, which helps us to

quickly tracking and solve any problems.

July®’s partners are all over the world. So far, our metal cylinders, booster pumps, press machines, riveting machine,pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc. have been

already exported to USA, Northern Europe, Australia, Russian Federation, South Asia, Mid-East, Brazil and

dozens of other countries and regions.

Learn more >>

Our Services

Our Advantages

Various style for each products and completely series pneumatic products for you to choose from.
Large stock for fast shipping.
High quality with competitive price
Sample order & small quantity order is ok
Customize according to your special demand.
Provide free products information.
Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website( Go our website,please click here. ←_← ), or just contact with us directly. Thank you!

Julyr industrial

Cooperation Terms

Sample terms: Sample fee is charged and will be refunded when order is placed.
Sample time: 3-5 working days
Payment terms: 30% deposit and balance 7 days before delivery.
Delivery Time: 3-5 weeks after sample confirmation.

FAQ

Q: What products do you supply?

A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.

Q: Can you guarantee quality for orders?

A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.

Q: Can I have my brand and put my logo on the products?

A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.

Q: What’s your delivery time?

A: That depends. It usually takes 15-30 days for different products and quantity.

Please feel free to contact us if any questions or problems, we are sure to provide you with best solutions.
