JULY Dongguan Factory Made Hydropneumatic Swing Clamp Cylinder
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Wholesale JULY Factory Direct Manufacture Small Electric Hydraulic Cylinder
-
Custom JULY Top Quality Small Bore Hydraulic Cylinder
-
EAGL Metal Bracket,air Conditioner Bracket Made in China
-
EAGL Glass Bracket,corner Bracket Wholesale
-
Hot Selling Steel Door Hinge With Low Price
-
EAGL China Manufactory Custome Blank Key Chain Wholesale
Product Details
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Power | Pneumatic | Body Material | Aluminum | |
| Maximum Stroke | 9~13MM | Shaft Diameter | 25~63MM | |
| Place of Origin | Guangdong, China | Model Number | JLCHS | |
| Brand Name | JULY |
Product Description
WHY CHOOSE US?
1. We owned more than 20 years of experience in Hydro-pneumatic industry.
2. Two our own factories in China.
3. We are the specified education and experimental base of GuangDong University of Science & Technology.
factory supply JULY dongguan factory made swing clamp cylinder
Application : watercraft's equipment ,wood-working, sponge machiney, engineering elevating machinery ,metallurgical machiney, etc.
| Items | JLchs Hydraulic Swing Clamp Cylinder | ||||
| Bore of cylinder(mm) | 25 | 32 | 40 | 50 | 63 |
| Bore of piston(mm) | 18 | 20 | 22 | 28 | 35 |
| Swing stroke(mm) | 9 | 11 | 11 | 13 | 13 |
| Clamping stroke(mm)std/incr | 13 | 15/30 | 15/30 | 17/34 | 17/34 |
| Pressure area pull/push(cm²) | 2.37/4.91 | 4.9/8.04 | 8.63/12.57 | 13.47/19.63 | 21.54/31.17 |
| Theoretical clamping(30kg/cm²) | 71 | 147 | 259 | 404 | 647 |
| Fluid | filtered oil | ||||
| Max pressure(kg/cm²) | 100 kg/cm² | ||||
| Range of press | 10-70 kg/cm² | ||||
| Rotating direction | turn right L or turn left R | ||||
| Rotating angle | standard angle 90° order angle 0 ,45( ±2°)60( ±2°) | ||||
| Acting type | double acting | ||||
| supplier | Julyr Industrial | ||||

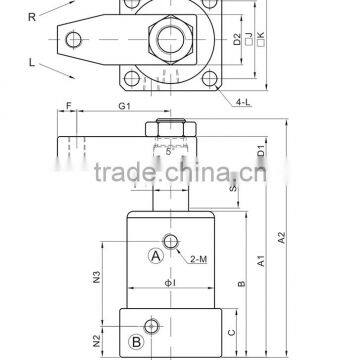

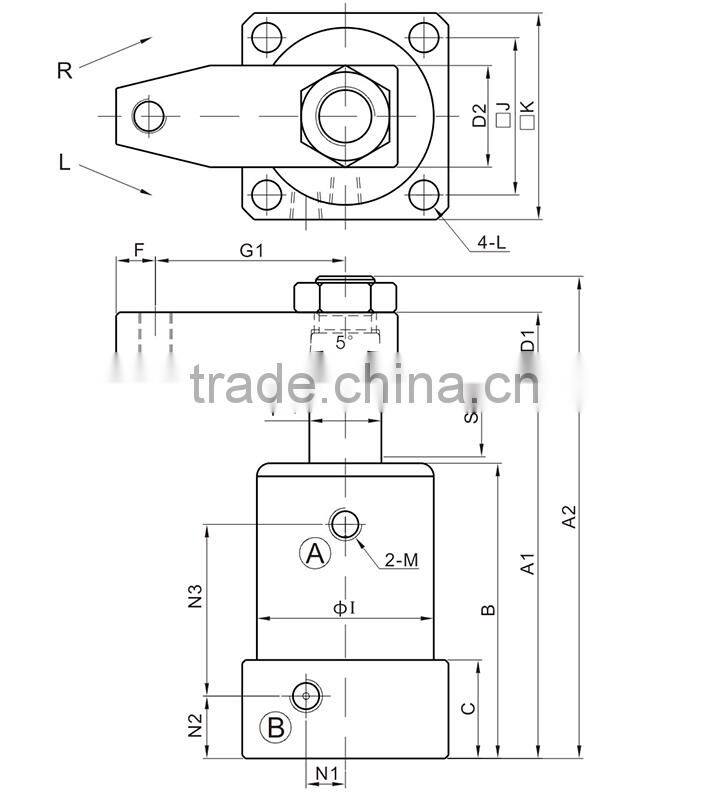

Drawing
Dimension table
Ordering code
| Packaging | |
| 1 | We adopt the advanced material Expansible Polystyrene(EPS) as inner packaging , which is more securer and eco-friendly than ordinary packing. Master cartons or wooden case packing in the outside. | |
|
We can also supply all kinds of packing ,according to customers' requirements: Shipping Marks, Bubble bags, etc.
Julyr industrial
Shipping
Julyr industrial
| By sea | Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | door to door service,the fastest and most expensive one, 3~6 days by express. |
If there is any problem or question, please don’t hesitate to contact us.
(contact info , please click here. ←_← )
|
Dongguan July® Hydro-pneumatic Equipment Co., Ltd, its predecessor called Changhua Hydro-pneumatic machinery factory, was founded in Taiwan in 1985, and then moved to Dongguan in 2008. With the increasing development of business, in 2014 our second factory Jiangxi Eagl® science and technology Co., Ltd was set up.
Having worked in numerous industries for years, our various experiences benefit us by knowing how to provide customers with the most efficient solutions.
July® have an efficient and professional R&D team of more than 20 people, and now have got 2 our own factories in China. |
Quality is our culture.
We have been obtaining lots of patents since 2008. We have also won the honorary title of national high-tech and innovative enterprise in China. Julyr® and Eagl® are our two brands. We are the appointed teaching and experimental base of Dongguan University of Technology. Any special requirement can be customized. |
|
Our products and equipment apply to many fields, especially machinery, automobile, electronic, shoemaking, mining, bags and suitcases industries. Our products are widely recognized and trusted by users and can meet the changing continuously economic and social needs.
Our manufacture base are all abtained the sales, development, production and service of the ISO 9001:2000 International Quality System Certificate. we often working with a number of regulatory certification agencies, including DNV, ABS, Lloyds, BV, GL, and CCS, etc.
There is a set of complete system to recording all material, production and inspection, which helps us to quickly tracking and solve any problems. |
|
July®’s partners are all over the world. So far, our metal cylinders, booster pumps, press machines, riveting machine,pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc. have been already exported to USA, Northern Europe, Australia, Russian Federation, South Asia, Mid-East, Brazil and dozens of other countries and regions. |
|
Learn more >>
Our Advantages
- Various style for each products and completely series pneumatic products for you to choose from.
- Large stock for fast shipping.
- High quality with competitive price
- Sample order & small quantity order is ok
- Customize according to your special demand.
- Provide free products information.
- Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website( Go our website,please click here. ←_← ), or just contact with us directly. Thank you!
Julyr industrial
Cooperation Terms
- Sample terms: Sample fee is charged and will be refunded when order is placed.
- Sample time: 3-5 working days
- Payment terms: 30% deposit and balance 7 days before delivery.
- Delivery Time: 3-5 weeks after sample confirmation.
Q: What products do you supply?
A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.
Q: Can you guarantee quality for orders?
A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.
Q: Can I have my brand and put my logo on the products?
A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.
Q: What’s your delivery time?
A: That depends. It usually takes 15-30 days for different products and quantity.
| Please feel free to contact us if any questions or problems, we are sure to provide you with best solutions. | |||
