Dongguan Supplier JULY High Pneumatic Pressure Test for Hose Testing

Product Description

• Gas Booster System is a complete gas booster units ready for connection which are provided for generating operating pressures up to 80Bar (1160psi). It is suitable for powering medium as gas .

•  As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.

• To operate this system, the air driven gas boosters have to be equipped with the air control unit for driven air pressure adjusted.

• The desired operating pressure can be attained by adjusting the driven air pressure through regulator valve.When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value.

• Ideal for power source of tipping system on rail tipper.

• Constant outlet pressure can be got through JL-STD10 Compressed air gas booster system

Key Features

• Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof.
• Pneumatically powered of oil free compression and clean air .No contamination  possible.
• Simple controlling and regulating processes because of the compressed-air drive.
• Robust and reliable operation in hardest operating enviroment.For example.

System Configuration

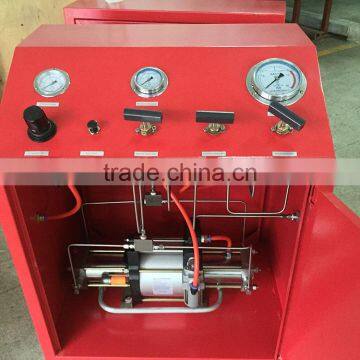

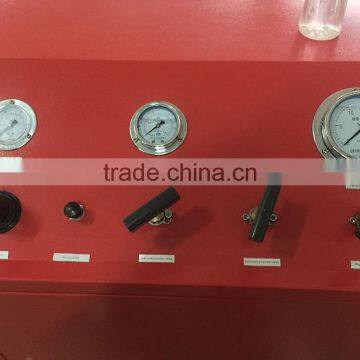

JL-STD10 gas booster system mainly includes one piece of JL-STD10 air driven gas booster,pressure gauges,air filter,gas inlet filter, control valves,air regulating valve, pipelines,cabinet,high pressure buffer vessel(1L,50Mpa),high pressure regulator(inlet pressure: 5Bar (72.5psi), outlet pressure: 80Bar (1160psi), high pressure relief valve
80Bar (1160Psi), pressure release valve etc.

Technical parameters

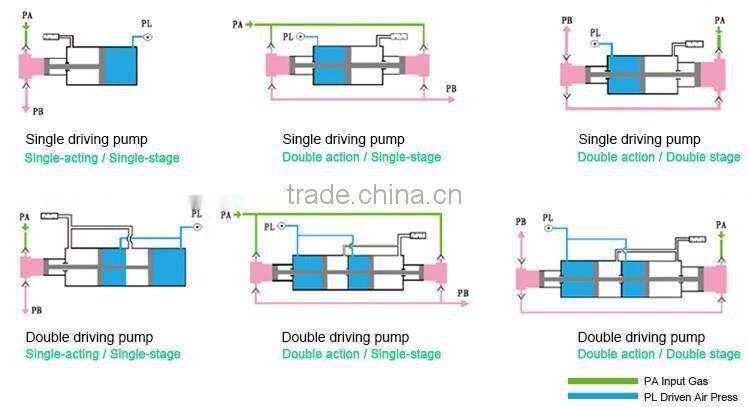

The working principle of Air Driven Gas Booster
