Home > Products > Shotcrete machine > Hot Sale High Quality Electric Drive Concrete Spray Machines
Hot Sale High Quality Electric Drive Concrete Spray Machines
- Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or other
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory Price High Efficiency Dry Concrete Spray Machines
-
Popular in Malaysia High Quality Dry Shotcrete Machine for Sale
-
Professional High Quality Concrete Spraying Machine for Sale
-
Anti-explosion Air Pneumatic Brake Windlass Winch
-
6 Air Cylinder Pneumatic Piston Motor for 1 Ton Hand Operated Air Winch
-
1 Ton ISO Supplier Mining and Construction Used Air Motor Winch
Product Details
| Condition | New | Max. Conveying Distance | 200m | |
| Max Aggregate Size | 10 mm | Hose Inner Diameter | 51 mm | |
| Air Consumption | 6 m³/min | Place of Origin | Henan, China | |
| Brand Name | LEC | Model Number | LZ-3E | |
| Voltage | optional, 220V, 380V, 440V, 660V, 50Hz/60Hz | Power(W) | 3KW | |
| Dimension(L*W*H) | 1.13*0.54*1.02m | Weight | 430kg | |
| Certification | CE, ISO and so on, ISO,SASO and CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot sale high quality electric drive concrete spray machines
Description:

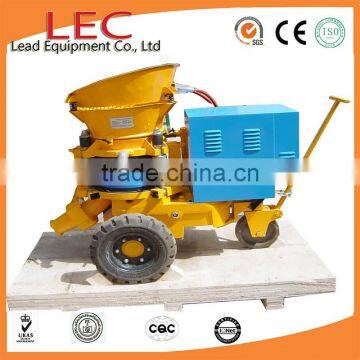

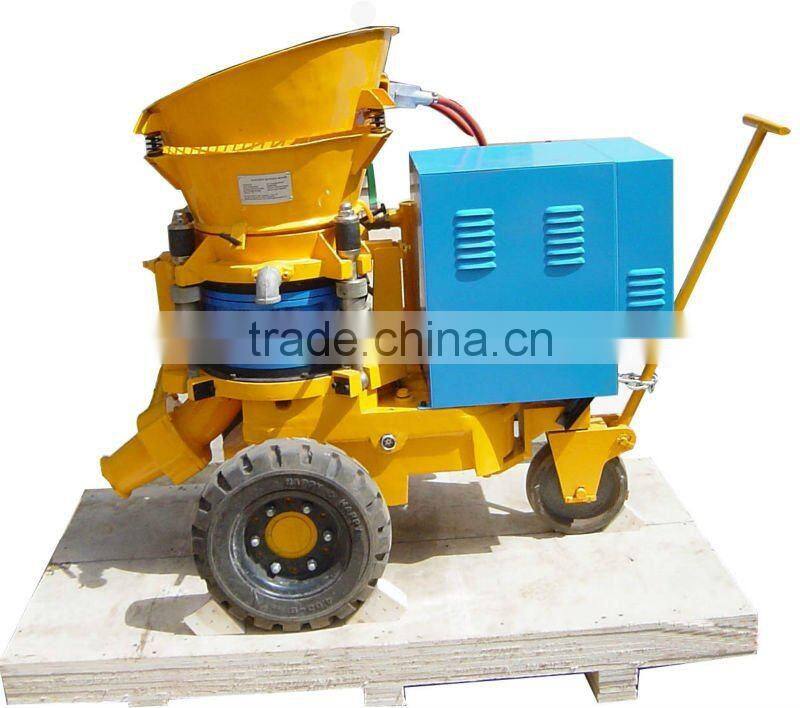

LEC Brand LZ-3E electric drive concrete spray machine is small-sized shotcrete machine/equipment/Gunning machine for the dry spraying process.
It can be used for small jobs or compact worksite, such as joint filling, swimming pool, refractory application work, etc.
We can offer other versions: air motor or diesel drive combined skid or rail-wheel shotcrete machine.
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
LZ-3E electric drive concrete spray machines data
Specification (with Electric motor drive): | |
Rated Output | 3m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1: 3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 10 mm |
Conveying Hose Inner Diameter | 42/51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 5~6m³ /min(180-215CFM |
Motor Power | 3kW(4hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 0.9m |
Rotor Speed | 13.2r/min |
Overall Dimension(L× W× H) | 1.13× 0.54× 1.02m |
Net Weight | 430kg |

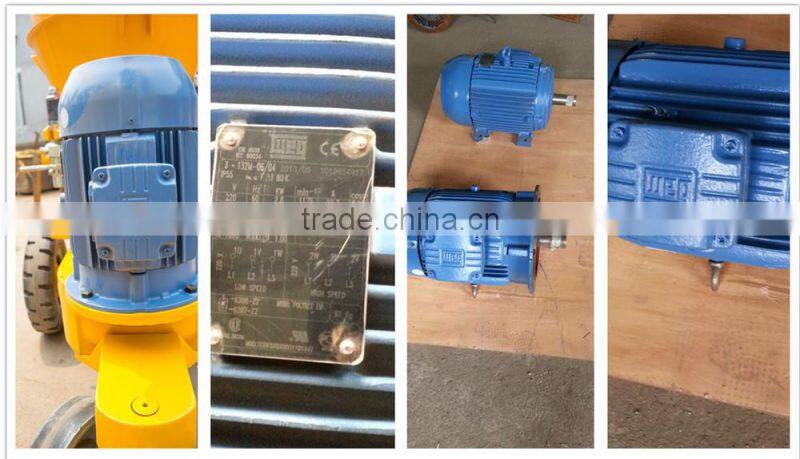

Accessories of Gunning Machine :

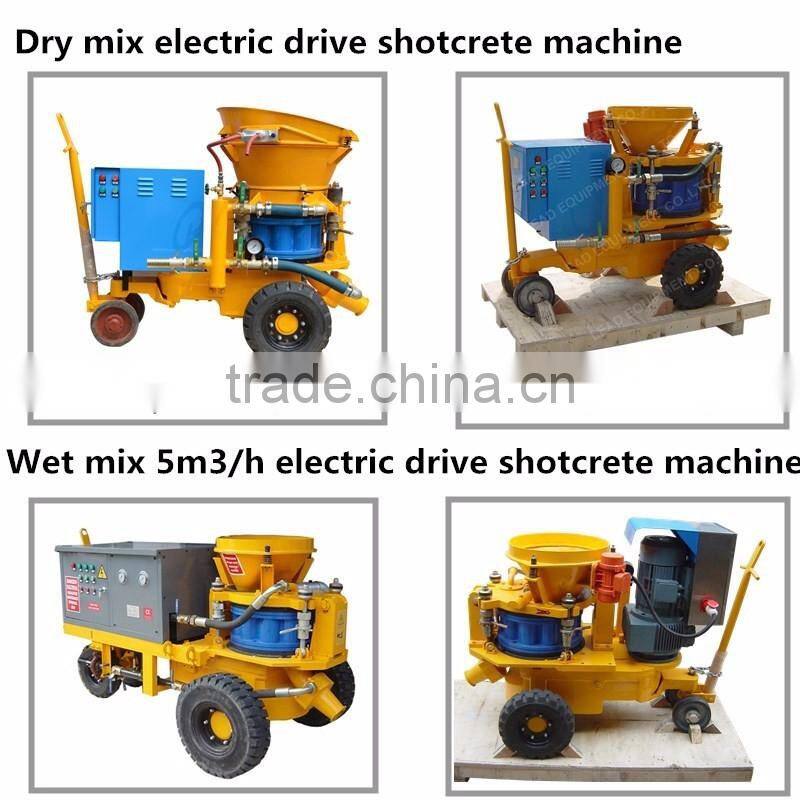

Other electric drive concrete spray machines
LZ3000E wet-mix concrete spraying machine video application:

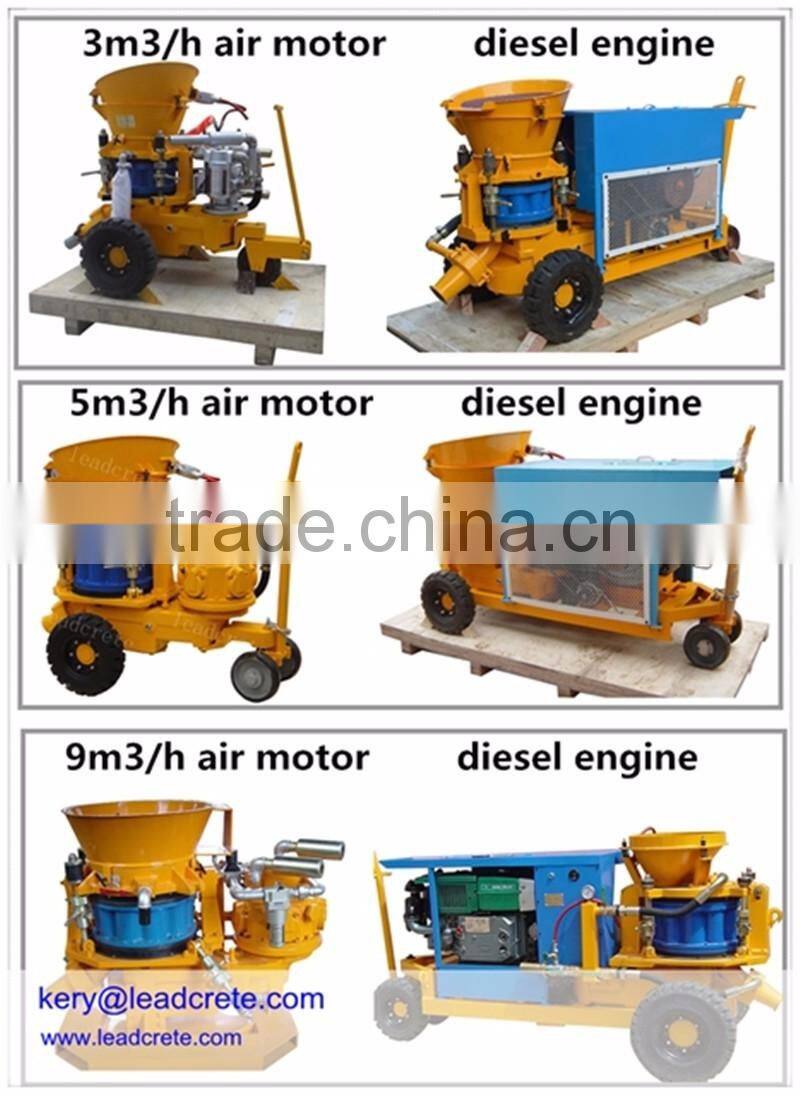

Other air motor or diesel drive dry mix concrete spray machines we supply:

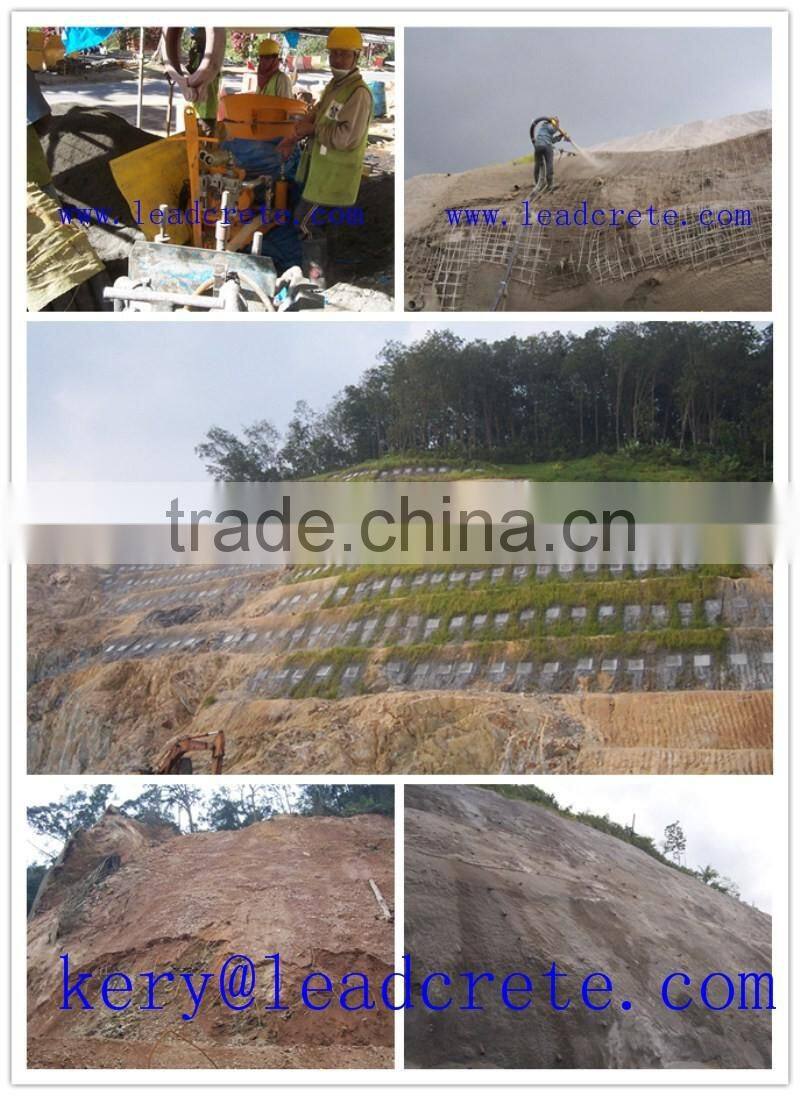

LZ-3E electric drive concrete spray machines On Site:
Package:
Why choose us ?
1. We are China's leading gunning machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certifications our company:
FAQ:
Thank you for your time and welcome to visit our factory!
