Well Performance Easy Operated and Maintained Piston Type Pneumatic Motor
- Shanghai or Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
6AM -4HP Portable Efficiency Air Powered Driven Motor Vane , Air Motor Blade
-
3 Ton Oil Field Air Pneumatic Winch Cable Pulling Equipment for Sale
-
1 Ton High Quality Portable Hand Brake Air Pneumatic Winches Used for Mine or Construction
-
2AM -0.93HP Small 100% Explosion-proof China Manufacturers Vane Air Motors
-
Hot Selling Anti-explosion Single Drum Air Winch 10 Ton
-
2 Ton 20 KN Manual Air Winches Used for Oil Field
Product Details
| Place of Origin | Henan, China | Brand Name | LEC | |
| Model Number | TMH |
Product Description

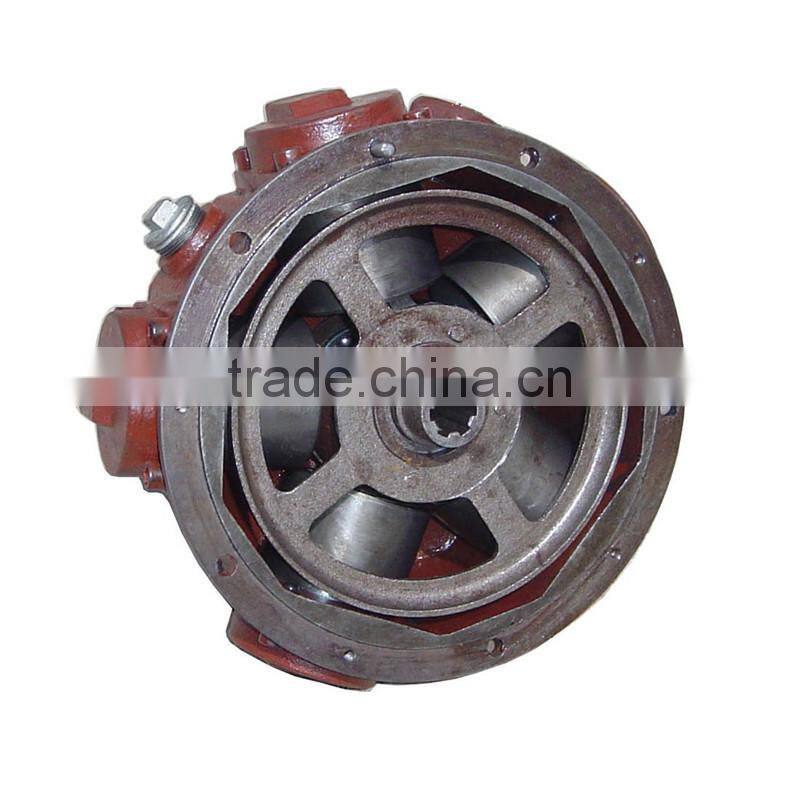

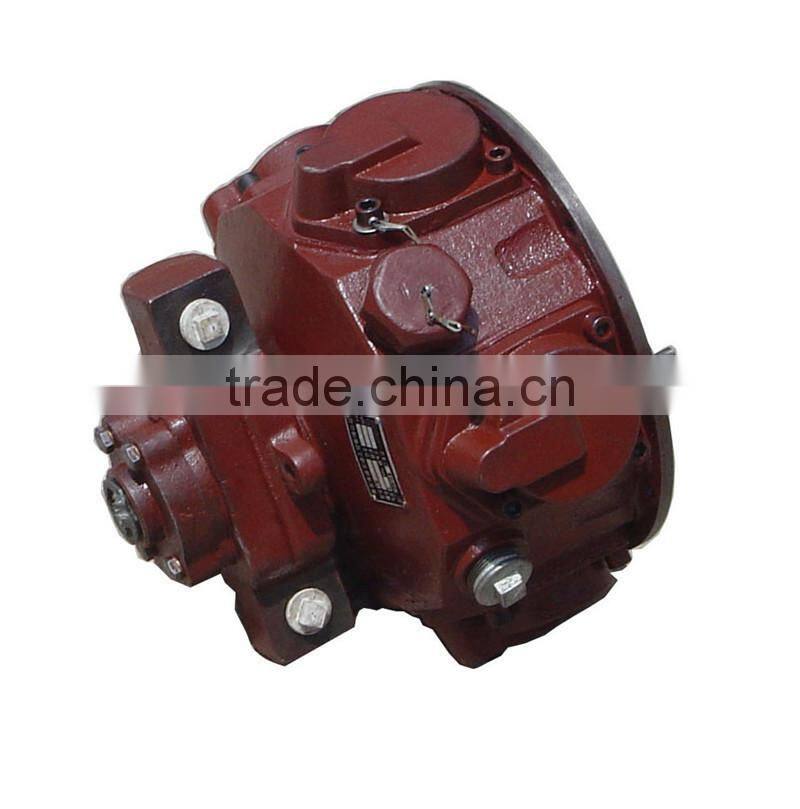

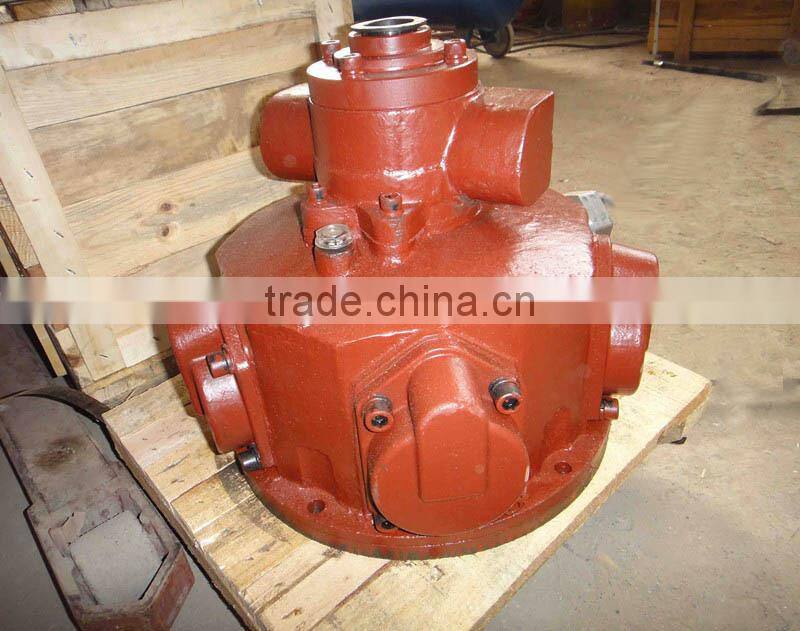

Well performance easy operated and maintained piston type pneumatic motor
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD15000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
1. Product Discription:
With compressed air as actuating medium, piston air motor converts the pressureenergy of compressed air into rotary mechanical energy. Compared to vane air motor, it has larger size and weight, lower speed, and more complex structure as per power unit, but has high started torque, well performance in low speed andlonger life expectancy. It also has the feature of proof water, fire, moisture, explosion and high temperature, and has the advantages of overload automatic parking, and can start under loads. So it is also used in various trades and industries.
2. Pneumatic motor Features:
1proof water, fire, moisture, explosion and high temperature
2overload automatic parking, can start under loads

3. The air motor applications
Air motors are suitable for heavy duty applications.
Based on said features, air motors are widely used in industry fields, especially in extreme circumstance, where electric motors or other engines can not work. The typical industrial applications:
n Pneumatic Mixers
n Pneumatic conveyer
n Drill machine
n Gunite machine
n Pneumatic Winch
Technical Data:
Model | Rated Power Kw(hp) | Rated Rev. RPM | Rated Torque NM | Starting Torque NM | Air Consumption m3/min(CFM) | Working Pressure Mpa(PSI) | Weight KG(lbs) |
TMH3 | 3(4) | 2800 | 10 | 13 | 3.6(129) | 0.5(66) | 24 |
TMH3B | |||||||
TMH3D | |||||||
TMH3.2 | 3.2(4.4) | 1000 | 30.5 | 39.7 | 3.84(137) | 0.5(66) | 22 |
TMH4 | 4(5.4) | 1000 | 38 | 49 | 4.8(171) | 0.63(83) | 30 |
TMH4D | |||||||
TMH4A | |||||||
TMH6 | 5.88(8) | 900 | 62.6 | 81 | 8(286) | 0.63(83) | 72 |
TMH6A | |||||||
TMH8 | 8(10.9) | 650 | 117.5 | 152 | 9.4(336) | 0.63(83) | 74 |
TMH15 | 14.7(20) | 650 | 216 | 280 | 17(607) | 0.63(83) |
|
TMH15A | |||||||
TMH18.4 | 18.4(25) | 600 | 286 | 371 | 21.5(768) | 0.63(83) |
|
TMH22 | 22(30) | 600 | 300 | 400 | 21(750) | 0.63(91) |
|
TMH25 | 25(34) | 600 | 380 | 480 | 27.3(975) | 0.8(115) |
|
Package:
Factory:
Thank you for your time, welcome to contact us and visit our facory!
Website:
Skype ID: lee.mariah2
FAQ:
Please inform us more detail information as followings,so we can recommend suitable type for you
1. What machine used in ?
2. How much is the power, torque and speed you need?
