Supplier Hand Brake Air Winch for Sale
- Shanghai Sea Port or Customized
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory 4AM Mini Flange Mounting Vane Air Motor
-
Made in China Pneumatic Air Drill Powered Winch Manufacturers
-
Made in China Proof Explosion Gearbox Vane Air Pneumatic Motor for Sale
-
Explosion-proof Blade Vane Air Pneumatic Motor
-
High Speed Low Torque Air Motor for Pneumatic Mixers
-
ISO Small Size Oilless Vane Air Motor Supplier
Product Details
| Place of Origin | Henan, China | Brand Name | LEC | |
| Model Number | 5 ton air winch | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Supplier Hand Brake Air Winch for sale
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription:

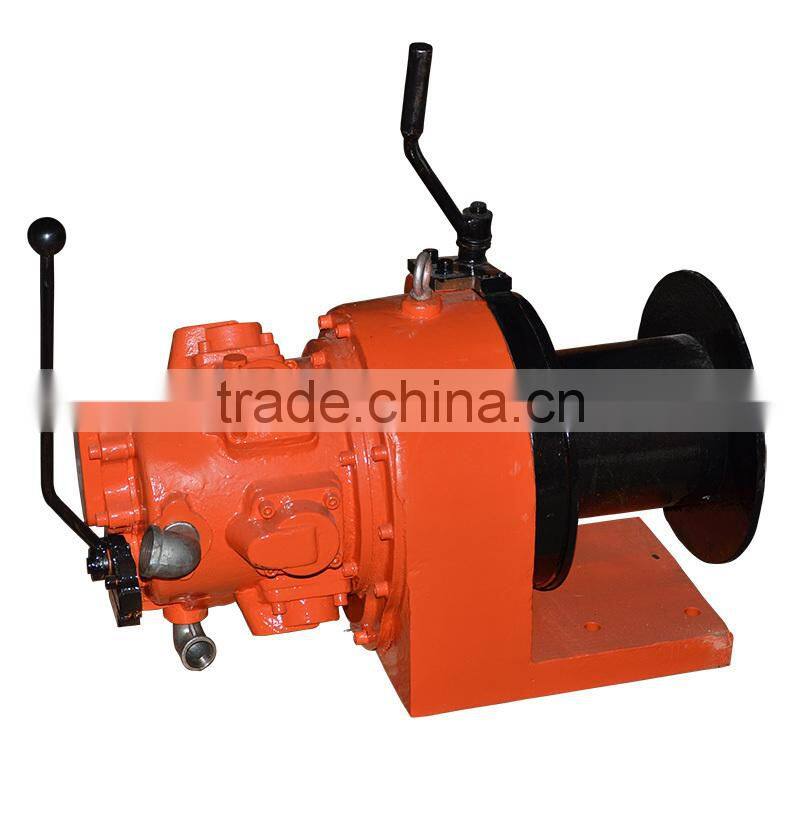

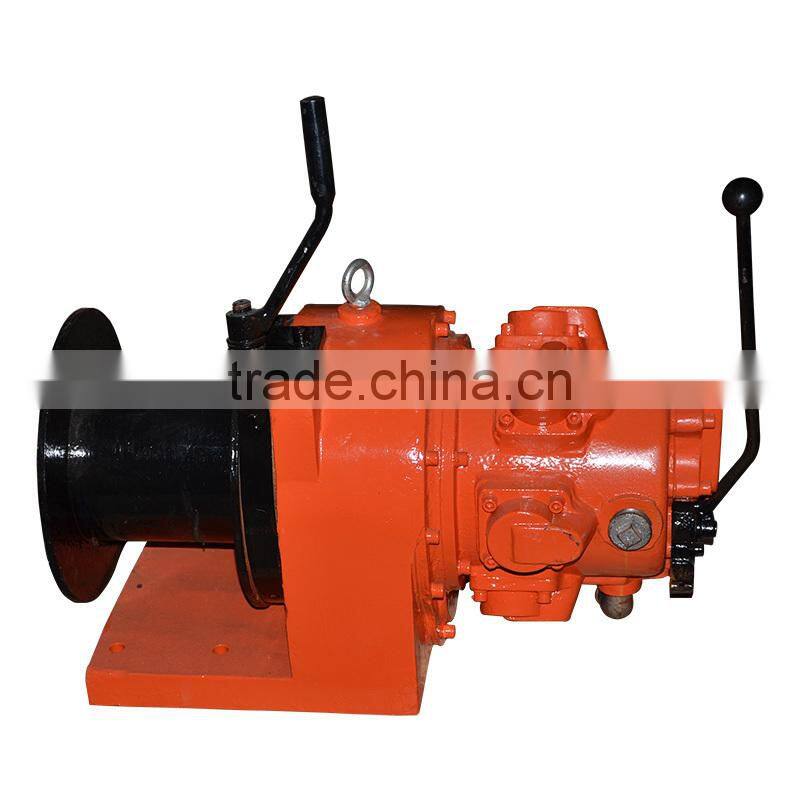

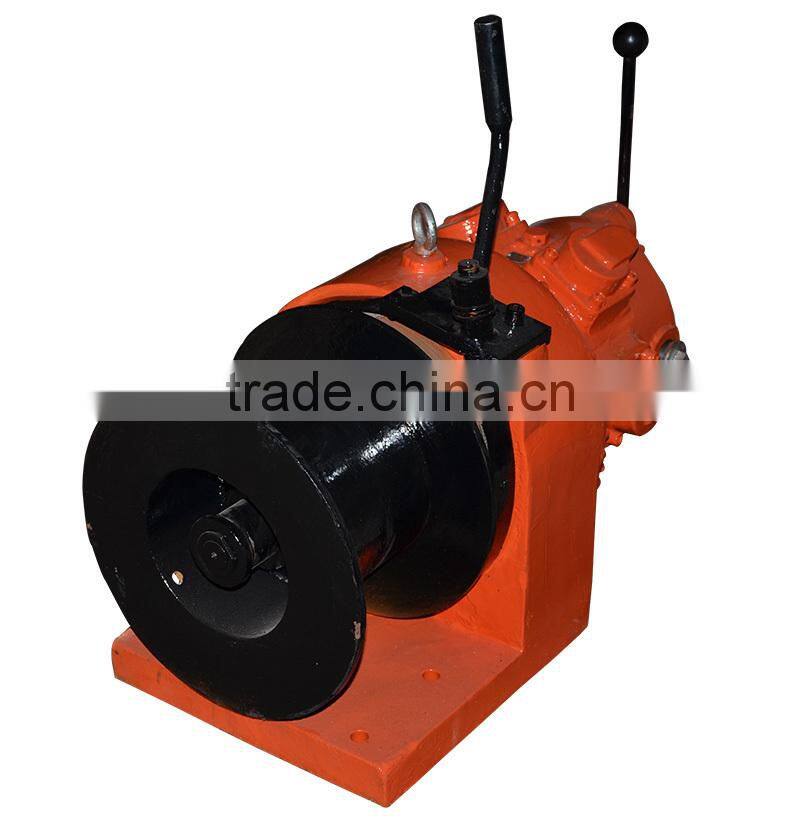

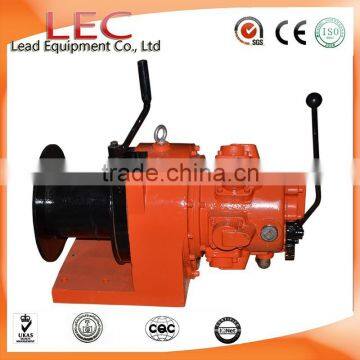

This 1 ton air winch is powered by TMH4A piston air motor and hand operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.
It has reasonable design, compact structure, and it’s also easy to transport and install.
Technical Data:
1 Ton Air Winch | |||
1 | Air pressure(Mpa) | 0.6 | |
2 | Rated Tension(KN) | 10 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 4.4 |
Cylinder Qty.(pcs) | 6 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 180 | ||
width(mm) | 200 | ||
Rope capacity(m) | 120 | ||
6 | Rope diameter(mm) | 8 | |
7 | Air hose diameter(mm) | 25 | |
8 |
dimension
| length(mm) | 757.5 |
width(mm) | 350 | ||
height(mm) | 521 | ||

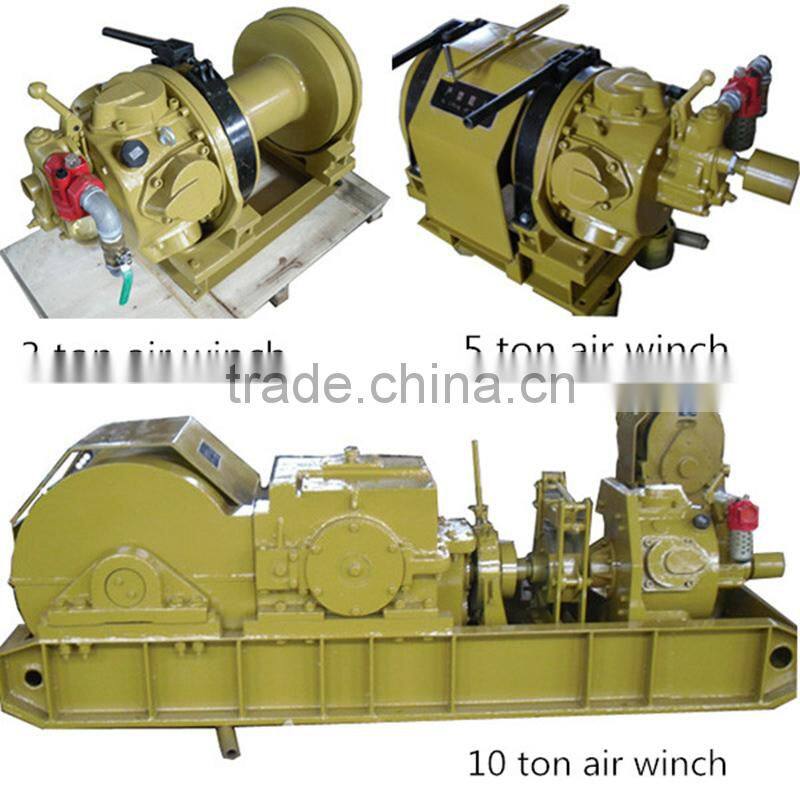

Other Model of air winch

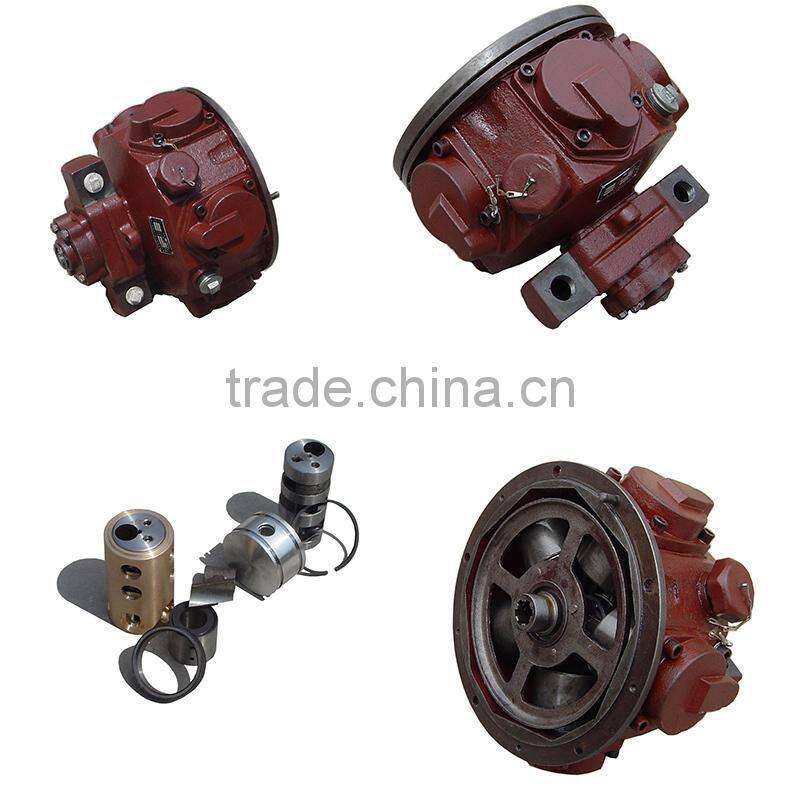

Air motor used for air winch :
Package:
Factory:
