Factory 4AM Mini Flange Mounting Vane Air Motor
- Shanghai Sea Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Made in China Pneumatic Air Drill Powered Winch Manufacturers
-
Made in China Proof Explosion Gearbox Vane Air Pneumatic Motor for Sale
-
Explosion-proof Blade Vane Air Pneumatic Motor
-
High Speed Low Torque Air Motor for Pneumatic Mixers
-
ISO Small Size Oilless Vane Air Motor Supplier
-
3 Ton Explosion-proof Ingersoll Rand Piston Air Pneumatic Winch
Product Details
| Place of Origin | Henan, China | Brand Name | LEC | |
| Model Number | 4AM-F114.3 | Type | Other, pneumatic motor, Pneumatic tool | |
| Average Air Consumption | 78cfm | Maximum Torque | 4.1NM/36 Ib.in | |
| No-Load Speed | 3000 |
Product Description

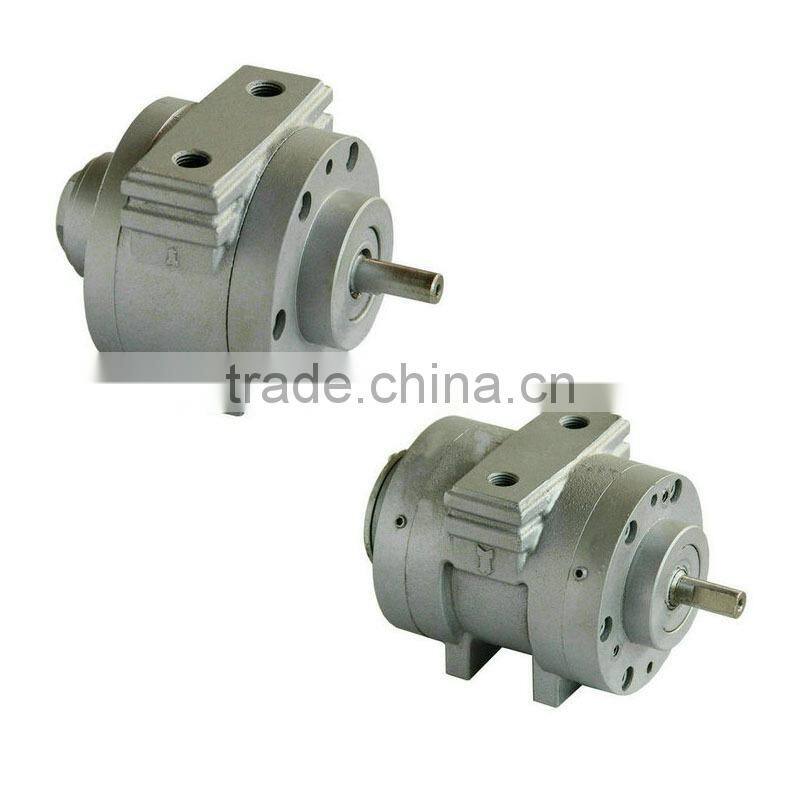

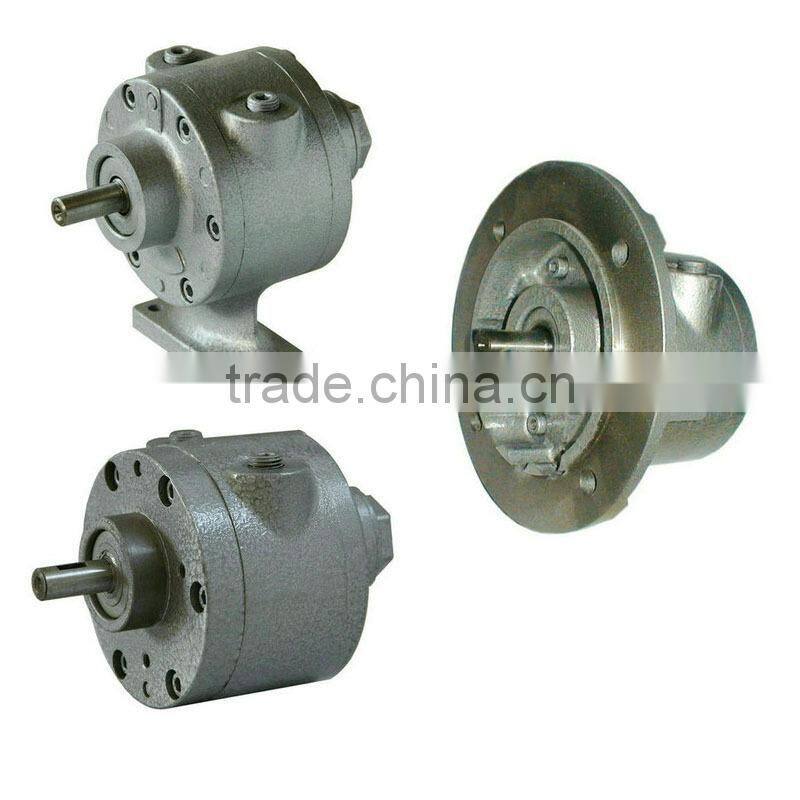

Factory 4AM Mini Flange Mounting Vane Air Motor
Trade Assurance:
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Product Discription:
Vane air motor description:
With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, petrochemical, volatile atmosphere, paper and other industries.
Vane air motor features:
1. Great for harsh environments: It does not build up heat or sparks make air motors ideal for use in flammable or explosive applications.
2. Intrinsically safe in hazardous environment, can work in humid, high temperatures, high dust and other proof working environment, for example: Mines , petrochemical ,volatile atmosphere, flammable or explosive applications.
3. These air motors can be coupled with gearboxes to increase torque and reduce speed.
4. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
5. Air motors can easily operate under conditions which are unfavorable electric, hydraulic, stepper and servo motors.
Applications:
1. Winches
2. Oil and gas industry for air winches
3. Mining equipment
4. Shotcrete machine …
Technical Parameter:
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
1UP | 0.45 | 0.33 | 0.58 | 5.25 | 6000 | 47 | 27 | 500 | 0.68 | 6.0 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |
Oilless Air Motor:

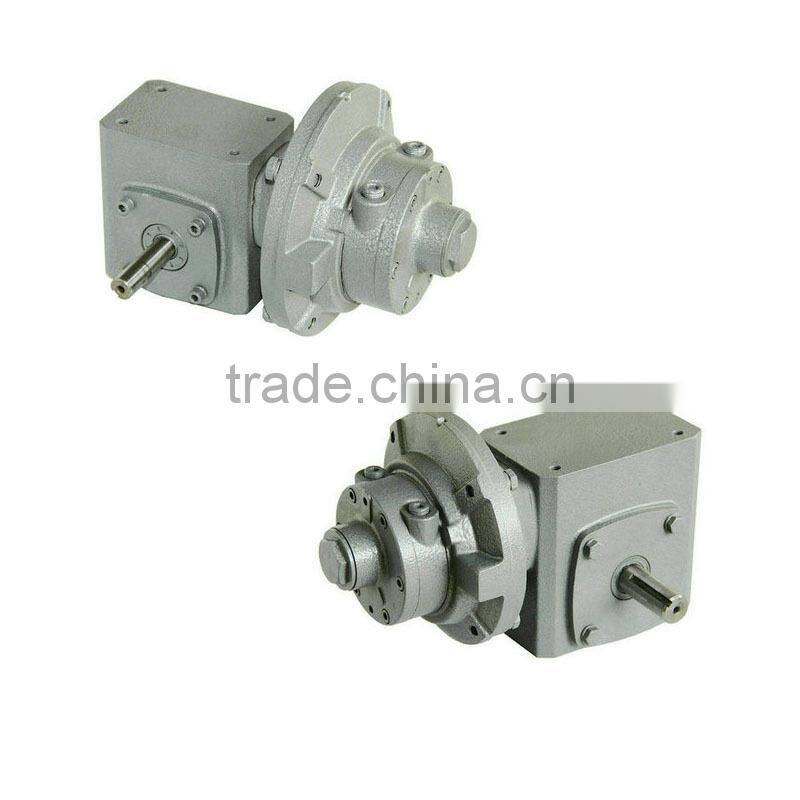

Air Gear Motor:

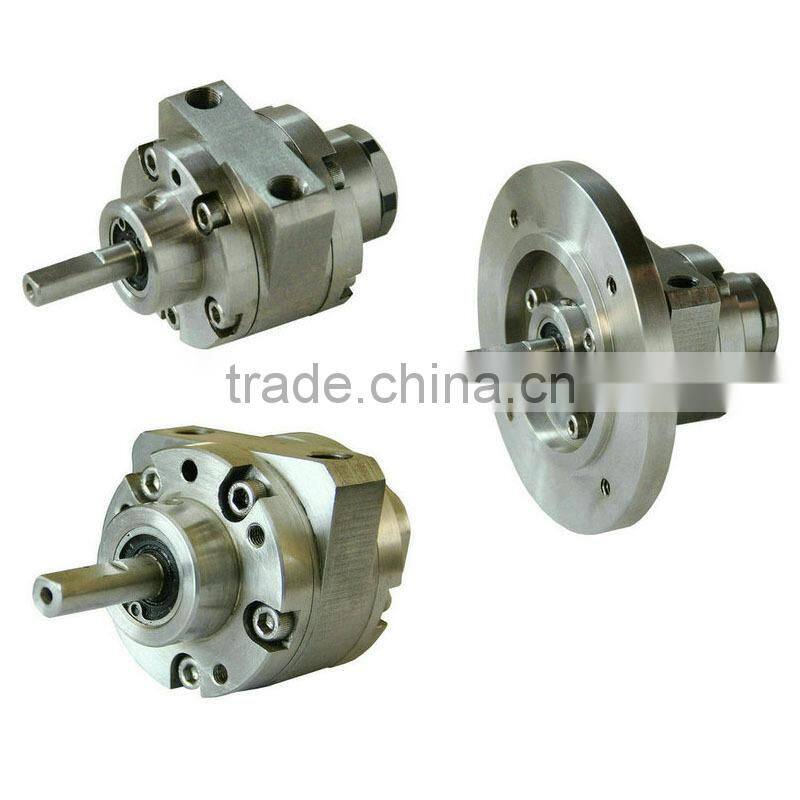

Stainless Steel Air Motor:

Package :
Factory Information:
Certification:
