Electric Drive Professional Wet Shotcrete Machine
- Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or other
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot Sale Electric Motor Drive Concrete Spraying Machine for Sale
-
Hot Sale Diesel Drive Dry Mix Shotcrete Machine
-
Professional Supplier Diesel Drive Concrete Spraying Machine for Sale
-
Widely Application Professional Dry Mix Gunite Machine
-
Hot Sale High Quality Electric Drive Concrete Spray Machines
-
Factory Price High Efficiency Dry Concrete Spray Machines
Product Details
| Condition | New | Max. Conveying Distance | 35 m | |
| Max Aggregate Size | 15 mm | Hose Inner Diameter | 64 mm | |
| Air Consumption | 10-12 m³/min | Place of Origin | Henan, China | |
| Brand Name | LEC | Model Number | LSZ3000E | |
| Voltage | optional | Power(W) | 7.5 KW | |
| Dimension(L*W*H) | 2.05*0.95*1.18m | Weight | 1200 KG | |
| Certification | CE, ISO and so on | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

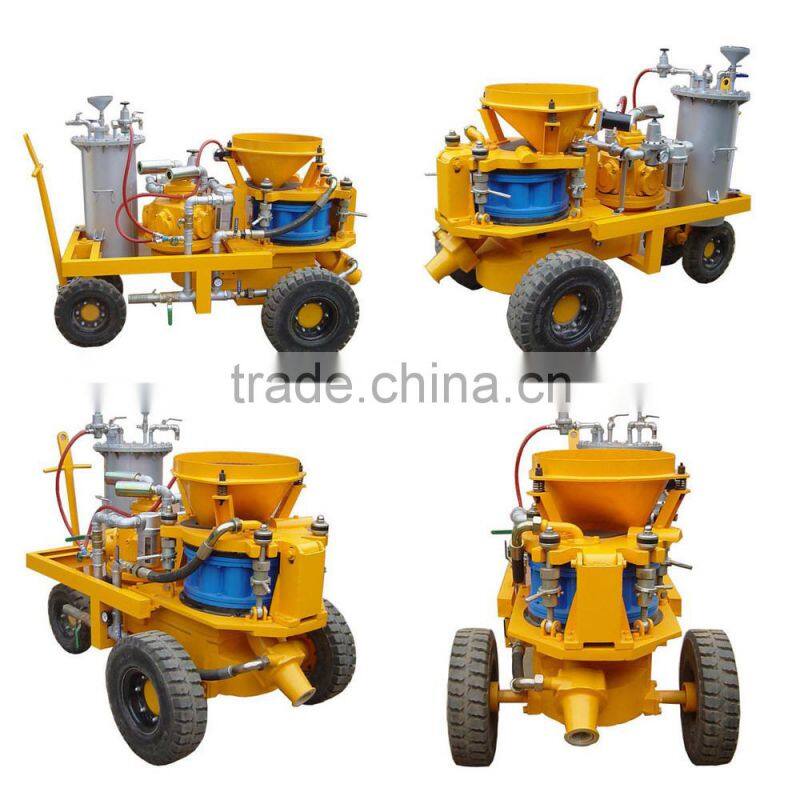

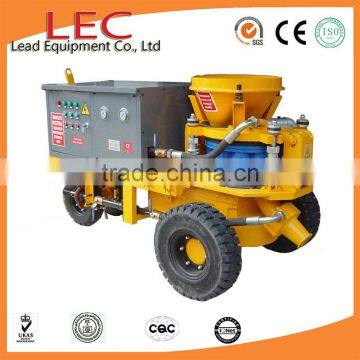

Electric drive professional wet shotcrete machine
LSZ3000E electric drive professional wet shotcrete machine description:
LSZ3000E wet shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000E wet shotcrete machine is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fiber spraying. And the dosing unit is combined with this machine. The spare parts we adopted are very durable.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel

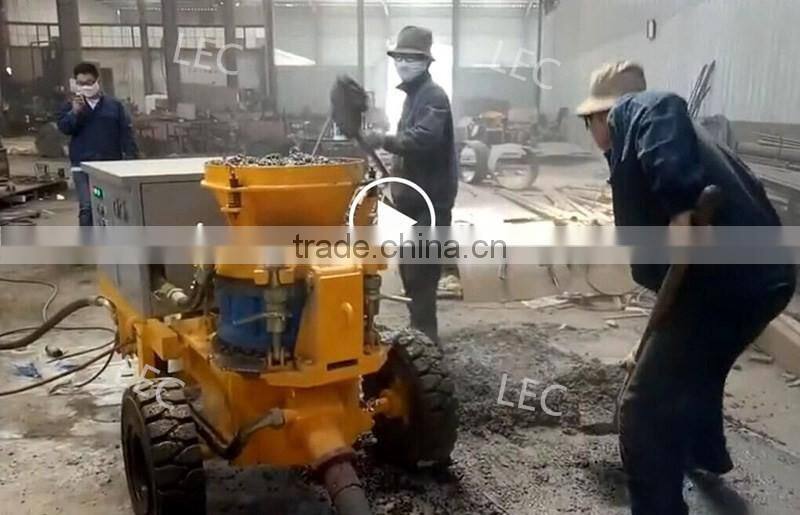

LZ3000E wet-mix concrete spraying machine video application:
LSZ3000E electric drive professional wet shotcrete machine technical data:
Electric drive:
Rated Output | 5m3 /h |
Max. Horizontal Conveying Distance | 35m |
Max. Aggregate Size | 15mm |
Concrete Slump | 8 -15cm |
Conveying Hose Inner Diameter | 51/ 64mm |
Operating air Pressure | 0.3-0.6MPa (43-86PSI) |
Air Consumption | 10~ 12m3 /min(357-430CFM) |
Main Motor Power | 7.5kW(10hp) |
Dosing Pump: | BRJ15 |
Dosing Pump Rated Pressure | 0.6MPa(86PSI) |
Dosing Pump Output | 17.5 -88L /h |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.17m |
Rotor Speed | 11r/min |
Overall Dimension(L × W × H) | 2.05× 0.95× 1.18m |
Net Weight | 1200kg |

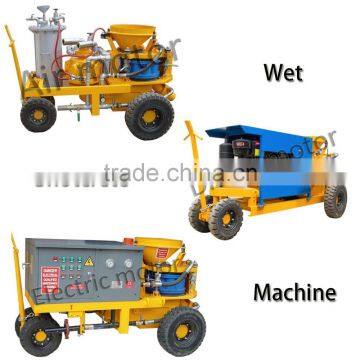

LSZ3000A dry and wet mix shotcrete machine

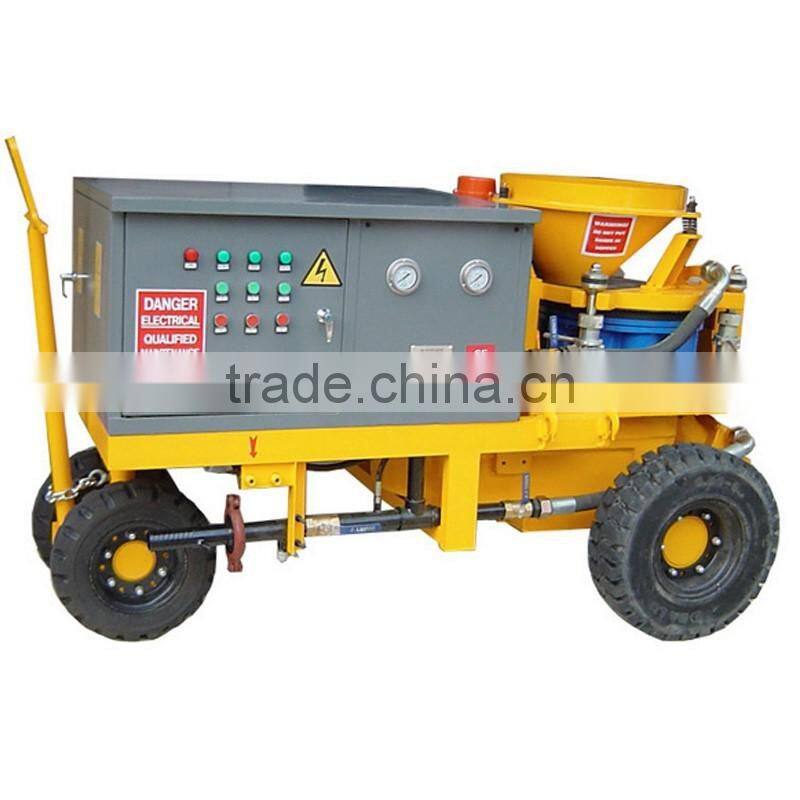

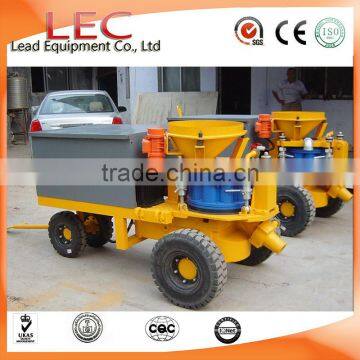

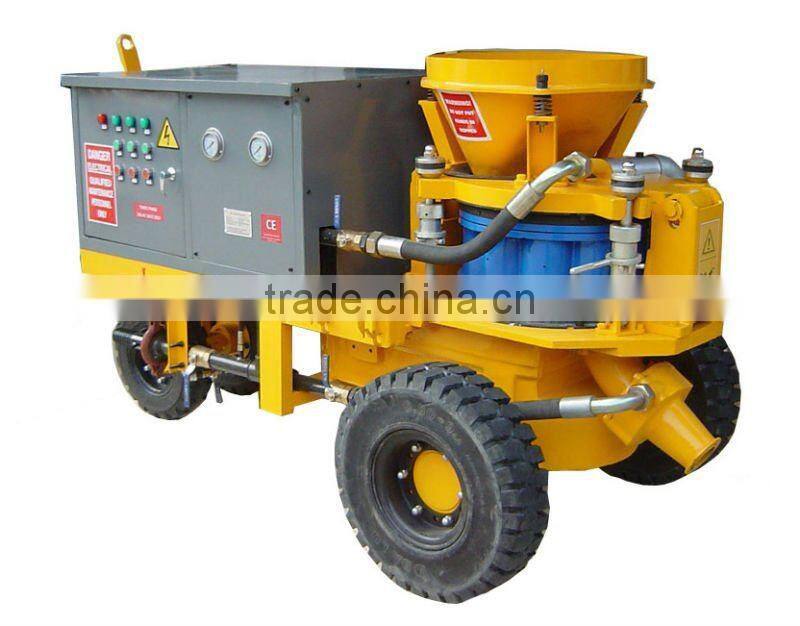

LSZ3000E dry and wet mix shotcrete machine

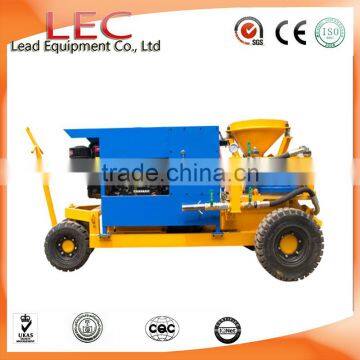

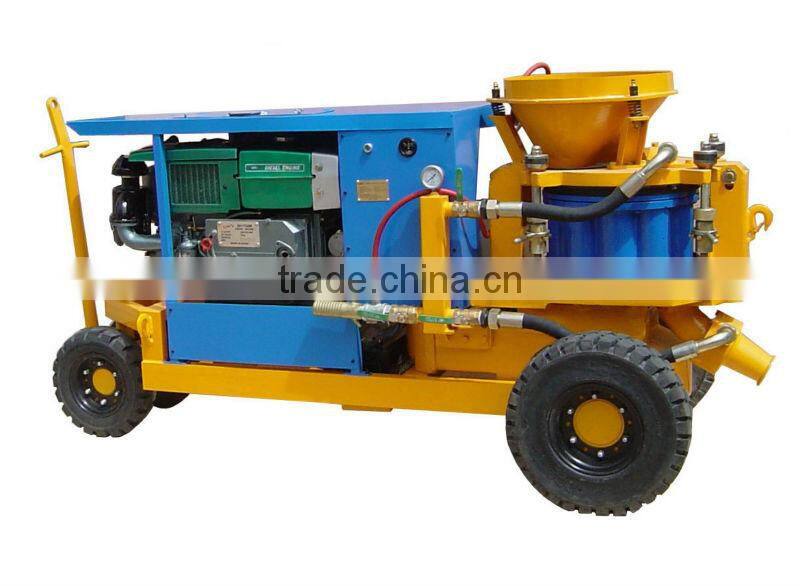

LSZ3000D dry and wet mix shotcrete machine

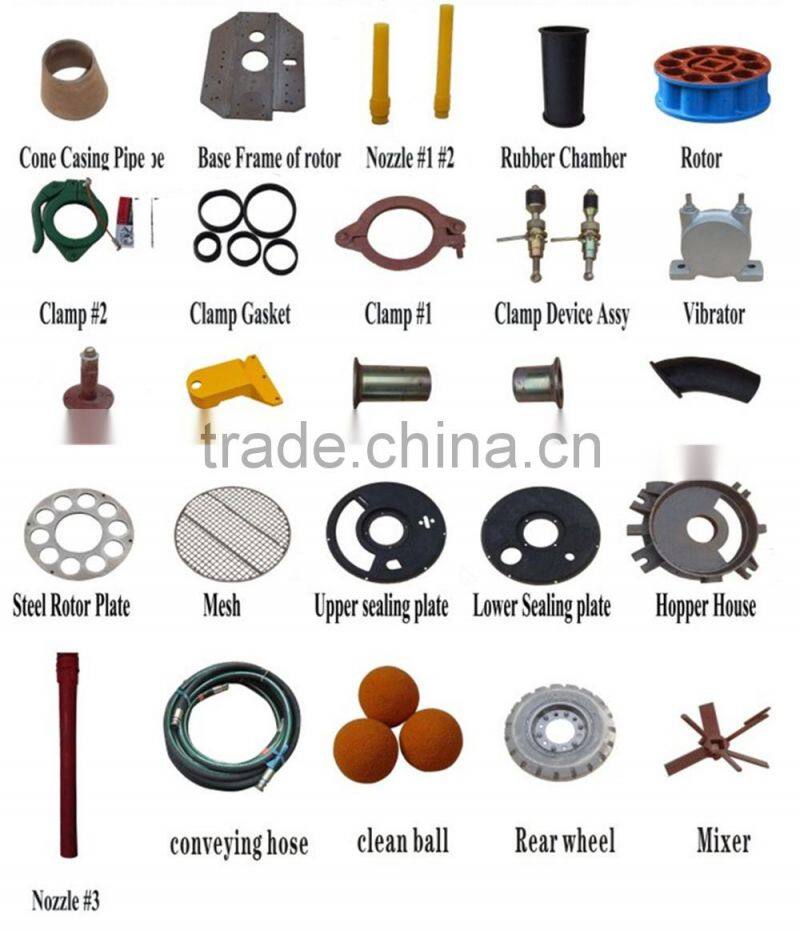

Accessories of Wet Shotcrete Machine :

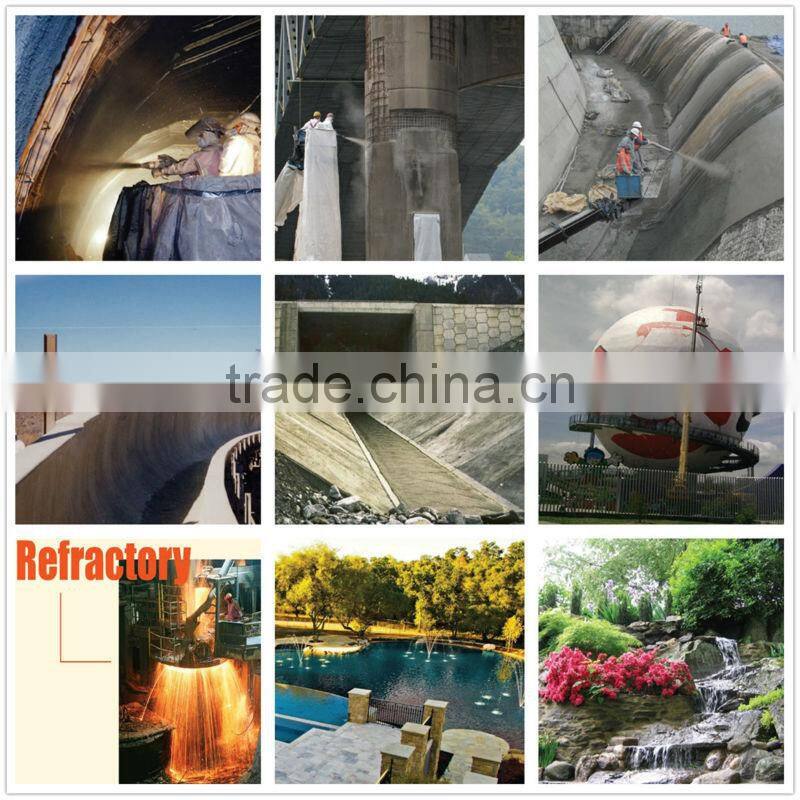

LSZ3000E electric drive professional wet shotcrete machine application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD33000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

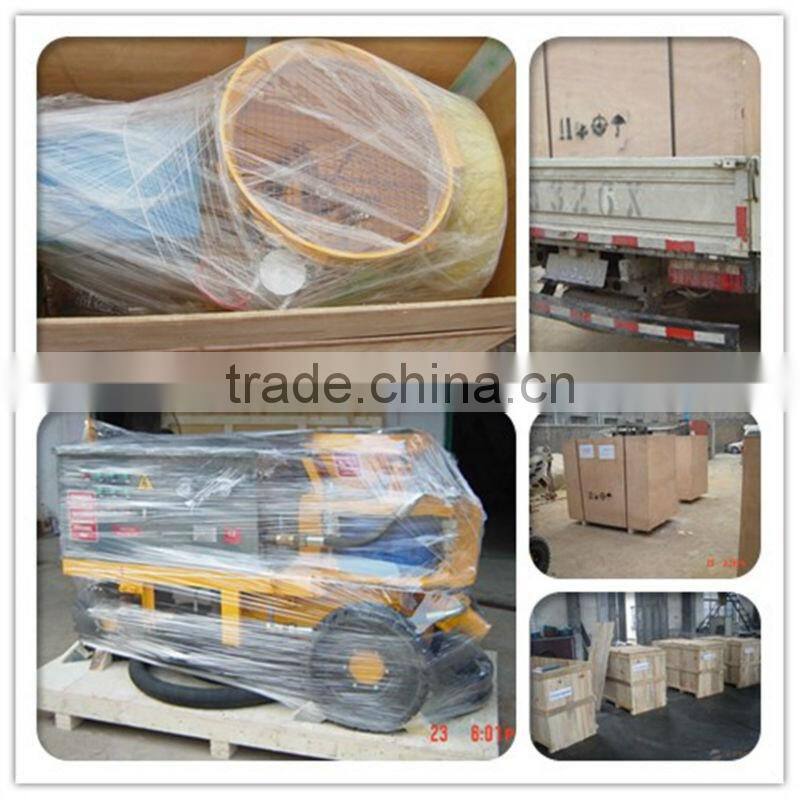

Package of LSZ3000E electric drive professional wet shotcrete machine:
Why choose us ?
1. We are China's leading shotcrete machine manufacturers.
2. Companies have strict quality control system. And has achieved ISO9001: 2008, CE and SGS certification.
3. Alibaba Assessed 5 years Gold Supplier.
4. Trade Assurance protects trade safety :
(1) Product quality protection (2) On-time shipment protection (3) Payment protection
5. Best Quality & Best Service with Competitive price.
Factory:
Certification of our company:
FAQ:
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.

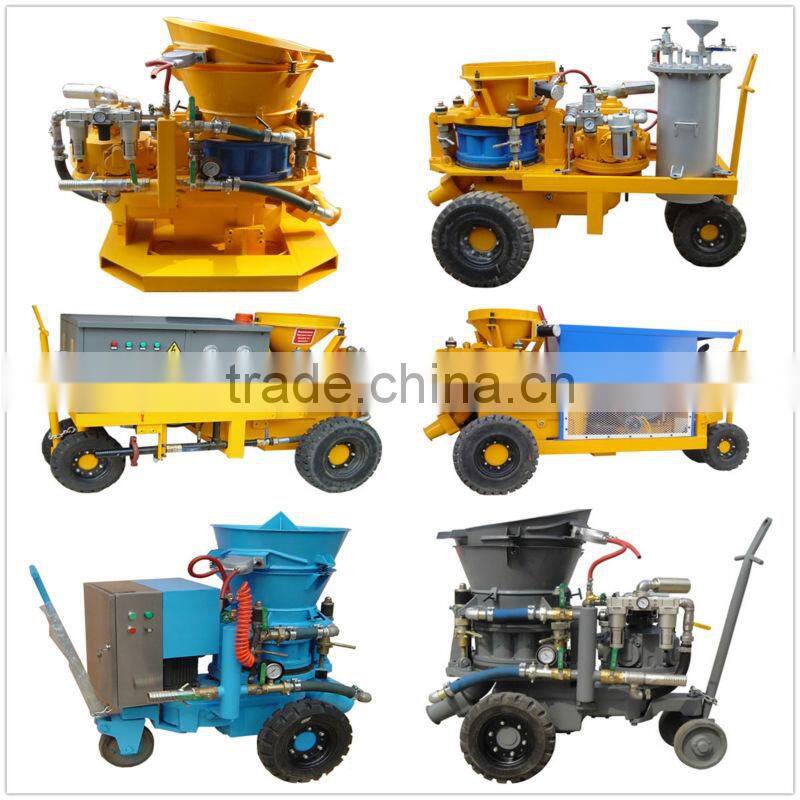

Other concrete spray equipment we supply
If you have any question please feel free to contact me:
Thank you for your time and welcome to visit our factory!
