Home > Products > Straight wire drawing machine > best price wire drawing machine line
best price wire drawing machine line
USD $25,000 - $70,000
/ Set
1 Set(Min.Order)
- 5 Set / Sets per Month
- Shanghai China or your side
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | Wanyi | |
| Model Number | straight type-LZ | Voltage | 380V | |
| Power(W) | 55kw each | Dimension(L*W*H) | 8000X1600X1500MM | |
| Weight | 8000kg | Certification | ISO9001:2008 CE TUV | |
| Warranty | ONE YEAR FREELY | After-sales Service Provided | Overseas service center available |
Product Description
Quick Details
| Place of Origin: China (Mainland) | Model Number: LZ9/700 | Type: Wire Drawing Machine |
| Use: Wire drawing | Drawing material: Low, high carbon, stainless w... | Main market: Africa, South America, MiddleEast,... |
| Quality: ISO,CE SGS or other inspection | Price: Favourable | Delivery time: 2 months |
Packaging & Delivery
| Packaging Detail: | container |
| Delivery Detail: | 1.2 months |
Specifications

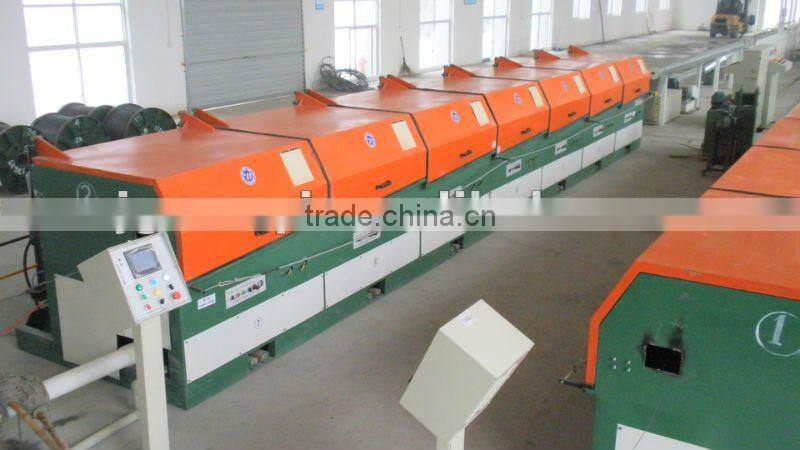

Straight Line Wire Drawing Machine
Max inlet dia:14mm, Min outlet dia:0.7mm
Speed:300-1000m/min
Capstan dia:350-1200mm
Straight Line Wire Drawing Machine...
Main Technical Parameters:
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/600 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 60 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
