Home > Products > Straight wire drawing machine > mild wire drawing machine LZ4/400

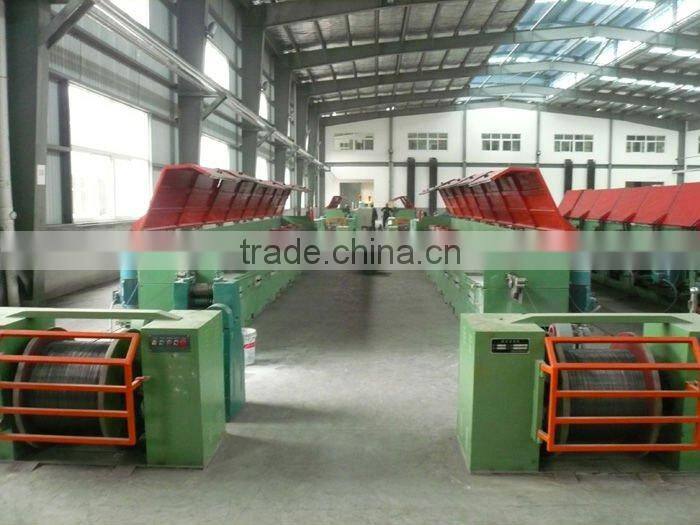

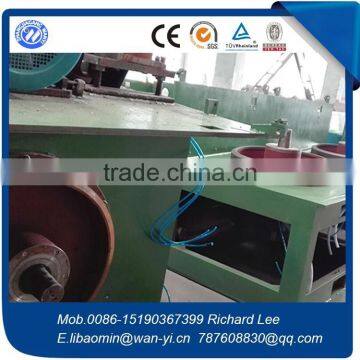

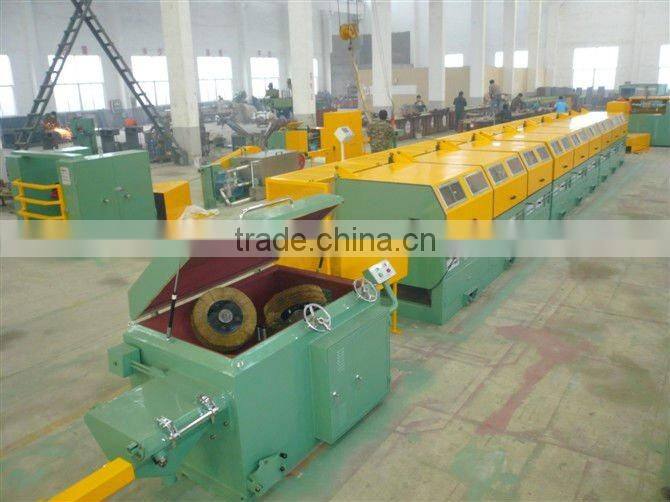

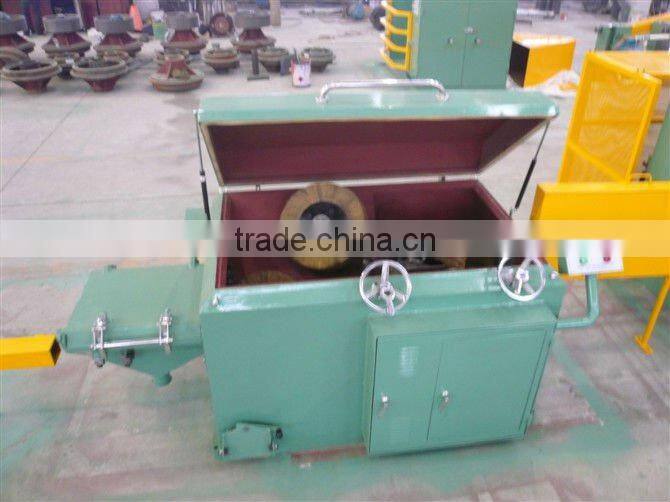

mild wire drawing machine LZ4/400
USD $30,000 - $55,000
/ Set
1 Set(Min.Order)
- 6 Set / Sets per Month
- shanghai or as u need
- T/T
You May Like
Product Details
| Condition | New | Type | Wire Drawing Machine | |
| Use | Wire | Place of Origin | Jiangsu, China | |
| Brand Name | wanyi | Model Number | LZ4/400 | |
| Voltage | 380V | Power(W) | 7.5KW-45KW | |
| Dimension(L*W*H) | 8500X1560X1600MM | Weight | 6500kg | |
| Certification | CE SGS | Warranty | one year freely | |
| After-sales Service Provided | Overseas service center available |
Product Description
Main Technical Parameters |
|
|
| ||
Specifications | No.of drafts | Max.inlet wire(mm) | duction(mm) | Motor power(kw) | Production speed(m/s) |
300 | 8~12 | 2.5 | 0.4 | 3~4.5 | 25 |
350 | 8~12 | 3.5 | 0.6 | 5.5~11 | 25 |
400 | 8~12 | 4.2 | 0.75 | 7.5~15 | 25 |
450 | 8~12 | 4.5 | 0.96 | 15~22 | 18 |
600 | 6~10 | 6.5 | 1.4 | 22~37 | 16 |
Contact Us
- Zhangjiagang City Wanyi Machine Factory
- Contact namelifeng zhang Chat Now
- Phone86-512-58525956
- AddressNo. 10, Lefeng Road, Zhaofeng Industry Zone, Leyu Town
