Wear-resisting ball mill scaleboard from reliable China supplier
- 40 Set / Sets per Month
- QingDao tianjin.shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot sale Rod mill machine manufacturer direct on selling
-
First class explosion-proof ball mill from China manufacturer
-
Reliable performance mini/small portable ball mill, movable ball mill 900*1800
-
Reliable performance mini/small lab ceramic ball mill for sale with ISO certificate
-
High efficiency glass milling ball mill with low price
-
Reliable performance mini/small portable ball mill, movable ball mill
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 7.5-200 Kw | |
| Capacity(t/h) | 1-80 | Place of Origin | Henan, China | |
| Brand Name | LanJi | Model Number | 1830*3000 | |
| Dimension(L*W*H) | 3.5*1.2*1.5m | Weight | 0.5-30 T | |
| Certification | ISO9001 | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Top quality ball mill liner from reliable China supplier
1. Application:

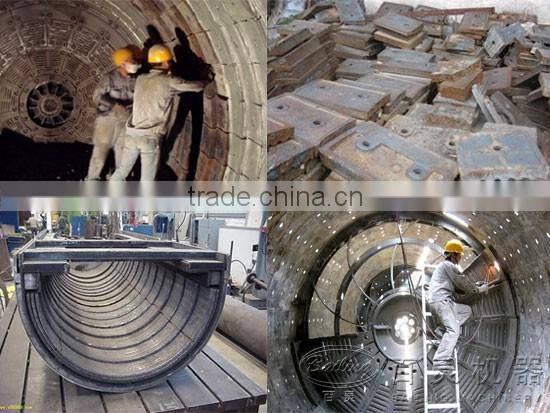

Ball Mill liners are used for protecting ball mill shell from damaging . Ball mill is widely used in powder making production line in industries, like mining,building materials and chemistry industries. It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
2. Types:
a. dry and wet types.
b. lattice and overflow types, or center-discharge and side-discharge types
c. Bearing MiII and Bushing MiII
d. edge and center types
Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.
3.Ball Mill Technical Data:
Model | Drum rotary speed (r/min) | Feeding capacity (t) | feeding size (mm) |
Discharging size (mm) | Output (t/h) | Power (kw) | Weight (t) |
Φ900×2100 | 38 | 1.5 | ≤15 | 0.075-0.89 | 0.5-2 | 15 | 3.9 |
Φ900×3000 | 38 | 2.51 | ≤15 | 0.075-0.89 | 0.8-3.5 | 22 | 5.0 |
Φ1200×2800 | 32 | 4.0 | ≤20 | 0.074-0.4 | 1.0-5.0 | 30 | 9.5 |
Φ1200×3000 | 32 | 4.5 | ≤20 | 0.074-0.4 | 1.2-5.6 | 37 | 11.5 |
Φ1200×4500 | 30 | 5.5 | ≤20 | 0.074-0.4 | 1.5-6.0 | 55 | 13.6 |
Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 4-10 | 95 | 21 |
Φ1500×5700 | 27 | 12 | ≤25 | 0.074-0.4 | 4-13 | 110 | 23.5 |
Φ1830×3000 | 24 | 12 | ≤25 | 0.074-0.4 | 5-15 | 130 | 31 |
Φ1830×3600 | 24 | 13 | ≤25 | 0.074-0.4 | 5-16 | 130 | 32 |
Φ1830×4500 | 24 | 14 | ≤25 | 0.074-0.4 | 5-18 | 155 | 33.5 |
Φ1830×7000 | 24 | 21 | ≤25 | 0.074-0.4 | 6-20 | 210 | 36 |
Φ2100×3600 | 24 | 21 | ≤25 | 0.074-0.4 | 7-35 | 215 | 39.5 |
Φ2100×4500 | 24 | 26 | ≤25 | 0.074-0.4 | 8-42 | 245 | 43.5 |
Φ2200×3000 | 21 | 28 | ≤25 | 0.074-0.4 | 8-43 | 245 | 46 |
Φ2200×4800 | 21 | 35 | ≤25 | 0.074-0.4 | 9-45 | 285 | 48 |
Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 8-60 | 285 | 55 |
Φ2700×4500 | 21 | 48 | ≤25 | 0.074-0.4 | 12-83 | 475 | 79 |
Thanks so much for you taking time to browse our ceramic liner ball mill. Any further questions, please feel free to contact us and we are ready to so service for you!
