Home > Products > Grinding Mill > 2016 900x1800 Small Ball Mill Supplier With Low Price
2016 900x1800 Small Ball Mill Supplier With Low Price
- QingDao tianjin.shanghai
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
China Top Brand Ball Mill Manufacturers
-
Top Quality Bentonite Clay Milling Machine With Competitive Price
-
Reliable Quality Wet Type Grate Ball Mill With Competitive Price
-
Dry Process Ball Mill For Lime Grinding Plant
-
Nonmetal Small Batch Ball Mill/Ceramic Ball Mill For Feldspar,Quartz
-
Dry Process Ball Mill Plant With Dust Collector
Product Details
| Condition | New | Type | Ball Mill | |
| Power(W) | 18.5kw | Capacity(t/h) | 0.65-2 | |
| Place of Origin | Henan, China | Brand Name | LanJi | |
| Model Number | 900*1800 | Weight | 3.6t | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

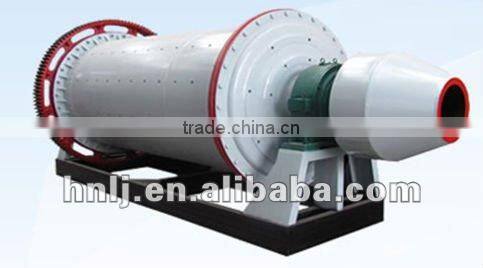

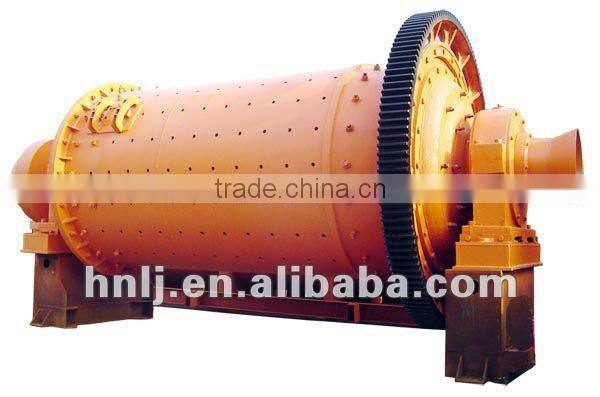

2016 900x1800 small ball mill supplier with low price
1. Ball Mill Application:
Ball Mill is widely used in powder making production line in industries, like mining,building materials and chemistry industries. It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
2. Ball Mill Types:
a. dry and wet types.
b. lattice and overflow types, or center-discharge and side-discharge types
c. Bearing MiII and Bushing MiII
d. edge and center types
Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.
3. Ball Mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
4. Ball Mill Technical Parameter:
Model | Drum rotary speed (r/min) | Feeding capacity (t) | feeding size (mm) |
Discharging size (mm) | Output (t/h) | Power (kw) | Weight (t) |
Φ900×2100 | 38 | 1.5 | ≤15 | 0.075-0.89 | 0.5-2 | 15 | 3.9 |
Φ900×3000 | 38 | 2.51 | ≤15 | 0.075-0.89 | 0.8-3.5 | 22 | 5.0 |
Φ1200×2800 | 32 | 4.0 | ≤20 | 0.074-0.4 | 1.0-5.0 | 30 | 9.5 |
Φ1200×3000 | 32 | 4.5 | ≤20 | 0.074-0.4 | 1.2-5.6 | 37 | 11.5 |
Φ1200×4500 | 30 | 5.5 | ≤20 | 0.074-0.4 | 1.5-6.0 | 55 | 13.6 |
Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 4-10 | 95 | 21 |
Φ1500×5700 | 27 | 12 | ≤25 | 0.074-0.4 | 4-13 | 110 | 23.5 |
Φ1830×3000 | 24 | 12 | ≤25 | 0.074-0.4 | 5-15 | 130 | 31 |
Φ1830×3600 | 24 | 13 | ≤25 | 0.074-0.4 | 5-16 | 130 | 32 |
Φ1830×4500 | 24 | 14 | ≤25 | 0.074-0.4 | 5-18 | 155 | 33.5 |
Φ1830×7000 | 24 | 21 | ≤25 | 0.074-0.4 | 6-20 | 210 | 36 |
Φ2100×3600 | 24 | 21 | ≤25 | 0.074-0.4 | 7-35 | 215 | 39.5 |
Φ2100×4500 | 24 | 26 | ≤25 | 0.074-0.4 | 8-42 | 245 | 43.5 |
Φ2200×3000 | 21 | 28 | ≤25 | 0.074-0.4 | 8-43 | 245 | 46 |
Φ2200×4800 | 21 | 35 | ≤25 | 0.074-0.4 | 9-45 | 285 | 48 |
Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 8-60 | 285 | 55 |
Φ2700×4500 | 21 | 48 | ≤25 | 0.074-0.4 | 12-83 | 475 | 79 |
