Home > Products > Grinding Mill > Raymond Mill for Calcite Grinding to 325mesh
Raymond Mill for Calcite Grinding to 325mesh
- Qingdao
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | refer to the model of the machine | |
| Capacity(t/h) | 0.5-15t/h | Place of Origin | Henan, China | |
| Brand Name | LanJi | Model Number | 3R1510-6R4427 | |
| Dimension(L*W*H) | depend on the model | Weight | According to model | |
| Certification | CE&ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Raymond mill for calcite grinding to 325mesh :
1. Strong integration capacity, space saving
2. The screen-passing rate can reach to 99%
3. Easy operation, light in weight
4. Lower oil and power consumption
Raymond Mill Application:
Raymond mill .raymond mill for bentonite is designed to grinding 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6%, such as barite, calcite, potash feldspar, talcum, marble, limestone and slag, etc. Also, we manufacture whole set corollary equipment for Raymond mill.
Raymond Mill Main Features & Benefits:
1. Strong integration capacity, space saving
2. The screen-passing rate can reach to 99%
3. Easy operation, light in weight
4. Lower oil and power consumption

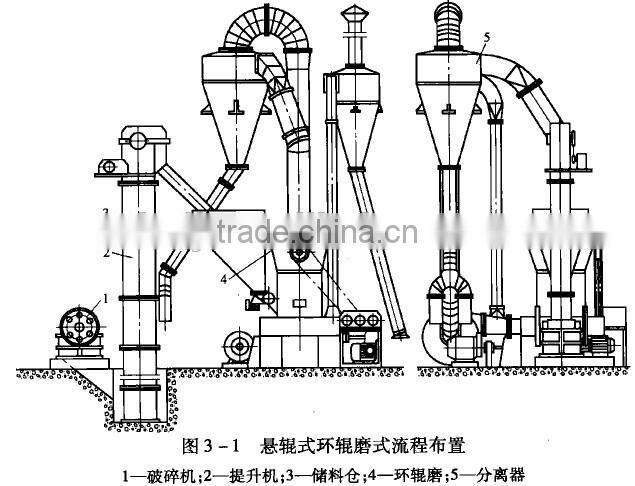

Raymond Mill working principle:
Raymond mill Load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded.
Araymond mill technical parameters:
| Type | Roll grinding number | Maximum feed size (mm) | Output size (mm) | Output of 8 hours | Motor power (KW) | Blower power (KW) | Analysis machine power (KW) | overall dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| 3R1510 | 3 | 10 | 80-325 | 0.3-1.2 | 7.5 | 5.5 | 1.1 | 3200*2100*4500 |
| 3R2115 | 3 | >20 | 80-325 | 0.4-1.6 | 15 | 11 | >2.2 | 4100*3300*4500 |
| 3R2615 | 3 | 20 | 80-325 | 0.5-2.7 | 18.5 | 15 | 2.2 | 4300*3500*5100 |
| 3R2715 | 3 | 20 | 80-325 | 0.7-3 | 22 | 18.5 | 2.2 | 5300*4100*5200 |
| 4R3016 | 4 | 20 | 80-325 | 0.8-5 | 30 | 30 | 2.2 | 5300*4100*5200 |
| 4R3015 | 4 | 25 | 80-325 | 1.0-4 | 30 | 22 | 2.2 | 5500*4300*5400 |
| 4R3216 | 4 | 25 | 80-325 | 1.0-8 | 45 | 30 | 5.5 | 7100*5900*7900 |
| 4R3220 | 4 | 28 | 80-400 | 1-10 | 45 | 37 | 5.5 | 8000*6000*9500 |
| 5R4119 | 5 | 30 | 80-400 | 5-10 | 75 | 75 | 7.5 | 9200*7250*9700 |
| 6R4427 | 6 | 35 | 80-400 | 9-15 | 132 | 132 | 11 | 12550*5700*8355 |
