Product Details
| Condition | New | Type | Other, Ball Mill, ball mill machine | |
| Motor Type | AC Motor | Power(W) | 18.5-1250 | |
| Capacity(t/h) | 8.5-60 | Place of Origin | Henan, China | |
| Brand Name | Lanji | Model Number | 2400*4500 | |
| Dimension(L*W*H) | 6.5*2.2*2.5 M | Weight | 65 T | |
| Certification | ISO9001:2000 | Warranty | 1 year including wearing parts | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

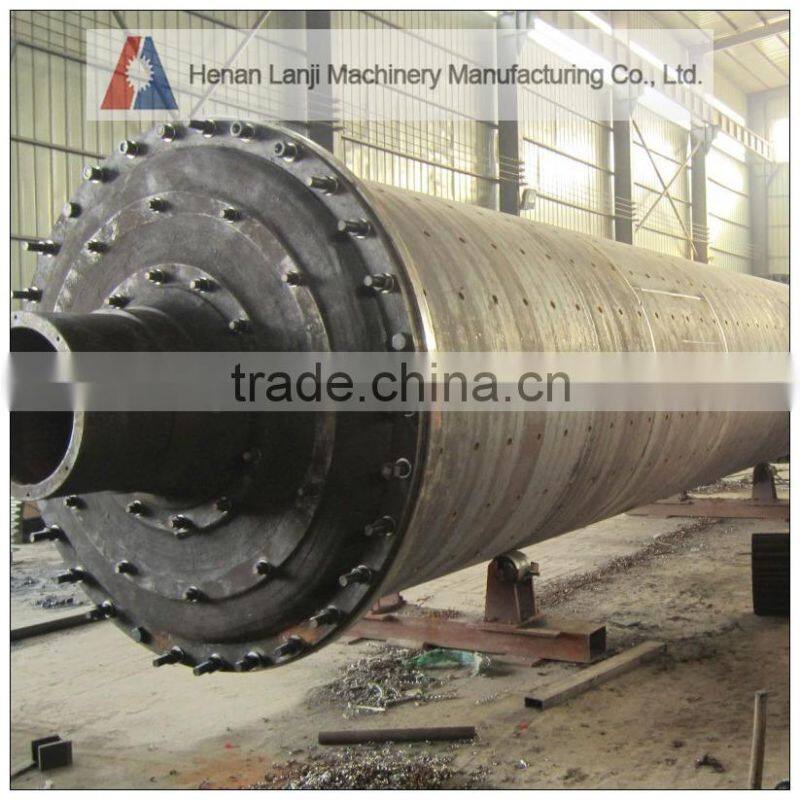

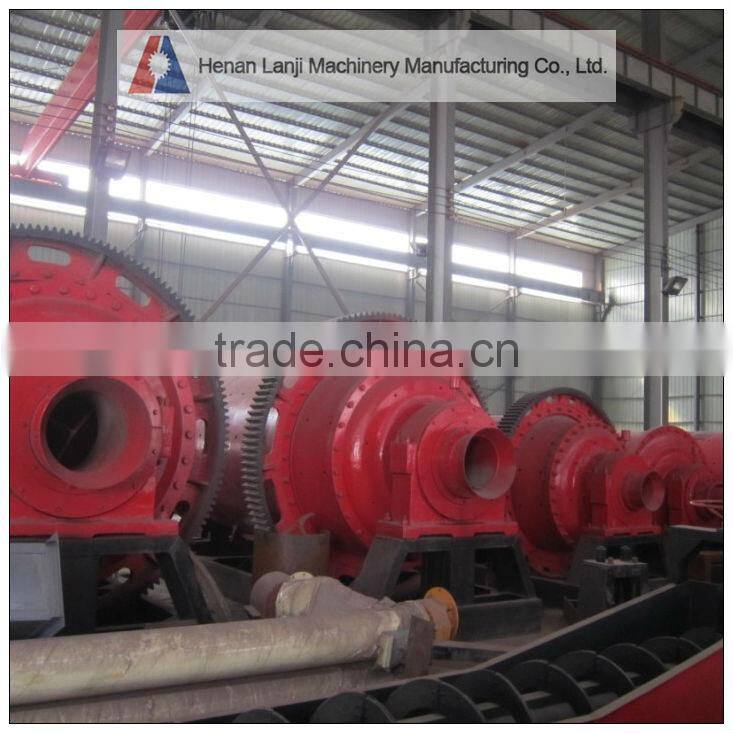

Iron ore /gold ore small Ball Mill machine model 900*2100mm:
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Ball mill description:
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Ball mill technical parameters:
Model | Rotation speed (r/min) | Grinding media loading (t) | feed size(mm) |
Discharge size (mm) | Output (t/h) | Power (kw) | Weight (t) |
Φ900×2100 | 38 | 1.5 | ≤15 | 0.075-0.89 | 0.5-2 | 15 | 3.9 |
Φ900×2400 | 38 | 1.8 | ≤15 | 0.075-0.89 | 0.7-2.8 | 18.5 | 4.5 |
Φ900×3000 | 38 | 2.51 | ≤15 | 0.075-0.89 | 0.8-3.5 | 22 | 5.0 |
Φ1200×2400 | 32 | 3.8 | ≤20 | 0.074-0.4 | 0.9-4.8 | 30 | 9.2 |
Φ1200×2800 | 32 | 4.0 | ≤20 | 0.074-0.4 | 1.0-5.0 | 30 | 9.5 |
Φ1200×3000 | 32 | 4.5 | ≤20 | 0.074-0.4 | 1.2-5.6 | 37 | 11.5 |
Φ1200×4500 | 30 | 5.5 | ≤20 | 0.074-0.4 | 1.5-6.0 | 55 | 13.6 |
Φ1500×3000 | 27 | 7.0 | ≤25 | 0.074-0.4 | 2.5-6.5 | 75 | 15.0 |
Φ1500×3500 | 27 | 8.5 | ≤25 | 0.074-0.4 | 3.0-8.2 | 75 | 15.6 |
Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 4-10 | 95 | 21 |
Φ1500×5700 | 27 | 12 | ≤25 | 0.074-0.4 | 4-13 | 110 | 23.5 |
Φ1830×3000 | 24 | 12 | ≤25 | 0.074-0.4 | 5-15 | 130 | 31 |
Φ1830×3600 | 24 | 13 | ≤25 | 0.074-0.4 | 5-16 | 130 | 32 |
Φ1830×4500 | 24 | 14 | ≤25 | 0.074-0.4 | 5-18 | 155 | 33.5 |
Φ1830×7000 | 24 | 21 | ≤25 | 0.074-0.4 | 6-20 | 210 | 36 |
Φ2100×3000 | 24 | 18 | ≤25 | 0.074-0.4 | 7-26 | 210 | 38 |
Φ2100×3600 | 24 | 21 | ≤25 | 0.074-0.4 | 7-35 | 215 | 39.5 |
Φ2100×4500 | 24 | 26 | ≤25 | 0.074-0.4 | 8-42 | 245 | 43.5 |
Φ2200×3000 | 21 | 28 | ≤25 | 0.074-0.4 | 8-43 | 245 | 46 |
Φ2200×4800 | 21 | 35 | ≤25 | 0.074-0.4 | 9-45 | 285 | 48 |
Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 8-60 | 285 | 55 |
Φ2700×4500 | 21 | 48 | ≤25 | 0.074-0.4 | 12-83 | 475 | 79 |
Thanks so much for you taking time to browse our ball mill machine. Any further questions, please feel free to contact us and we are ready to so service for you:
Welcome you browse other related products:

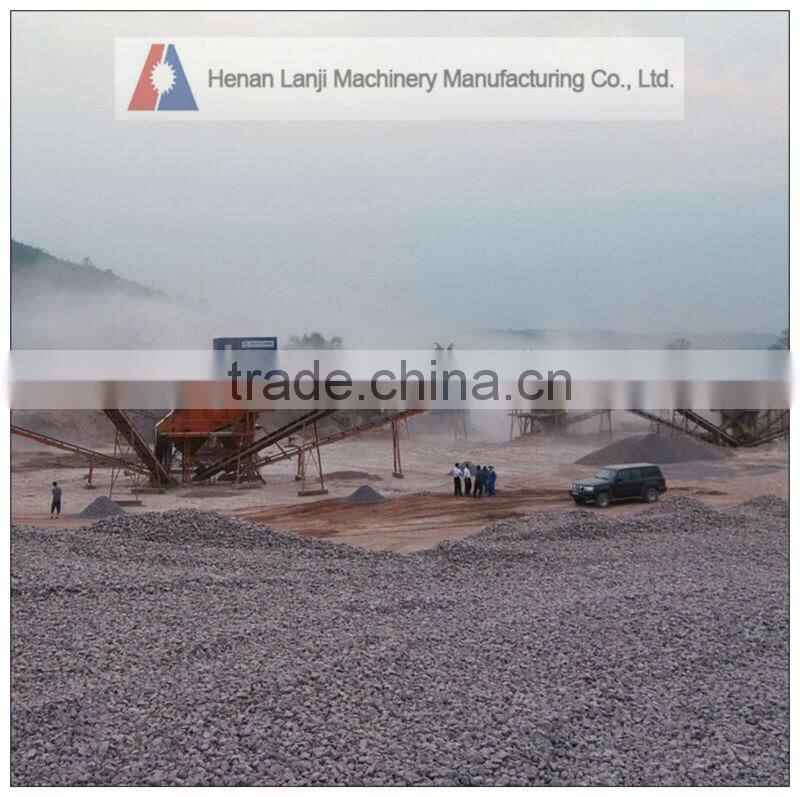

Stone crushing line

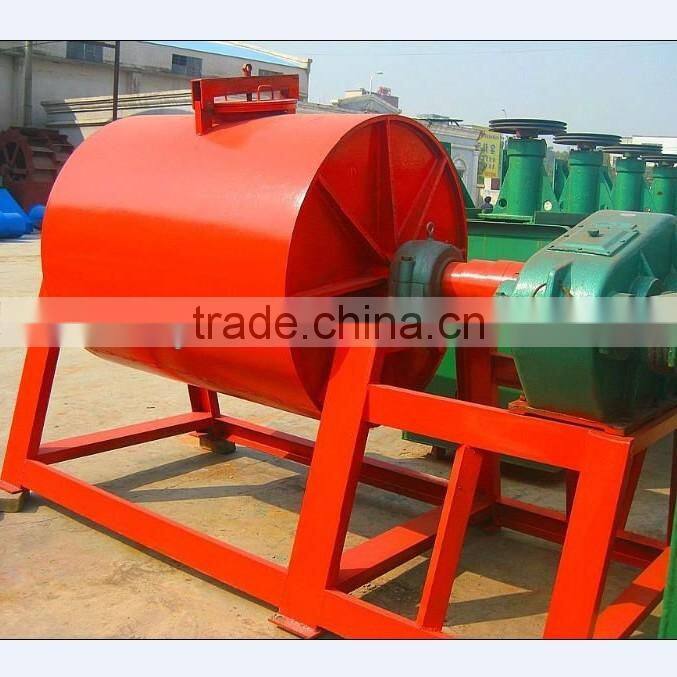

Batch ball mill:
