Hot hydraulic shearing machinery QC12Y-20X4000 cheap price
- 300 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
-
china metal hydraulic folding machine W62Y 3x2500
-
320mm hot sale China Slot machine for sale B5032 slotting machine
-
FY850-A Horizontal internal broaching machine
-
L5120C series of large tonnage vertical broaching machine
-
FY815-JC Horizontal internal broaching machines,broaching machine For Sale
-
FY-808A Horizontal internal broaching machine for sale
Product Details
| Place of Origin | Guangxi, China | Brand Name | Xiashijixie | |
| Model Number | QC12Y-20X4000 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

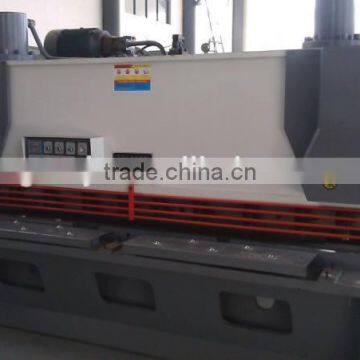

Hot hydraulic shearing machinery QC12Y-20X4000 cheap price
Hydraulic shears is through the use of the main cylinder (fixed to the wall above) do cut down the exercise, nitrogen cylinder return, thus simplifying the hydraulic system, more stable operation. Upper cutter tilting hydraulic shears in the shearing process arc around a fixed axis swing, leverage, fulcrum force is small, can increase the shear blade life, the life of the machine, the machine structure is compact, and the stepless adjustment of the tool carrier itinerary, greatly improve work efficiency.
| Specification | Max.shearing thickness | Max.shearing width | Shearing angle | Ram strokes | Back gauge range | Motor power |
| mm | mm | ° | min | mm | kw | |
| QC12Y-4×2500 | 4 | 2500 | 1°30 | 18 | 20-600 | 4.0 |
| QC12Y-4×3200 | 4 | 3200 | 1°30 | 18 | 20-600 | 5.5 |
| QC12Y-4×4000 | 4 | 4000 | 1°30 | 12 | 20-600 | 5.5 |
| QC12Y-4×5000 | 4 | 5000 | 1°30 | 10 | 20-600 | 5.5 |
| QC12Y-4×6000 | 4 | 6000 | 1°30 | 7 | 20-800 | 7.5 |
| QC12Y-6×2500 | 6 | 2500 | 1°30 | 18 | 20-600 | 7.5 |
| QC12Y-6×3200 | 6 | 3200 | 1°30 | 14 | 20-600 | 7.5 |
| QC12Y-6×4000 | 6 | 4000 | 1°30 | 12 | 20-600 | 7.5 |
| QC12Y-6×5000 | 6 | 5000 | 1°30 | 10 | 20-600 | 7.5 |
| QC12Y-6×6000 | 6 | 6000 | 1°30 | 7 | 20-800 | 7.5 |
| QC12Y-8×2500 | 8 | 2500 | 1°30 | 14 | 20-600 | 7.5 |
| QC12Y-8×3200 | 8 | 3200 | 1°30 | 10 | 20-600 | 7.5 |
| QC12Y-8×4000 | 8 | 4000 | 1°30 | 8 | 20-600 | 11 |
| QC12Y-8×5000 | 8 | 5000 | 1°30 | 7 | 20-800 | 15 |
| QC12Y-8×6000 | 8 | 6000 | 1°30 | 6 | 20-800 | 15 |
| QC12Y-8×8000 | 8 | 8000 | 1°30 | 5 | 20-800 | 15 |
| QC12Y-10×2000 | 10 | 2000 | 1°30 | 12 | 20-600 | 11 |
| QC12Y-10×2500 | 10 | 2500 | 1°30 | 10 | 20-600 | 11 |
| QC12Y-10×3200 | 10 | 3200 | 1°30 | 10 | 20-600 | 11 |
| QC12Y-10×4000 | 10 | 4000 | 1°30 | 8 | 20-600 | 15 |
| QC12Y-12×2000 | 12 | 2000 | 2° | 12 | 20-600 | 15 |
| QC12Y-12×2500 | 12 | 2500 | 2° | 10 | 20-600 | 15 |
| QC12Y-12×3200 | 12 | 3200 | 2° | 9 | 20-600 | 15 |
| QC12Y-12×4000 | 12 | 4000 | 2° | 8 | 20-800 | 18.5 |
| QC12Y-12×5000 | 12 | 5000 | 2° | 7 | 20-800 | 22 |
| QC12Y-12×6000 | 12 | 6000 | 2° | 6 | 20-800 | 22 |
| QC12Y-12×8000 | 12 | 8000 | 2° | 5 | 20-800 | 22 |
| QC12Y-16×2500 | 16 | 2500 | 2° | 8 | 20-600 | 18.5 |
| QC12Y-16×3200 | 16 | 3200 | 2° | 7 | 20-600 | 18.5 |
| QC12Y-16×4000 | 16 | 4000 | 2° | 5 | 20-800 | 18.5 |
| QC12Y-20×2000 | 20 | 2000 | 2°30 | 8 | 20-600 | 22 |
| QC12Y-20×2500 | 20 | 2500 | 2°30 | 6 | 20-800 | 22 |
| QC12Y-20×3200 | 20 | 3200 | 2°30 | 6 | 20-800 | 30 |
| QC12Y-20×4000 | 20 | 4000 | 2°30 | 6 | 20-800 | 30 |
| QC12Y-25×2000 | 25 | 2000 | 3° | 6 | 20-800 | 30 |
| QC12Y-25×2500 | 25 | 2500 | 3° | 6 | 20-800 | 30 |
| QC12Y-25×3200 | 25 | 3200 | 3° | 6 | 20-800 | 37 |
| QC12Y-30×2500 | 30 | 2500 | 3°30 | 6 | 20-800 | 37 |
| QC12Y-30×3200 | 30 | 3200 | 3°30 | 5 | 30-800 | 45 |
| QC12Y-40×2500 | 40 | 2500 | 3°30 | 5 | 30-800 | 55 |
| QC12Y-40×3200 | 40 | 3200 | 3°30 | 5 | 30-800 | 55 |
Detailed pictures for your reference
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
