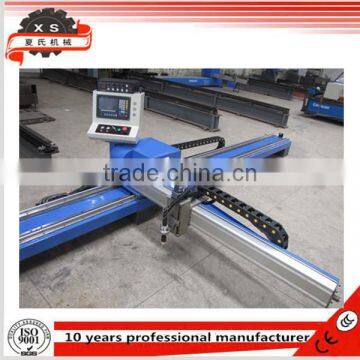

HD-1020 Portable CNC flame cutting machine
- 30 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
Portable CNC flame cutting machine
-
Portable CNC flame cutting machine HD-1225
-
Hydraulic Guillotine Shear Metal Cutting Machinery QC11K-6*2500
-
TG703F-2 high - speed EDM Drilling Machine Cut Machine CNC Machine Manufacturers
-
Portable CNC flame cutting machine EDM Cutting Machine DK7740
-
D7130 precision EDM shaping machine Die sinking forming EDM machine
Product Details
| Place of Origin | Guangxi, China | |||
| Brand Name | xiashi | Model Number | HD-1020 | |
| Voltage | 220±10% | Rated Power | 220W | |
| Weight | 120KG | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features:
This machine with a large gantry CNC cutting machine, like any complex parts can be cut.
Host vertical and horizontal rails are made of imported dual-axis precision linear guide, linear degrees, and walking stability, high accuracy.
Can cut any complex plane figure, for better oxygen gas flame cutting, plasma cutting machine, free moving, does not occupy a fixed site.
Affordable, practical and suitable for self-employed, small-scale manufacturing and light industrial machinery and other industries.
Technical Parameters
HD Portable NC Flame/Plasma Cutting Machine | ||||
Model | HD-1020 | HD-1225 | HD-1530 | HD-1560 |
Power source | 220±10%VAC 50/60Hz 220W | |||
Cutting mode | O2/C3H8or C2H2, Plasma available | |||
Effective cutting range(mm) | 1000×2000 | 1200×2500 | 1500×3000 | 1500×6000 |
Track L×W×H(mm) | 2500×273×60 | 3000×273×60 | 3500×273×60 | 7000×273×60 |
Track Holder Quantity | 2 | 3 | 3 | 6 |
Track Holder L×W×H(mm) | 500×80×40 | |||
Cutting speed(mm/min) | 0-3500 (Max 4000 available) | |||
Cutting thickness(Flame)(mm) | 5-150(O2/C3H8or C2H2) | |||
Cutting thickness(Plasma)(mm) | In terms of plasma power source | |||
Move precision | ±0.2mm/m | |||
Torch | Flame,electric height adjustment(±60mm) | |||
Host weight(kg) | 19 | |||
Total weight(kg) | 120 | 130 | 140 | 220 |
Gas pressure(Mpa) | Max0.1 | |||
Oxygen pressure(Mpa) | Max0.7 | |||
Type of gas | Propane, Ethine | |||
Emergency stop | Yes | |||
Working temperature | -5~45℃ | |||
Relative humidity | <95% No condensing | |||
Standard configuration is 2#propane cutting nozzle if no special requirement. | ||||
Tailor-made track if request. | ||||
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
