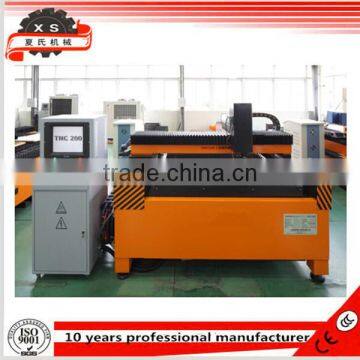

automatic metal sheet cnc plasma cutting machine

CNC Plasma Table is specially designed for cutting small steel plate. Plasma max cutting thickness can be up to 50mm for this type of machine.

For this cnc plasma table,plasma cutter,we can equip Hypertherm,Kjellberg,Thermal Dynamics,different model for different thickness.

Description:

What is the CNC Oxy Fuel Cutting?Oxy Fuel cutting is a chemical reaction between pure oxygen and steel to form iron oxide. Essentially, it is rapid, controlled rusting. A mixture of oxygen and fuel gas are used to preheat the metals surface or edge to its ignition temperature around 1800 degrees F. (bright red in color), but below the metals melting point. Then a jet of pure oxygen is directed at the heated area in a fine, high pressure stream. A vigorous exothermic chemical reaction takes place between the oxygen and metal forming an aluminum or iron oxide or rust. The pressure of the jet of oxygen blows away the slag or oxide forming a cavity. The burning head is moved at a constant speed to form a continuous cut.

What is the CNC Plasma Cutting?Although plasma cutting has been around since the early 1940's it is still an effective way to cut through carbon steel plate up to inch and a quarter thick. A plasma cutter works by sending an electrical arc through a gas field that is flowing through a restricted nozzle. The electric arc elevates the temperature of the gas to the point that it enters a plasma state. The plasma exits the nozzle at high speed. The electrical conductivity of the plasma arcs to the metal being cut completing the circuit. The high pressure plasma cuts through the molten metal.
As a top manufactory of CNC cutting machinery, TAYOR has been specializes in precision CNC Oxy Fuel cutting production many years. The Oxy Fuel cutting machines are CNC controlled on DXF format.  The varieties of shapes that can be cut by a CNC oxy fuel cutter are almost limitless. What is the CNC cutting Machine
The CNC flame cutting machine is adopted with framework structure, moved by high precision gear and rack, which is stable and accurate.It is composed of CNC control parts, driven parts, mechanical parts, and pneumatic parts. Mainly applied in metal plate cutting of various shape, high automation, advanced scheme, accurate cutting, and stable dynamic character. CNC system and servo system are used with international and domestic famous brand. Easy operation, convenient interface and rich software ensured good quality of cutting performance.For cutting of carbon steels so on, widely applied in boiler, pressure vessel, machinery, shipping and steel structure industries.

CNC controller: The CNC controller is very easy to understand. It comes with CAD Conversion Software as a standard. These features make it very easy to use and understand. In fact, even ordinary Profile Cutting Machine Operators can be trained on it in a matter of few hours.

Automatic nesting software: For optimizing the area that can be utilized from a sheet by placing the jobs on the plates strategically so that plate wastage is minimized thus output from a sheet is maximized. This is achieved by using the Nesting Software.

Auto height controller for Gas cutting: This is needed if there is warpage in the sheet. The torch automatically keeps a particular gap from the sheet as set and it keeps moving automatically up or down to maintain the distance.

Auto height controller for Plasma cutting : Since plasma cutting is achieved at high speeds, the thermal movement in the plates can obstruct the torch and hence an automatic height controller helps to avoid collisions of the torch with the plates. Also, for achieving consistently good quality in Plasma cutting auto height controller is utmost necessary. This height controller works by comparing the arc voltage to a pre-set value. This results in achieving a uniform gap between the torch and the sheet.

Automated Ignition: Low voltage input, pulse type output, many gas is available for ignition: Acetylene, Propane, Long life designed, high frequency generator for ignition.
Lifting Equipment: Low voltage, large torqu designed, it may bear a heavy load up to 70 kg, high repeative accuracy, long life designed,
