Portable CNC cutting machine EDM wire cutting machine DK7740J
USD $100 - $10,000
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Shenzhen
- T/T
You May Like
-
Gantry type plasma cutting machine/ plasam cutting machine
-
CNC edm cutting machine for sale China Xia Shi Machine
-
Fiber laser marking machine for small business idea eurapean standard JTDP-75W
-
Fiber Laser Marking Machine for Metal with Rotary Marking FOB Refere JTDP-50W
-
High quality desktop carbon steel laser marker,industrial fiber laser marking machine for iron JTDP-100W
-
professional cnc laser marking machine with CE certificate JTEP-12W
Product Details
| Condition | New | Place of Origin | Yunnan, China | |
| Brand Name | XIASHI | Model Number | DK7740J | |
| Voltage | 220V/50Hz, | Rated Power | three phase, 380V/50Hz | |
| Dimension(L*W*H) | 1.9*1.4*1.8m | Weight | 1400kg | |
| Certification | CE & ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

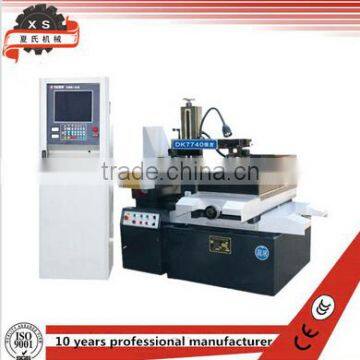

Portable CNC cutting machine EDM wire cutting Machine DK7740J
Features
1.Linear rail, Four axes independent UV work,
2.Work pieces to 600mm thick.
3.Taper angle up to ± 30°.
4.Small wire diameters 0.12- 0.22 mm (down to 0 .08mm).
5.Accuracy: 0.01mm, even 0.005mm.
6.Roughness: Ra 0.8~1.6 µm
7.Low consumption, material saving.
8.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
9.Advanced CAD/CAM software with file transfer and translation capabilities. 10.Control system with luxury cabinet. ( HL, HF, W-Cut, A-Cut) .
11. Enclosed cover for protection.
Optional:
Taper cutting accessory. (± 15°, ± 30°.)
| Model | DK7720 | DK7725 | DK7732(35) | DK7740(45) | DK7740J | DK7750 | DK7750J |
|---|---|---|---|---|---|---|---|
| Working Table size (mm) | 490*380 | 580*400 | 700*440 | 780*540 | 1000*540 | 1000*650 | 1140*650 |
| Stroke(X/Y/)(mm) | 250*200 | 320*250 | 400*320 | 500*400 | 630*400 | 630*500 | 800*500 |
| Max.Z axis travel(mm) | 350 | 350 | 400 | 400 | 400 | 600 | 600 |
| Cutting angle(°/80mm) | 6° | 6° | 6° 15° | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° |
| Max.cutting speed(mm²/min) | ≥90(High speed≥140) | ||||||
| Optimum roughness(m) | ≤2.5(Medium speed≤1.0) | ||||||
| Dia. of molybdenum wire(mm) | 0.1-0.3( recommend 0.18) | ||||||
| Molybdenum wire moving speed(m/s) | 11.5 | ||||||
| Working coolant | DX-1, DX-4, NG-1 | ||||||
| Process accuracy (mm) | 0.01-0.015 | ||||||
| Feeding Pulse equivalent (mm) | 0.001 | ||||||
| Power supply | single phase, 220V/50Hz, three phase, 380V/50Hz | ||||||
| Power consumption( Kw) | <1.0 | ||||||
| piece weight(kg) | 200 | 250 | 300 | 450 | 450 | 700 | 700 |
| Weight(kg) | 800 | 900 | 1200 | 1350 | 1400 | 2100 | 2300 |
| Dimension(m) | 1.2*0.9*1.3 | 1.3*1.2*1.4 | 1.3*1.2*1.4 | 1.6*1.3*1.5 | 1.6*1.3*1.5 | 1.8*1.6*1.7 | 1.8*1.6*1.7 |
| Packing size(m) | 1.3*0.9*1.4 | 1.4*1.2*1.5 | 1.6*1.3*1.7 | 1.9*1.4*1.8 | 1.9*1.4*1.8 | 1.9*1.6*2.1 | 1.9*1.6*2.1 |
Packaging & Shipping
We will pack the machine with standard export wooden case ,ensure the transport safety
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
A: warranty is one year, but we will offer lifetime service for machine.
