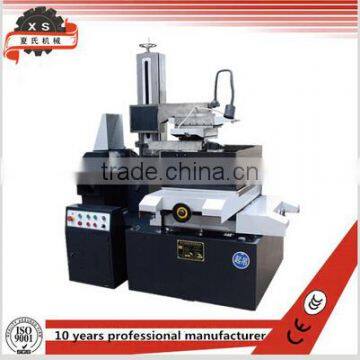

EDM Cutting machine laser cutting machine DK77120J
Negotiable
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- SHENZHEN
- T/T
You May Like
-
Portable CNC cutting machine EDM wire cutting machine DK7740J
-
Gantry type plasma cutting machine/ plasam cutting machine
-
CNC edm cutting machine for sale China Xia Shi Machine
-
Fiber laser marking machine for small business idea eurapean standard JTDP-75W
-
Fiber Laser Marking Machine for Metal with Rotary Marking FOB Refere JTDP-50W
-
High quality desktop carbon steel laser marker,industrial fiber laser marking machine for iron JTDP-100W
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | XIASHI | Model Number | DK77120J | |
| Dimension(L*W*H) | 3x2.8x2.5m | Weight | 2600kg | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Specification
1.Large travel , High cutting speed.
2.Four axes independent UV work.
3.Work pieces to 600mm thick.
4.Taper angles up to ± 30°.
5.Standard model is equipped with ± 3° taper attachment.
6.Molybdenum wire diameter 0.12~0.22 mm (down to 0 .08mm).
7.Accuracy: 0.015mm, even 0.01mm.
8.Roughness: Ra 1.6-2.5 µm.
9.Low consumption, material saving.
10.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
11.Advanced CAD/CAM software with file transfer and translation capabilities.
12.High cutting speed modular is optional.
Control system ( HL, HF, W-Cut, A-Cut)
A)Microcomputer process control system
B)PC control system.
C)Luxury cabinet control.
Optional:
1.Taper cutting accessory. (± 15°, ± 30°.)
2.Linear rail.
3.Protection cover.
4.Higher speed control board, improve the efficiency 30-40%.
5.Middle speed control system.
| Model | DK77100 | DK77100J | DK77120J | DK77150 | DK77160 | DK77160J |
|---|---|---|---|---|---|---|
| Working Table size (mm) | 1650*1150 | 1900*1150 | 2000*1300 | 2500*1600 | 2600*1780 | 2960*1780 |
| Stroke(X/Y/)(mm) | 1200*1100 | 1500*1000 | 1600*1200 | 1800*1500 | 2200*1600 | 2500*1600 |
| Max.Z axis travel(mm) | 800 | 800 | 1000 | 1200 | 1200 | 1200 |
| Cutting angle(°/80mm) | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° |
| Max.cutting speed(mm²/min) | ≥90(High speed≥140) | |||||
| Optimum roughness(m) | ≤2.5(Medium speed≤1.0) | |||||
| Dia. of molybdenum wire(mm) | 0.1-0.3( recommend 0.18) | |||||
| Molybdenum wire moving speed(m/s) | 11.5 | |||||
| Working coolant | DX-1, DX-4, NG-1 | |||||
| Process accuracy (mm) | 0.01-0.015 | |||||
| Feeding Pulse equivalent (mm) | 0.001 | |||||
| Power supply | single phase, 220V/50Hz, three phase, 380V/50Hz | |||||
| Power consumption ( Kw) | <1.0 | |||||
| piece weight(kg) | 2600 | 2600 | 4500 | 5000 | 10000 | 10000 |
| Weight(kg) | 5200 | 5800 | 8500 | 11000 | 14000 | 14500 |
| Dimension(m) | 3.0*2.8*2.5 | 3.0*2.8*2.5 | 3.2*3.0*2.6 | 4.4*4.4*2.8 | 5.3*4.8*3.0 | 5.8*4.8*3.0 |
| Packing size(m) | 3.4*3.1*2.9 | 3.4*3.1*2.9 | 3.6*3.4*3.0 | 4.8*4.6*3.0 | ||
| All the specification is only for reference, for detailed technical data please check with our sales engineer, Fazheng hold the authority of improving the design and specification of the products without notice in advance. | ||||||
Packaging & Shipping
We will pack the machine with standard export wooden case ,ensure the transport safety
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
A: warranty is one year, but we will offer lifetime service for machine.
