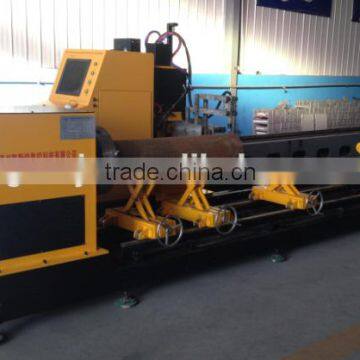

CNCXG100 Six-axis four linkage intersection CNC Plasma Pipe Cutting Machine
- 30 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
Gantry Type CNC Plasma Cutting Machine XS-K40
-
Dependable Performance HD-1225 portable cnc plasma cutting machine,cnc flame cutting machine For Sale
-
HD-1020 Portable CNC flame cutting machine
-
Portable CNC flame cutting machine
-
Portable CNC flame cutting machine HD-1225
-
Hydraulic Guillotine Shear Metal Cutting Machinery QC11K-6*2500
Product Details
| Place of Origin | Guangxi, China | Brand Name | xiashi | |
| Model Number | CNCXG1000 | Voltage | 380V/50HZ ±2% | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Introduction
CNCXG numerical control pipe cutting machine is special designed steel pipe 3-D auto-cutting equipment.
After inputting of basic data or leading proper format files, it is capable of automatically processing hole cutting, beveling, grooving, multi-branch and shrimp sections.
It is widely used in steel structure, oceaneering, bridge and steel tower building, petrochemical piping and pressure vessel industry.
Function and Application
1.Be able to process hole cutting, beveling, grooving, multi-branch and shrimp sections.
2.Be widely used in steel structure, oceaneering, bridge and steel tower building, petrochemical piping and pressure vessel industry.
3.Oxy-fuel and plasma cutting
Main performance
1.Maximum cutting pipe diameter 1000mm
2.3D Cutting
3.Touch screen panel, convenient and fast data inputting, easy to use and learn
4.Saving cutting data any time, able to create technical data base by user
5.Compatible with Steel Structure designing software, expanding of machine function
6.Stable and reliable, able to cut successive.
7.Above machines can be customized.
A detail quotation will be send to you against your cutting material, shape and size, thickness
and your special requirement!
Our products are strictly tested before delivery, and approved by CE!
Technical parameter
Model | CNCXG1000 |
Cutting Pipe Diameter (mm) | Φ100~1000mm |
Cutting Mode | Flame, plasma |
Plasma cutting wall thickness(Quality cutting thickness) | Vertical cutting 1~40mm |
Flame cutting wall thickness | Vertical cutting 5~60mm |
Pipe length(mm) | 6000mm |
Cutting Speed (mm/min) | 10~2000mm/min |
Translational speed | 10~6000 mm/min |
Axial swing angle of cutting torch | α=±45° |
Radial swing angle of cutting torch | β=±45° |
max. weight of Pipe cutting | 5000kg |
Pipe Chuck | 5 Jaws Self Centering Chuck |
Manually chuck clamp device | 1 set |
Quantity of bracket | two groups |
Chuck hole diameter | Min 30 mm |
Acceptable surrounding temperature | -20℃ -50℃ |
Number of Control Axes | 2-6 |
Driving Motor | Servo motot |
Available Plasma Power | Hypertherm, Thermadyne, Kjellberg ,TAYOR LGK |
Cutting precision implementation of standards | According to international standards ISO9013-2002 and ISO8206-1991 |
Cutting Length Accuracy | ±1.8mm |
Other Data | |
Operation language | English or Chinese |
Power voltage | 380V |
Frequency | 50HZ ±2% |
Detailed pictures for your reference
Sample
shop drawing
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
