Home > Products > Machining center and Engraving and milling machine > High quality vertical machining center low price for sale XH716

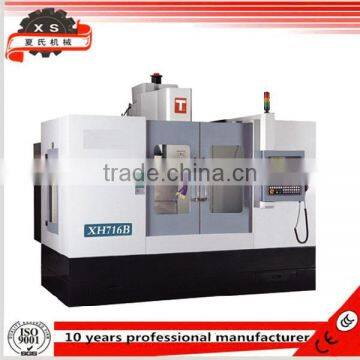

High quality vertical machining center low price for sale XH716
- 30 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
special discount cnc 3 axis vertical machining center for sale XH716
-
Low Price 3 Axis CNC Milling Machine XH716 Vertical Machining Center from China Supplier
-
High quality CH7525 cnc manual lathe machine CNC turning center with low price
-
High quality CH7525 china cnc lathe machine metal CNC turning center with cheap price
-
Automatic cnc turning center/lathe machine CH7525 For Sale
-
High quality metal lathe,CNC turning center with low price,cnc lathe machine CH7525
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Guangxi, China | Brand Name | Crystal | |
| Model Number | XH716 | Voltage | 220V/380V | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 2508x2900x2700mm | |
| Weight | 5350kg | Certification | ISO CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Machine tools Uses
This machine is suitable for machining and mold making in the field of vertical machining centers, and is able to adapt from roughing to finishing machining requirements, with high precision and high efficiency.
Feature
1.Fuselage and the main components are high-strength cast ironmetallographic structure stability ,so it can ensure long-term stability of the machine used;
2.Pre-stretched precision ball screw drive;
3.High speed, high-precision, high rigidity of spindle unit; Floating tools clamping system.;
4.Designing with oil and water separeted.
5. Interval auto-lubricating.
6.Full splash guard
Main specification
type | unit |
| |
|
| XH716 | |
X-axis travel | mm | 1000 | |
Y-axis travel | mm | 600 | |
Z-axis travel | mm | 520 | |
Spindle nose to table | mm | 150-650 | |
Spindle center to column guide-way face | mm | 655 | |
High speed feeding of X,Y axis | mm/min | 15000 | |
High speed feeding of Z axis | mm/min | 12000 | |
Feeding speed | mm/min | 1-5000 | |
Table size | mm | 600×1300 | |
Max.loading capacity of table | kg | 450 | |
T-slot NO/width/distance of table |
| 5/18/125 | |
Max.spindle speed | r/min | 8000 | |
Main motor power | kw | 7.5 | |
Spindle nose taper |
| BT40 | |
Magazine capacity | A | 16 | |
Magazine type |
| Turret-type | |
Max.diameter of tools | mm | Φ130 | |
Max.length of tools | mm | 300 | |
Max.weight of tools | kg | 6 | |
Air pressure Mpa | mpa | 0.6 | |
Machine weight | kg | 5350 | |
Overall dimendsion | mm | 2508×2900 ×2700 | |
Detailed pictures for your reference
Other types machining center
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
