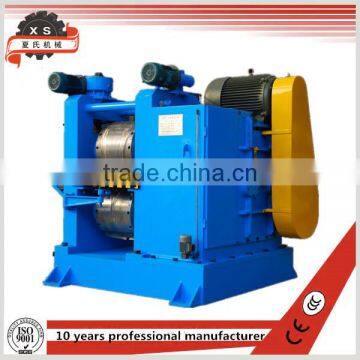

Cross wedge rolling machine D1200
- Shenzhen
- T/T Credit Card
You May Like
-
CB45 China CNC lathe machine price
-
C6180A universal conventional horizontal lathe machine in a low price
-
Special discount for lathe and machine center etc.CK7516 series CNC lathe machine for sale
-
C61100 Series horizontal lathe machine for sale
-
universal lathe machine CN6250B
-
Lathe Bench CZ1340A Mini Bench Lathe For Sale
Product Details
| Place of Origin | Guangxi, China | Brand Name | Xiashi | |
| Model Number | D1200 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features and Specifications for your reference
1.Center distance between two roller
Nominal centre distance mm 1250
maximum distance between centers mm 1290
2.Mould dimensions
outer diameter mm 1200
inner diameter mm 1000
maximum width mm 1200
3.Dimension of roller (Diameter x Length )mm Ø1000x1200
4.Semi-finished product
Max.Length mm 900
Max.diameter mm Φ130
section shrinkage % 75%
The normal temperature of rolling °C 1050-1150
The lowest temperature °C 1000
5.Adjusting parameters of roll
Adjustment amount of top roll ±40mm
Axial adjustment of bottom roll 10mm
Phase adjustment of bottom roll 7°
6.Revolution of roller r/min 5
7.Main motor
Model Y355M1-6
Power KW 160
Rotating speed r/min 980
8.Driving system
Wheel gear lubrication Enclosed gear oil as a lubricant
ratio of gear 120:1
9.Downsystem
Press motor 2.2KW-8(2 sets)
Rotating speed 720 r/min
pressingspeed 90mm/min
