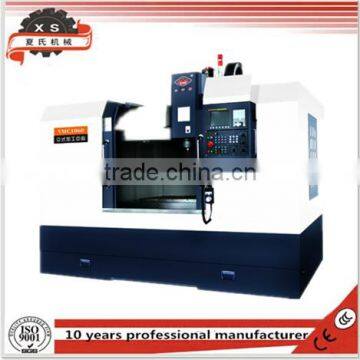

VMC1060 Hign precision CNC vertical machining center
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
VMC850 cnc machine center for mold making, vertical machining center
-
VMC(VC)610 Vertical machining center (hard track)
-
CNC Gantry-type Machining Center XH2412
-
VMC850L vertical machine center
-
Dependable Performance VMCL850 cnc vertical machine center lathe machine For Sale
-
VMC1100B hard track vertical machining center
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Guangxi, China | Brand Name | XiaShi | |
| Model Number | VMC1060 | Voltage | 380V/50Hz | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 3300x2700x3000mm | |
| Weight | 8500kg | Certification | CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Worktable:
Worktable Size 600×1300mm
T-slots(N×W) 5×18
T-slots distance 120mm
Travel:
X 1000mm
Y 600mm
Z 20mm
Process range:
Distance from spindle center to vertical guide way 655mm
Distance from spindle surface to worktable 130-750mm
Machine size:
L×W×H 3300×2700×3000mm
Weight:
Bearing load of worktable 1000kg
Machine weight 8500kg
Spindle:
Spindle taper hole BT40
Spindle power 7.5/11kw
Max.Spindle speed 8000rpm
Feed:
Max.Feed Speed 6000mm/min
Rapid feed speed(X/Y/Z) 15/15/12m/min
Position accuracy:
Position accuracy(X,Y,Z) ±0.012mm
Re-positioning accuracy(X,Y,Z) ±0.008mm
