PVC/ CPVC/ HT-CPVC Compact Ball Valves DIN
- Shanghai/Ningbo
- T/T
You May Like
-
PVC/ CPVC/ PP/ PVDF Electric Actuated True Union Ball Valves ANSI
-
PVC/ CPVC/ HT-CPVC Compact Ball Valves JIS
-
PVC/ CPVC/ HT-CPVC Compact Ball Valves ANSI
-
UPVC True Union Ball Valves ASTM SCH 80 / ASTM F441 / ASTM F439
-
PPR Gate Valves DIN/PPR Rotary Valve
-
PPR Stop Valve DIN 8077 /8078/PPR Common Valve
Product Details
| Brand Name | TU |
Product Description
PVC/CPVC/HT-CPVC Compact ball valves DIN advantages:
1. Enhanced hermeticity
2. Smooth opening and closing thanks for a lower torque
3. Replaceable ergonomic handle
4. 100% pure virgin material, CaCO3 free (Chalk)
5. UV resistant powder added
6. 100% pressure testing before leaving the factory
7. Easy differentiation from fake SANKING Ball Valves and poor quality imitation
8. Material: PVC, CPVC, HT-CPVC
9. Size: 1/2'' - 4''; 20mm - 110mm ; DN15 - DN100
10. Joint End: Socket, Threaded NPT, BSPF and PT
PVC/CPVC/HT-CPVC Compact ball valves DIN description:
1. Material: PVC, CPVC, HT-CPVC
2. Size: 1/2'' - 4''; 20mm - 110mm ; DN15 - DN100
3. Joint End: Socket, Threaded NPT, BSPF and PT
4. Standard: ANSI, DIN, JIS, CNS
5. Working Pressure: 150 PSI
6. Operating Temperature: PVC(0~55℃); CPVC & HT-CPVC(0~95℃)
7. Handle color : red, blue Valve body color : PVC(dark gray/white), CPVC(light gray), HT-CPVC (light yellow)

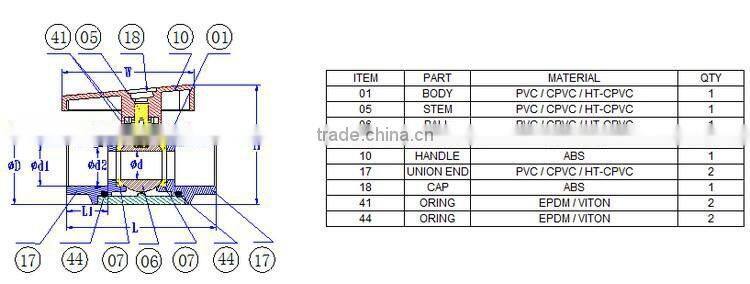

PVC/CPVC/HT-CPVC Compact ball valves DIN specifications:
| SIZE | d | d1 | d2 | D | L | L1 | H | W | operating torque (N-M) |
| 1/2"(15) | 15 | 20.30 | 20.10 | 41.00 | 79.00 | 22.00 | 63.00 | 70.00 | 2.00 |
| 3/4"(20) | 20 | 25.30 | 25.10 | 49.20 | 106.40 | 31.50 | 75.00 | 80.00 | 2.50 |
| 1"(25) | 25 | 32.30 | 32.10 | 56.00 | 116.00 | 35.00 | 85.00 | 90.00 | 4.00 |
| 1 1/4"(32) | 32 | 40.30 | 40.10 | 65.50 | 125.70 | 35.00 | 100.50 | 100.00 | 4.50 |
| 1 1/2"(40) | 40 | 50.30 | 50.10 | 78.00 | 136.50 | 37.00 | 120.00 | 130.00 | 6.00 |
| 2"(50) | 50 | 63.30 | 60.10 | 95.00 | 149.30 | 38.00 | 135.50 | 130.00 | 6.50 |
| 2 1/2"(65) | 65 | 75.30 | 75.10 | 119.00 | 197.50 | 53.00 | 158.80 | 150.00 | 8.00 |
| 3"(80) | 75 | 90.30 | 90.10 | 135.00 | 207.60 | 51.00 | 191.00 | 200.00 | 12.00 |
| 4"(100) | 97 | 110.40 | 110.1 | 174.00 | 254.00 | 60.00 | 237.00 | 260.00 | 16.00 |
