Industrial CPVC Flanged Diaphragm Valves JIS/JIS Diaphragm Valve
Negotiable
/ Carton
5 Cartons(Min. Order)
- Shanghai/Ningbo
- T/T
You May Like
-
Union Type Diaphragm Valves DIN PN16 (ANSI SCH 80)/UPVC Union Type Diaphragm Valves
-
UPVC/ CPVC Flanged Single Union Foot Valves ANSI/dark Gray Foot Valve
-
UPVC Spring Foot Valves JIS ANSI DIN/UPVC Spring Foot Valves
-
Industrial CPVC Bottom Valves JIS/CPVC Bottom Valves
-
UPVC Single Union Bottom Valves DIN PN10/union Bottom Valves
-
UPVC Swinging Bottom Valves DIN PN10/DIN PN10 Bottom Valves
Product Details
| Material | Other, Plastic, CPVC | Type | Other, Valves | |
| Place of Origin | Zhejiang, China | Model Number | JIS | |
| Brand Name | TU |
Product Description
Specifications
Name: Industrial CPVC Flanged diaphragm valves JISMaterial: CPVC
Standard: JIS
Size: 15~450

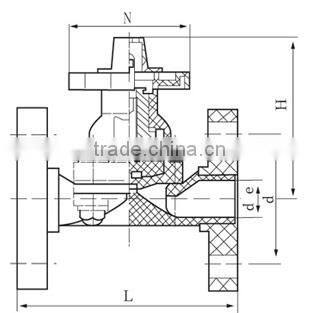

| Nominal Diameter | Overall Dimensions(mm) | ||||
| DN | de | L | d | H | N |
| 15 | 20 | 110 | 65 | 85 | 56 |
| 20 | 25 | 116 | 75 | 98 | 68 |
| 25 | 32 | 130 | 85 | 140 | 80 |
| 32 | 40 | 162 | 100 | 144 | 100 |
| 40 | 50 | 197 | 110 | 174 | 119 |
| 50 | 63 | 230 | 125 | 194 | 140 |
| 65 | 75 | 295 | 145 | 275 | 158 |
| 80 | 90 | 360 | 160 | 340 | 215 |
| 100 | 110 | 395 | 180 | 420 | 270 |
| 125 | 140 | 410 | 210 | 405 | 320 |
| 150 | 160 | 558 | 240 | 548 | 375 |
