UPVC Economy Swing Foot Valves DIN JIS ANSI/ Economy Swing Foot Valves
Negotiable
/ Carton
5 Cartons(Min. Order)
- Shanghai/Ningbo
- T/T
You May Like
-
UPVC/ CPVC Foot Valves DIN/DIN Foot Valve
-
UPVC / CPVC Flanged True Union Foot Valves DIN/ Flanged True Union Foot Valves
-
UPVC/ CPVC/ PP Flanged Check Valves DIN/ Flanged Check Valves DIN
-
UPVC Swinging Check Valves DIN PN10/ Swinging Check Valves
-
Industrial CPVC Swing Check Valves JIS/CPVC Industrial Check Valves
-
Membrane Shell
Product Details
| Material | Other, Plastic, UPVC | Type | Other, Valves | |
| Place of Origin | Zhejiang, China | Model Number | DIN JIS ANSI | |
| Brand Name | TU |
Product Description
Specifications
Name: UPVC Economy Swing Foot Valves DIN JIS ANSIMaterial: UPVC
Standard: DIN JIS ANSI
Size : 3"~4"
| Size | Standard | Material | Gasket | O-ring | End type |
| 3"~4" | ANSI, JIS, DIN | PVC | EPDM, FPM | EPDM, FPM | Socket,Threaded,Flanged |

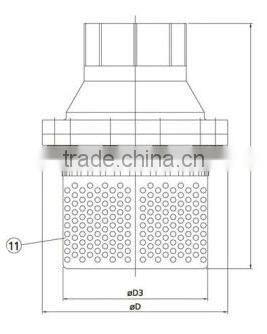

| SIZE | 3" | 4" | |
| (80mm) | (100mm) | ||
| JIS | ΦD1 | 150 | 175 |
| Φd1 | 89.6 | 114.7 | |
| Φd2 | 88.83 | 113.98 | |
| I | 47.63 | 57.15 | |
| ANSI | ΦD1 | 152 | 191 |
| Φd1 | 89.31 | 114.76 | |
| Φd2 | 88.7 | 114.07 | |
| I | 47.63 | 57.15 | |
| DIN | Φd1 | 90.3 | 110.4 |
| Φd2 | 90.1 | 110.1 | |
| I | 51 | 61 | |
| thd./in | NPT | 8 | 8 |
| BSPT | 11 | 11 | |
| ΦD | 196 | 210 | |
| ΦD2 | 185 | 210 | |
| ΦD3 | 153 | 153 | |
| Φd3 | 108 | 133 | |
| L1 | 221 | 271 | |
| L2 | 260 | 300 | |
| L3 | 275 | 320 | |
Do not recommend to service or test with compressed air or gases.
With arrow to mark the direction of flow, and to be installed according to flow direction.
Vertical installation: the arrow mark should be installed upward.
Horizontal installation: the arrow mark should be shown on top to indicate the flow direction.
