Home > Products > Plastic Valves > PVC CPVC PVDF PP Diaphragm Valves DIN ANSI/ PP Diaphragm Valves
PVC CPVC PVDF PP Diaphragm Valves DIN ANSI/ PP Diaphragm Valves
Negotiable
/ Carton
5 Cartons(Min.Order)
- Shanghai/Ningbo
- T/T
You May Like
-
UPVC CPVC PVDF PP Diaphragm flanged valves ANSI DIN JIS/regulating valve
-
ABS Flange diaphragm valves DIN (Civil)/ABS Flange diaphragm valves
-
Industrial CPVC Flanged diaphragm valves JIS/JIS diaphragm valve
-
Union type diaphragm valves DIN PN16 (ANSI SCH 80)/UPVC Union type diaphragm valves
-
UPVC/ CPVC Flanged single union foot valves ANSI/dark gray foot valve
-
UPVC Spring Foot Valves JIS ANSI DIN/UPVC Spring Foot Valves
Product Details
| Material | Other, Plastic, PVC CPVC PVDF PP | Type | Other, Valves | |
| Place of Origin | Zhejiang, China | Model Number | DIN,ANSI | |
| Brand Name | TU |
Product Description
Specifications
Name: PVC CPVC PVDF PP Diaphragm Valves DIN ANSIMaterial: PVC CPVC PVDF PP
Standard: DIN ANSI
Size : 1/2''~2"

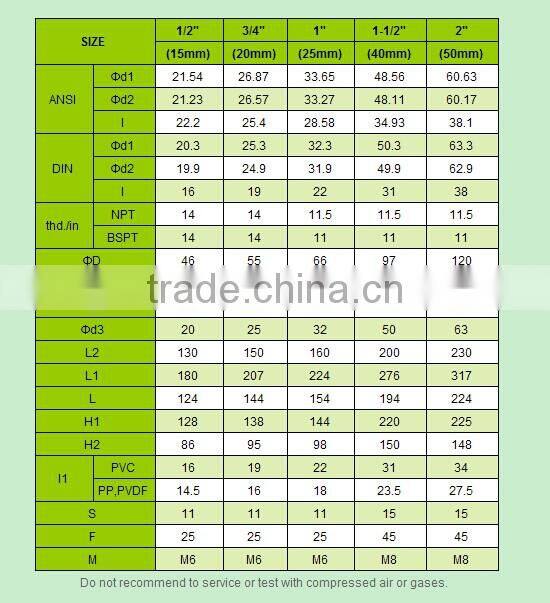

| Size | Standard | Material | Gasket | O-ring | Diaphragm | End type | Bolt |
| 1/2"~2" | DIN | PVC | EPDM | NBR | EPDM, FPM, PTFE | Spigot | SUS 304 / 316 |
| 1/2"~2" | DIN | CPVC | EPDM | NBR | EPDM, FPM, PTFE | Spigot | SUS 304 / 316 |
| 1/2"~2" | DIN | PVDF | EPDM | NBR | EPDM, FPM, PTFE | Spigot | SUS 304 / 316 |
| 1/2"~2" | DIN | PP | EPDM | NBR | EPDM, FPM, PTFE | Spigot | SUS 304 / 316 |
| 1/2"~2" | ANSI, JIS, DIN | PVC | EPDM | NBR / EPDM, FPM | EPDM, FPM, PTFE | Socket, Threaded | SUS 304 / 316 |
| 1/2"~2" | ANSI, JIS, DIN | CPVC | EPDM | NBR / EPDM, FPM | EPDM, FPM, PTFE | Socket, Threaded | SUS 304 / 316 |
| 1/2"~2" | ANSI, JIS, DIN | PVDF | EPDM | NBR / EPDM, FPM | EPDM, FPM, PTFE | Socket, Threaded | SUS 304 / 316 |
| 1/2"~2" | ANSI, JIS, DIN | PP | EPDM | NBR / EPDM, FPM | EPDM, FPM, PTFE | Socket, Threaded | SUS 304 / 316 |

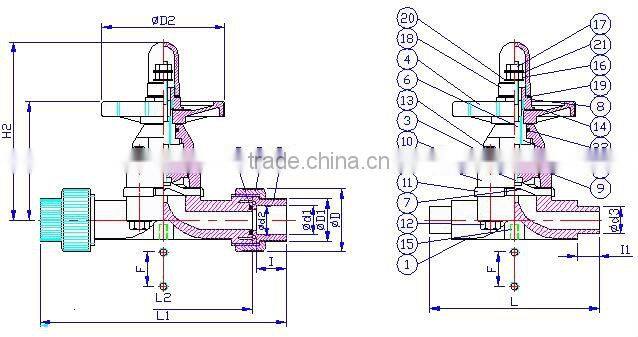

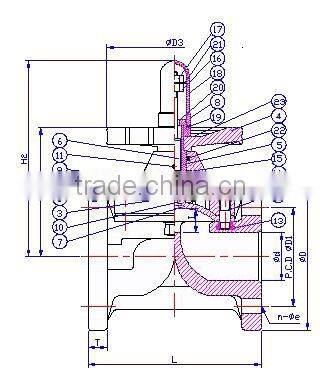

| NO. | PART | MATERIAL | Q'TY |
| 1 | BODY | UPVC,CPVC,PP,PVDF | 1 |
| 2 | BONNET | UPVC,CPVC,PP,PVDF,PP+GF | 1 |
| 3 | COMPRESSOR | FC,SUS | 1 |
| 4 | HANDWHEEL | PP | 1 |
| 5 | SLEEVE | C3602 | 1 |
| 6 | STEM | C3602 | 1 |
| 7 | DIAPHRAGM | EPDM,FPM,PTFE | 1 |
| 8 | CAP | UPVC,CPVC,PVDF,PP+GF | 1 |
| 9 | COMPRESSOR PIN | SUS 304 | 1 |
| 10 | INSERTED METAL | C3602,SUS304 | 1 |
| 11 | RUBBER LINER | SUS 304 | 1 |
| 12 | BOLTS&WASHERS | SUS 304 | 4 |
| 13 | NUTS&WASHERS | SUS 304 | 4 |
| 14 | NAME PLATE | PVC | 1 |
| 15 | BOTTOM NUT | C3604 | 2 |
| 16 | STOPPER | SUS 304 | 1 |
| 17 | SET NUT | SUS 304 | 1 |
| 18 | GAUGE CIVER | AS | 1 |
| 19 | SHEET GASKET | EPDM | 1 |
| 20 | SHEET RING | SUS 304 | 1 |
| 21 | INDICATIVE WASHER | ABS | 1 |
| 22 | O-RING | NBR | 1 |
| 23 | O-RING | EPDM,FPM | 2 |
| 24 | END CONNECTOR | UPVC,CPVC,PP.PVDF | 2 |
| 25 | UNION NUT | UPVC,CPVC,PP.PVDF | 2 |
Pressure rating: 100 PSI
Smooth operation with clear indication of opening / closind through the gauge cover.
Low maintenance cost with replaceable diaphragm and long service life
Adjustable stopper can avoid over tightening
Caution! The valve is completely closed when handwheel can't turn more with normal torque,
but it will cause the unrecoverable divulsion of diaphragm if the handwheel is continuously forced to turn in such above condition!
