Home > Products > Plastic Valves > PVC UH Butterfly Valve (Without Flange)
PVC UH Butterfly Valve (Without Flange)
US$ 300 - 500
/ Carton
5 Cartons(Min. Order)
- Shanghai/Ningbo
- T/T
You May Like
-
PVC UH True Ball Valve With Electric Actuator One Side Female Threaded (24 V DC) Emergency Manual Control
-
PVC UH True Ball Valve For Acid , With Electric Actuator (110-260 V AC) Emergency Manual Control
-
PVC UH True Ball Valve For Acid, With Electric Actuator(24V DC)Emergency Manual Control
-
U-PVC Actuation Adaptor True Union Ball Valves For Acid (Both Side Flanged Ball Valve)
-
U-PVC Actuation Adaptor True Union Ball Valves (One Side Female Threaded)
-
U-PVC Actuation Adaptor True Union Ball Valves For Acid
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TU/VAV |
Product Description

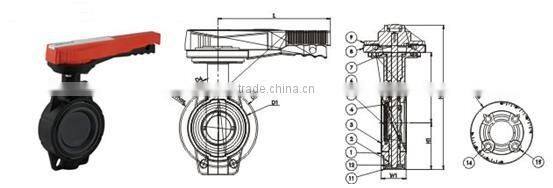

NO. | Part | Material | Adet/QTY | NO. | Part | Material | Adet/QTY |
1 | Body | PP-GF | 1 | 9 | Handle | ABS | 1 |
2 | Stem | PVC-UH | 2 | 10 | Lever Catch | PP-GF | 1 |
3 | Inner Body | PVC-UH | 1 | 11 | Cap | PP-GF | 1 |
4 | Inner Seal | EPDM/FPM | 1 | 12 | Washer | Stainless steel | 1 |
5 | Disc | PVC-UH | 1 | 13 | lever Clip | PVC-UH | 1 |
6 | Steal Shaft | Stainless steel | 1 | 14 | Screw | Stainless steel | 4 |
7 | End Stop | PP-GF | 1 | 15 | Nut | Stainless steel | 4 |
8 | Index Plate | PP-GF | 1 |
|
|
|
|
