U-PVC Single Union Ball Valve ( Solvent Cement Socketed )
US$ 1 - 1,000
/ Carton
5 Cartons(Min. Order)
- Shanghai/Ningbo
- T/T
You May Like
-
Selenoid Valf 1/4"-5/2" Namur Valf, 12Vac/Dc.......220Vac
-
U-PVC Pneumatic Actuation Double Acting True Union Ball Valves For Acid (Both Side Female Threaded Ball Valve)
-
U-PVC Pneumatic Actuation Double Acting True Union Ball Valves For Acid (Two Side Female Threaded)
-
PVC UH True Ball Valve For Acid, With Electric Actuator Two Side Flange Adaptor (110-260V AC) Emergency Manual Control
-
PVC UH True Ball Valve With Electric Actuator Two Side Flange Adaptor (24 V DC) Emergency Manual Control
-
PVC UH True Ball Valve For Acid, With Electric Actuator One Side Female Threaded (110-260 V AC) Emergency Manual Control
Product Details
| Material | Other, UPVC, UPVC | Technics | Casting | |
| Type | Other, Ball Valves | Place of Origin | Kocaeli, Turkey | |
| Model Number | PN 16 | Brand Name | TU | |
| Shape | Equal |
Product Description

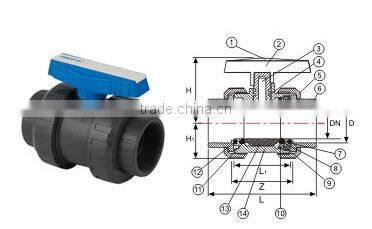

NO. | Part | Material | Adet/QTY |
1 | Handle Cover | U-PVC | 1 |
2 | Handle | ABS | 1 |
3 | Step | U-PVC | 1 |
4 | Stem O-Ring | EPDM-FPM | 2 |
5 | Union Nut | U-PVC | 1 |
6 | End Connector | U-PVC | 1 |
7 | Body O-Ring | EPDM-FPM | 1 |
8 | Seat Carrier | U-PVC | 1 |
9 | Union Bush | U-PVC | 1 |
10 | Carrier O-Ring | EPDM-FPM | 1 |
11 | Ball Seals | HDPE-FPM | 2 |
12 | Backing Seals | EPDM-FPM | 2 |
13 | Ball | U-PVC | 1 |
14 | Body | U-PVC | 1 |
Dia | BSP(Inch) | PN | DN(mm) | Z(mm) | L1(mm) | L(mm) | H(mm) | H1(mm) | Kg/Pcs | Box/Pcs | EPDM O-RING CODE |
20 | 1/2'' | 16 | 15 | 38 | 16 | 78 | 47 | 27 | 0.106 | 55 | 232 00 020 2 |
25 | 3/4'' | 16 | 20 | 42 | 19 | 87 | 52 | 31 | 0.141 | 56 | 232 00 025 2 |
32 | 1'' | 16 | 25 | 50 | 22 | 100 | 63 | 33 | 0.193 | 60 | 232 00 032 2 |
40 | 1 1/4'' | 16 | 32 | 72 | 17 | 114 | 66 | 42 | 0.308 | 30 | 232 00 040 2 |
50 | 1 1/2'' | 16 | 40 | 91 | 19 | 146 | 89 | 41 | 0.508 | 24 | 232 00 050 2 |
63 | 2'' | 16 | 50 | 102 | 28 | 160 | 100 | 58 | 0.91 | 12 | 232 00 063 2 |
75 | 2 1/2'' | 16 | 65 | 119 | 47 | 195 | 110 | 65 | 1.124 | 9 | 232 00 075 2 |
90 | 3'' | 16 | 80 | 125 | 60 | 228 | 137 | 89 |
| 4 | 232 00 090 2 |
110 | 4'' | 16 | 100 | 154 | 67 | 275 | 150 | 105 |
| 2 | 232 00 110 2 |
