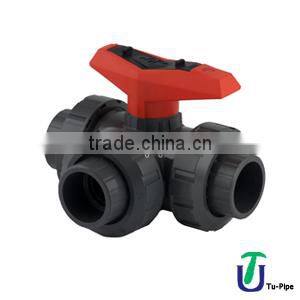

U-PVC 3 Way Ball Valves (T Port)
- Shanghai/Ningbo
- T/T
You May Like
-
U-PVC True Uinon Ball Valve For Acid Position Regulated One Side Female Threaded
-
U-PVC True Uinon Ball Valve Position Regulated For Water Two Side Female Threaded
-
U-PVC True Uinon Ball Valve For Acid Position Regulated
-
U-PVC True Uinon Ball Valve Position Regulated For Water One Side Female Threaded
-
U-PVC True Uinon Ball Valve Position Regulated For Water
-
U-PVC True Union Ball Valves Brass One Side Female One Side Male Threaded
Product Details
| Material | Other, UPVC, UPVC | Technics | Casting | |
| Type | Other, Ball Valves | Place of Origin | Kocaeli, Turkey | |
| Model Number | PN 10 | Brand Name | TU | |
| Shape | Equal |
Product Description

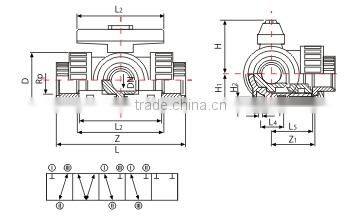

D (mm) | Code | D (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | L5 (mm) | L6 (mm) | L7 (mm) | H (mm) | Kg/Pcs | Box/Pcs | PN |
20 | 210 00 020 4 | 45 | 134 | 78 | 72 | 139 | 25 | 36 | 67 | 70 | 50 | 0.119 | 1 | 10 |
25 | 210 00 025 4 | 53 | 156 | 92 | 86 | 161 | 25 | 43 | 78 | 81 | 60 | 0.37 | 1 | 10 |
32 | 210 00 032 4 | 65 | 172 | 100 | 96 | 177 | 25 | 48 | 86 | 89 | 68 | 0.504 | 1 | 10 |
40 | 210 00 040 4 | 78 | 202 | 110 | 116 | 207 | 45 | 58 | 101 | 104 | 79 | 0.838 | 1 | 10 |
50 | 210 00 050 4 | 92 | 238 | 120 | 137 | 242 | 45 | 69 | 119 | 121 | 90 | 1.359 | 1 | 10 |
63 | 210 00 063 4 | 116 | 290 | 146 | 179 | 294 | 45 | 90 | 145 | 147 | 109 | 2.622 | 1 | 10 |
T-Port ball
Ball seal PTFA
For sasy installation and removal
Pneumatic or electric actuator available separately
Angle of operation 90°,without turn limiter
O-Ring:EPDM
