YP-S59 Ultrasonic Sonochemistry System

The ultrasonic sonochemistry YP-S59 (20kHz, 2000W) combines high processing power with flexibility. It is suitable for process development, optimization and for production processes. This includes emulsifying, dispersing & sonochemistry, lysis & extraction or homogenizing, separation and extraction, synthesis and degradation, bio-diesel production, Governance of micro-organisms, the degradation of toxic organic pollutants, deal with biodegradable, biological cells crushed, and Dispersed and cohesion, and so on .

• Enhancement of Chemical Reaction

Cavitation produce local high temperature and high pressure, strong shock wave and micro jet.It provides a new physical and chemical environment for chemical reaction which is difficult to achieve in the conventional environment .

• Ultrasonic Catalytic Reaction

1.High pressure and high temperature conditions conducive to the reactant cracking free radical and two price of carbon, the formation of more reaction active species.

2.Shock wave and micro jet on the solid surface (as catalyst) with the desorption and cleaning effect, can remove the surface reaction products or intermediates and catalyst layer surface passivation.

3.Shock wave may damage the reactant structure.

4.Dispersion of the reaction system.

5.Ultrasonic cavitation metal surface, the shock wave leads to the formation of metal lattice deformation and internal strain regions, improving the chemical reactivity of metal.

6.The solvent into solid, produce inclusion reaction.

7.To improve the catalyst dispersion.

• Ultrasonic Polymer Chemistry

Ultrasonic can degrade macromolecules, especially the degradation effect of processing high molecular weight polyme.Like  Cellulose, Gelatin,Rubber, Protein and so on.

• Ultrasonic Biodiesel Processor

The point of biodiesel processing is catalytic ester and fatty acid esters of glycerol and methanol low carbon alcohol exchange reaction.The function of ultrasonic is strengthen the ester exchange reaction, enhancing the mixing (emulsion) effect and promote the intermolecular contact reaction. The need of high temperature (high pressure) under the conditions of the reaction at room temperature (or close to room temperature) conditions can be completed, shorten the reaction time. Ultrasonic is used not only for the ester exchange reaction, but also for the separation process, the reaction mixture.

•   Do not need to change existing production equipment and process.
•   The equipment installation simple, through the standard flange butt joint installation.
•   Focused design, high energy density.
•   The yield and efficiency can be improved obviously.
•   Reduce costs, save energy.
•   Can multiple sets of equipment used in combination.

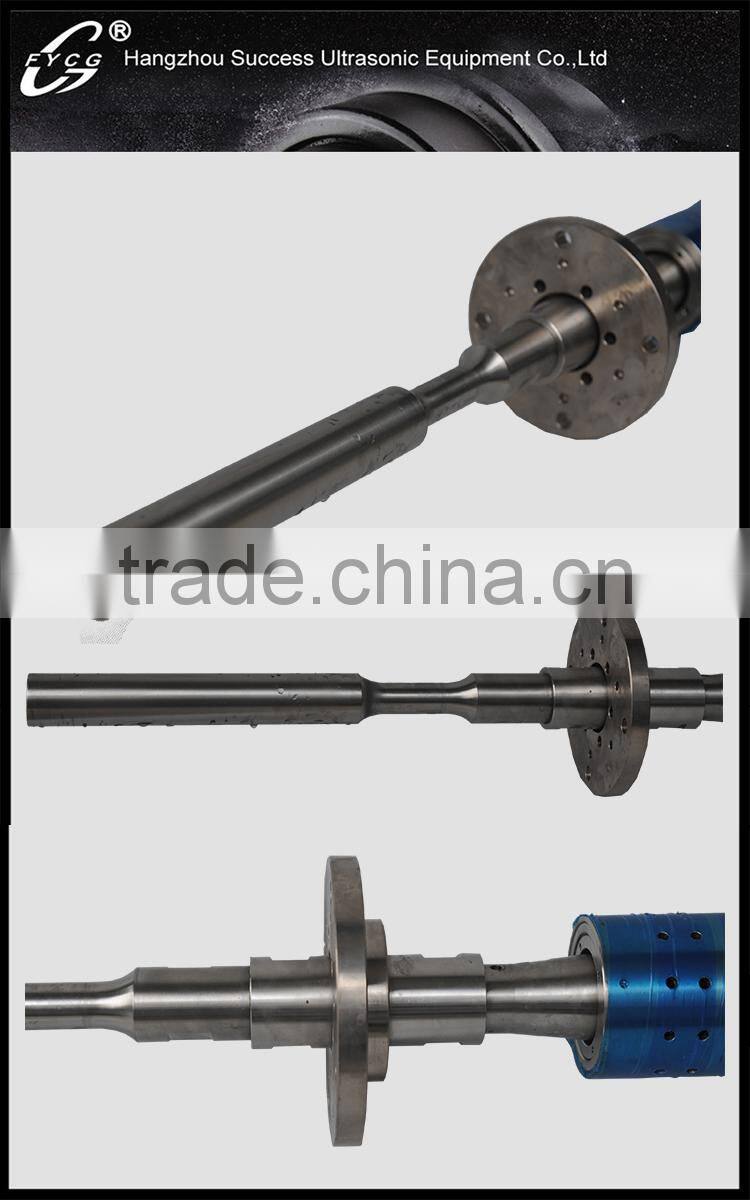

•   We can change the size of horn according to your requirement.
